HQT-4000 PVC

发布时间:2020-04-26 19:33浏览次数:

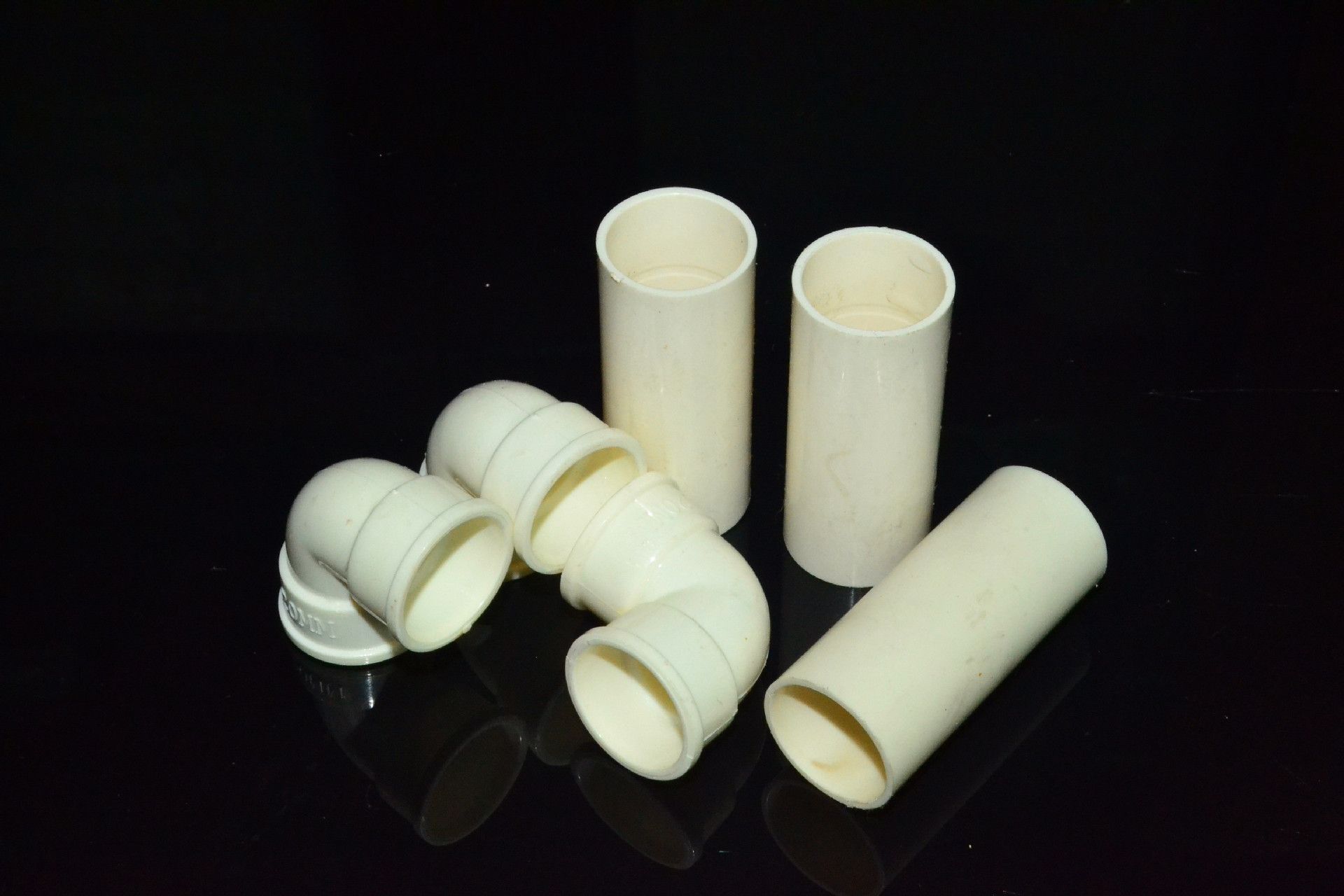

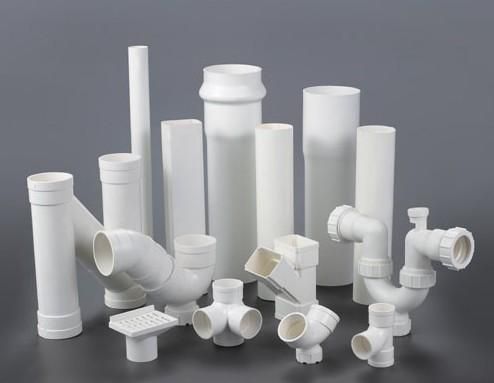

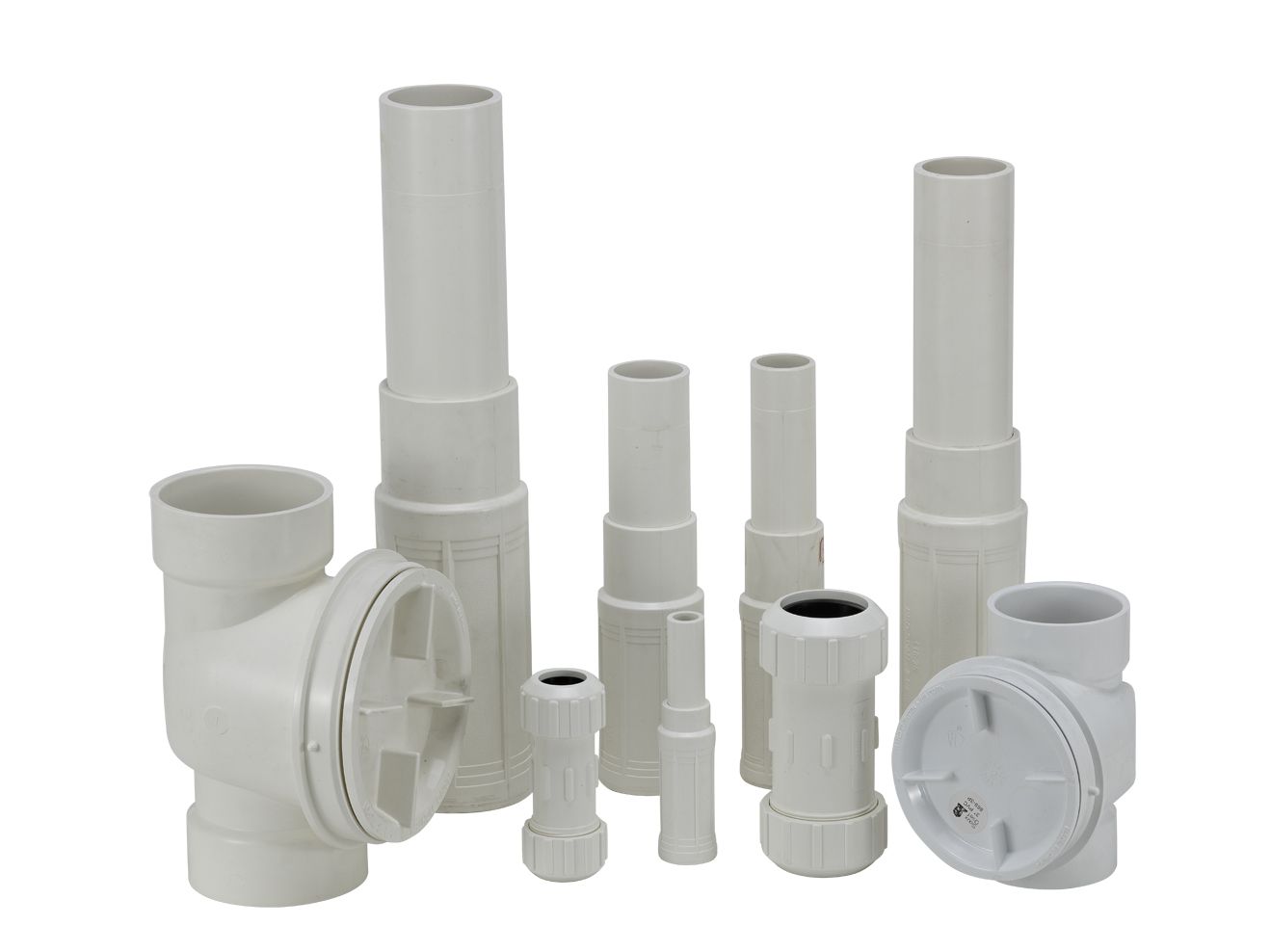

专用机系列之PVC管件专用机
——采用PVC专用的注射系统、强排式冷却装置、高硬度和防腐蚀的双合金螺杆,符合PVC、UPVC等颗粒、粉料的生产要求,保证了塑化效果和混色效果,同时避免产品过热而变色。











Item Unit HQT-400
INJECTION UNIT   A B C
Screw Diameter mm 70 75 80
Screw L/D Ratio  L/D 23 21.5 20.1
Shot Volume(Theoretical) cm3 1347 1546 1759
Injection Weight(PS) G 1226 1407 1601
Plasticizing Capacity(PS) g/s 44.9 51.4 58.7
Injection Rate g/s 324 372 423
Injection Pressure Mpa 199 173 152
Screw Speed r/min 200
CLAMPING UNIT
Clamp Tonnage KN 4000
Toggle Stroke mm 700
Space Between Tie Bars mm 720×720
Min.Max. Mould Height mm 250-780
Ejector Stroke mm 160
Ejector Tonnage KN 100
Ejector Number   13
OTHERS
System Pressure (mpa) 16
Pump Motor Power (kw) 37
Heater Power (kw) 23
Machine Dimension(L×W×H) m 7.26×1.93×2.1
Oil Tank Capacity L 902
Machine Weight Tonelada 18
