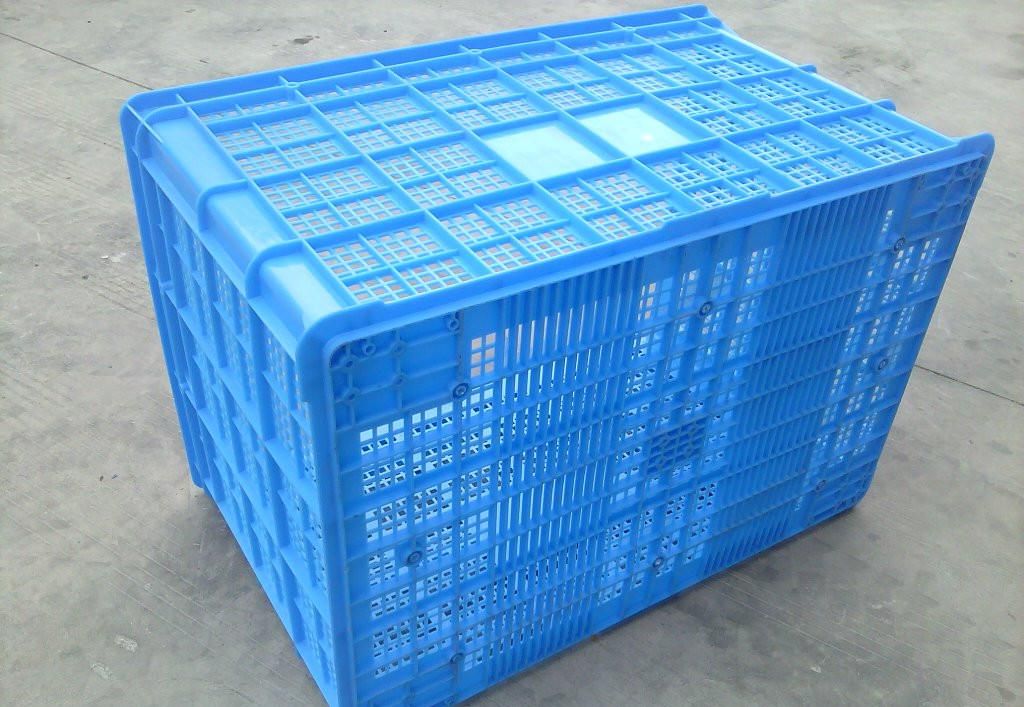

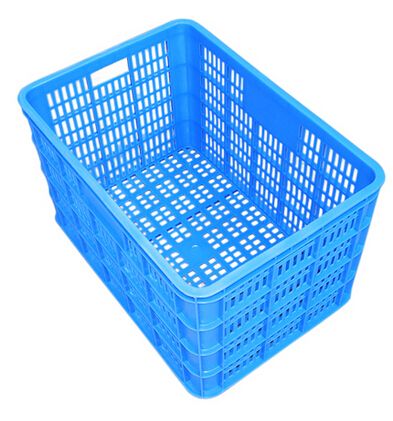

专用机系列之箱框专用机
——采用特殊设计的注射结构，配以流动性良好并注射速度快的专用螺杆，以达到吃料快并且成型周期短的生产需求。
——特殊的油路设计，增加了开模后顶出产品的联动装置，提高生产效率。
|
Item |
Unit |
HQT-530 |
|
INJECTION UNIT |
|
A |
B |
C |
|
Screw Diameter |
mm |
80 |
85 |
90 |
|
Screw L/D Ratio |
L/D |
21.3 |
20 |
18.9 |
|
Shot Volume(Theoretical) |
cm3 |
1702 |
1921 |
2481 |
|
Injection Weight(PS) |
G |
1784 |
2014 |
2258 |
|
Plasticizing Capacity(PS) |
g/s |
58.4 |
65.6 |
75.2 |
|
Injection Rate |
g/s |
401 |
453 |
507 |
|
Injection Pressure |
Mpa |
184 |
163 |
146 |
|
Screw Speed |
r/min |
120 |
|
CLAMPING UNIT |
|
|
|
Clamp Tonnage |
KN |
5300 |
|
Toggle Stroke |
mm |
820 |
|
Space Between Tie Bars |
mm |
820×820 |
|
Min.Max. Mould Height |
mm |
350-820 |
|
Ejector Stroke |
mm |
220 |
|
Ejector Tonnage |
KN |
150 |
|
Ejector Number |
|
13 |
|
OTHERS |
|
|
|
System Pressure |
（mpa） |
16 |
|
Pump Motor Power |
（kw） |
55 |
|
Heater Power |
（kw） |
29.3 |
|
Machine Dimension(L×W×H) |
m |
8.25×2.24×2.8 |
|
Oil Tank Capacity |
L |
1386 |
|
Machine Weight |
Tonelada |
22
|
