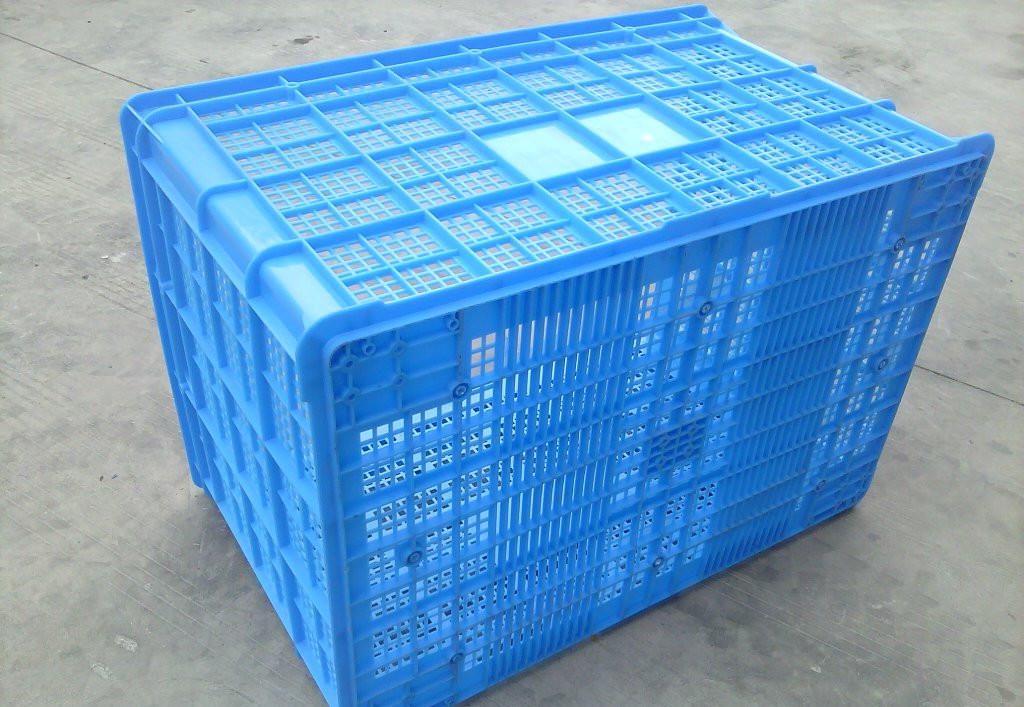

专用机系列之箱框专用机
——采用特殊设计的注射结构，配以流动性良好并注射速度快的专用螺杆，以达到吃料快并且成型周期短的生产需求。
——特殊的油路设计，增加了开模后顶出产品的联动装置，提高生产效率。
|
Item |
Unit |
HQT-400 |
|
INJECTION UNIT |
|
A |
B |
C |
|
Screw Diameter |
mm |
70 |
75 |
80 |
|
Screw L/D Ratio |
L/D |
23 |
21.5 |
20.1 |
|
Shot Volume(Theoretical) |
cm3 |
1347 |
1546 |
1759 |
|
Injection Weight(PS) |
G |
1226 |
1407 |
1601 |
|
Plasticizing Capacity(PS) |
g/s |
44.9 |
51.4 |
58.7 |
|
Injection Rate |
g/s |
324 |
372 |
423 |
|
Injection Pressure |
Mpa |
199 |
173 |
152 |
|
Screw Speed |
r/min |
200 |
|
CLAMPING UNIT |
|
|
|
Clamp Tonnage |
KN |
4000 |
|
Toggle Stroke |
mm |
700 |
|
Space Between Tie Bars |
mm |
720×720 |
|
Min.Max. Mould Height |
mm |
250-780 |
|
Ejector Stroke |
mm |
160 |
|
Ejector Tonnage |
KN |
100 |
|
Ejector Number |
|
13 |
|
OTHERS |
|
|
|
System Pressure |
（mpa） |
16 |
|
Pump Motor Power |
（kw） |
37 |
|
Heater Power |
（kw） |
23 |
|
Machine Dimension(L×W×H) |
m |
7.26×1.93×2.1 |
|
Oil Tank Capacity |
L |
902 |
|
Machine Weight |
Tonelada |
18
|
