HQT-4500 PVC

发布时间:2020-04-26 19:33浏览次数:

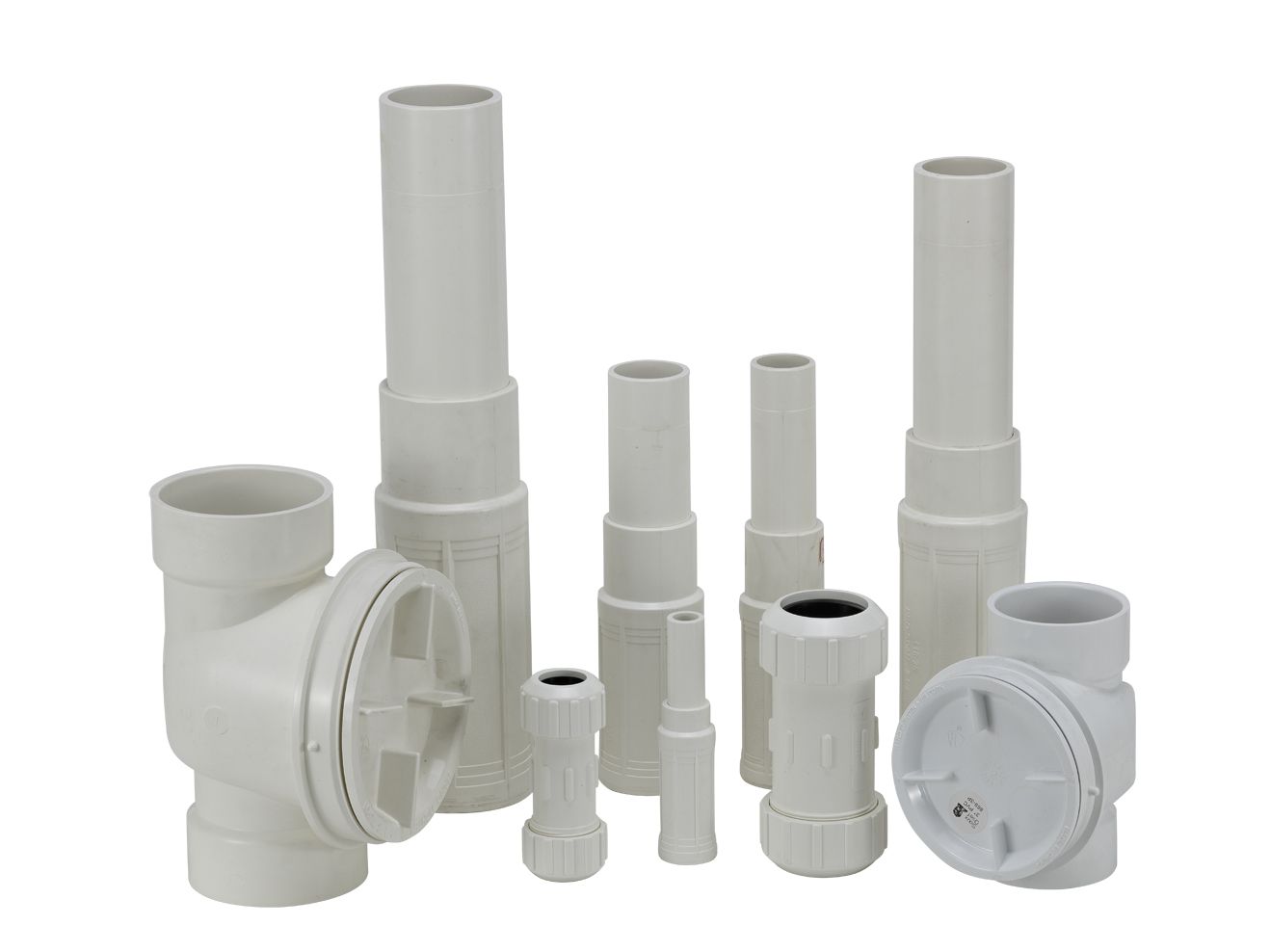

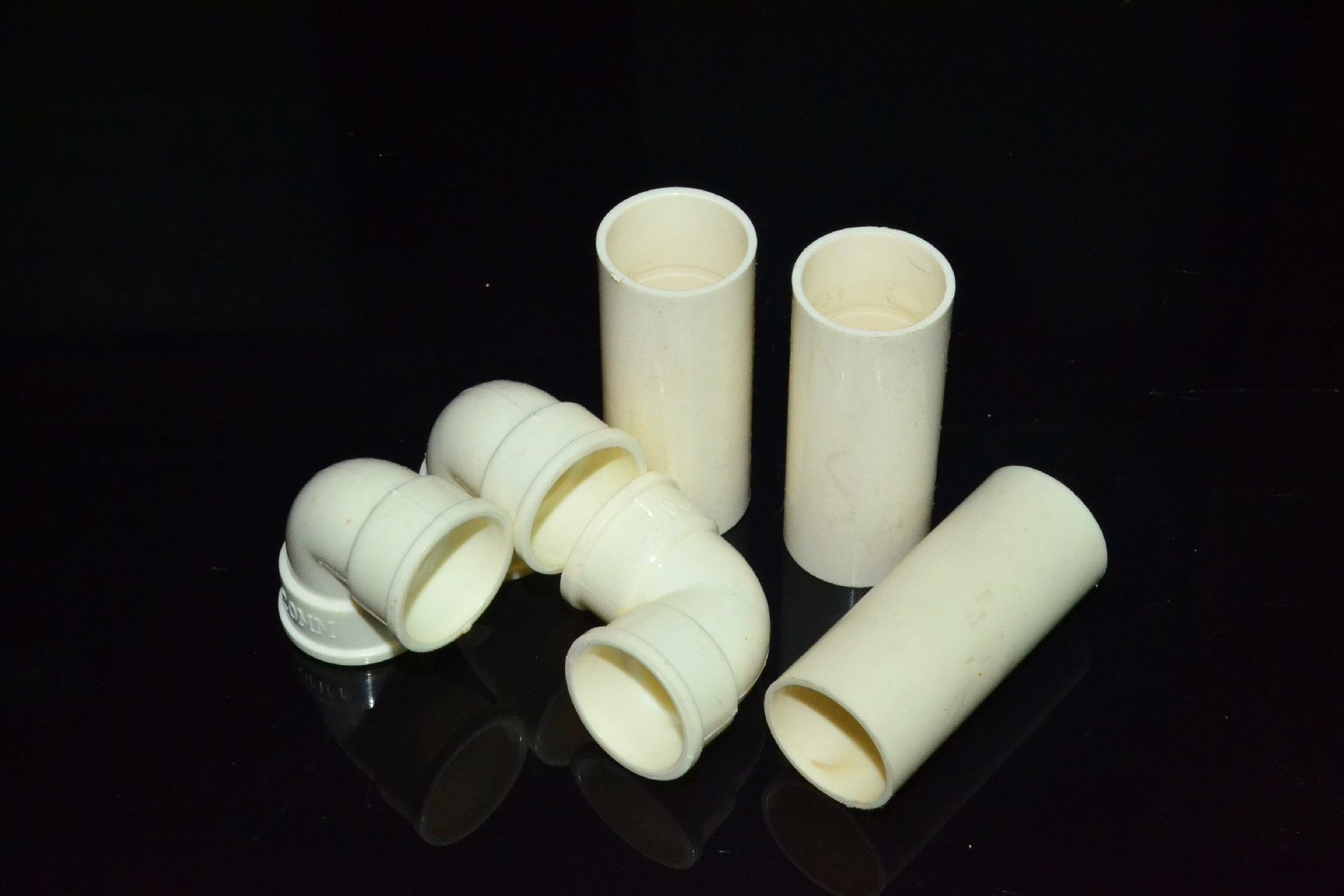

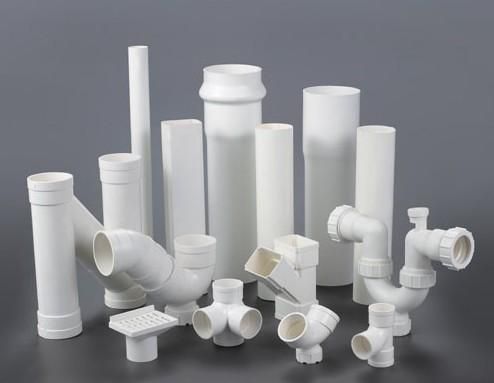

专用机系列之PVC管件专用机
——采用PVC专用的注射系统、强排式冷却装置、高硬度和防腐蚀的双合金螺杆,符合PVC、UPVC等颗粒、粉料的生产要求,保证了塑化效果和混色效果,同时避免产品过热而变色。







Item Unit HQT-450
INJECTION UNIT   A B C
Screw Diameter mm 75 80 85
Screw L/D Ratio  L/D 21.3 20 18.8
Shot Volume(Theoretical) cm3 1643 1870 2111
Injection Weight(PS) G 1496 1702 1921
Plasticizing Capacity(PS) g/s 45.0 56.2 62.3
Injection Rate g/s 394 448 506
Injection Pressure Mpa 173 152 135
Screw Speed r/min 150
CLAMPING UNIT
Clamp Tonnage KN 4500
Toggle Stroke mm 740
Space Between Tie Bars mm 780×780
Min.Max. Mould Height mm 300-780
Ejector Stroke mm 200
Ejector Tonnage KN 125
Ejector Number   13
OTHERS
System Pressure (mpa) 16
Pump Motor Power (kw) 45
Heater Power (kw) 23.6
Machine Dimension(L×W×H) m 7.79×2.2×2.75
Oil Tank Capacity L 1217
Machine Weight Tonelada 19
