HQT-3600 PVC

发布时间:2020-04-26 19:33浏览次数:

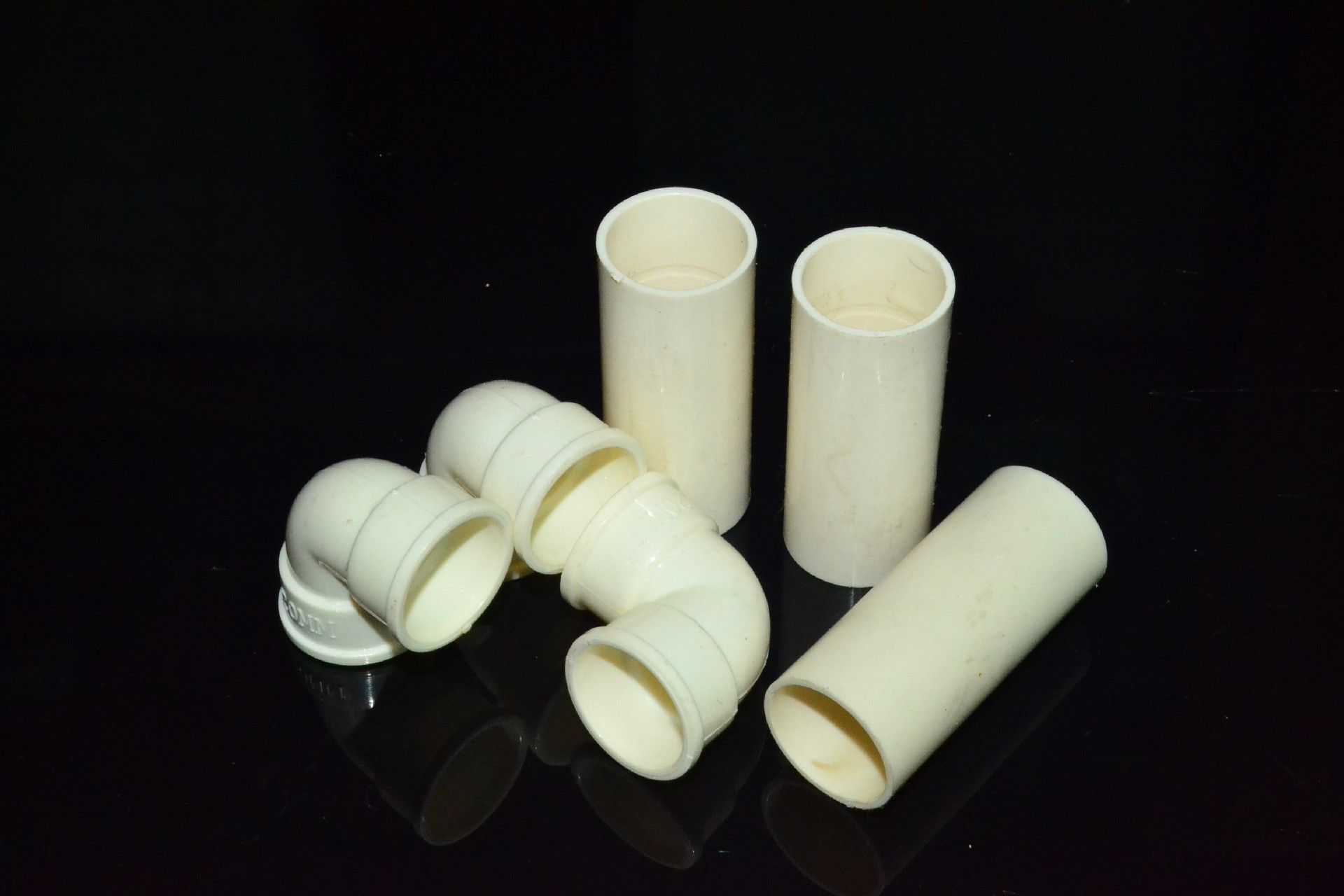

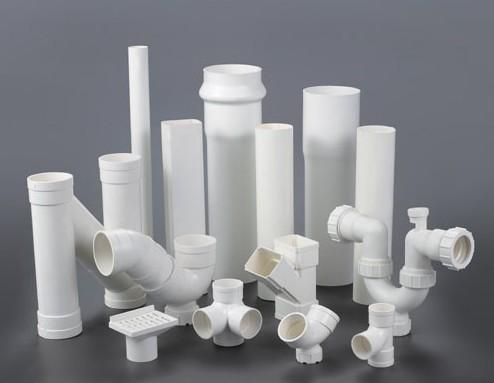

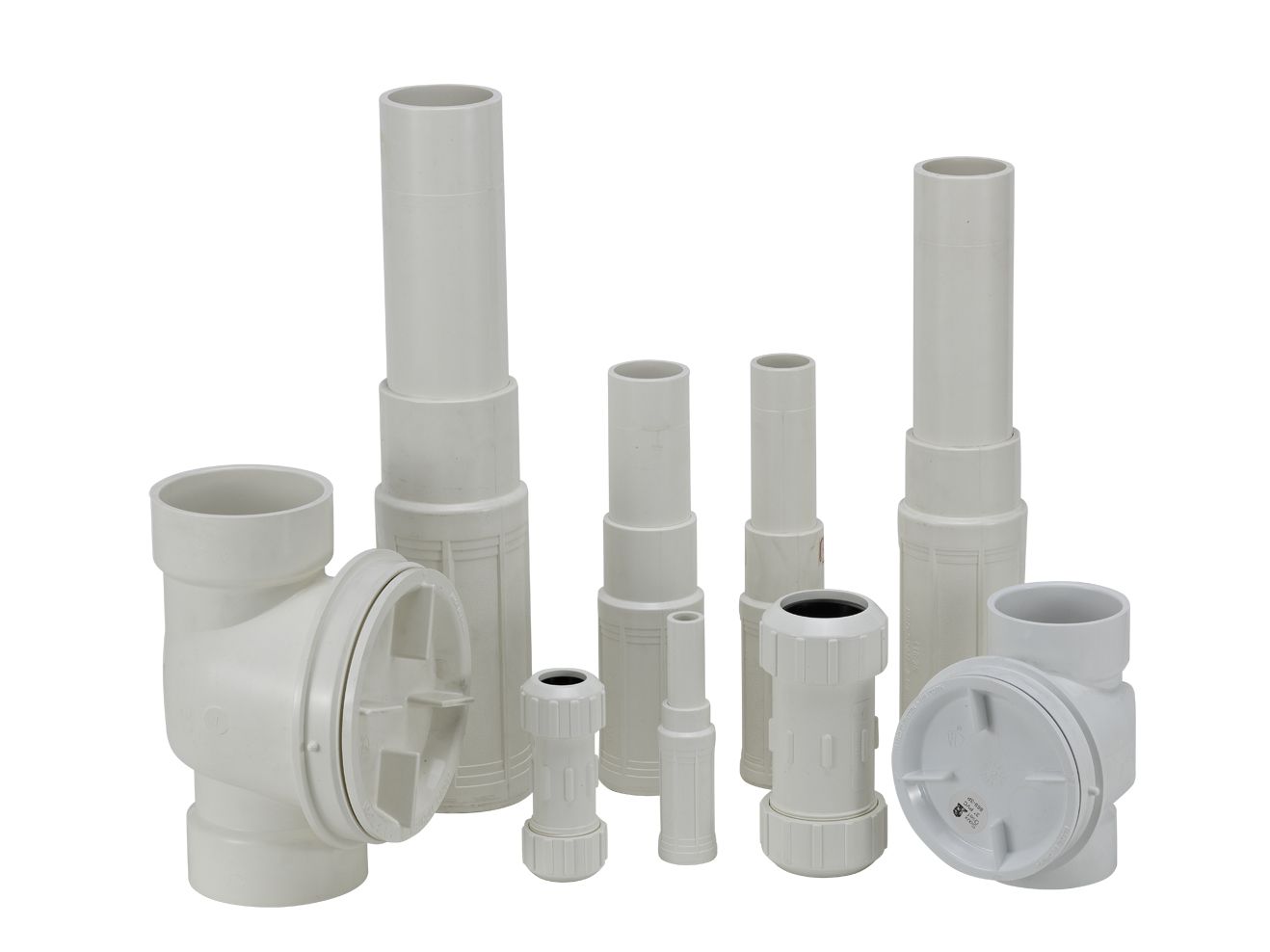

专用机系列之PVC管件专用机
——采用PVC专用的注射系统、强排式冷却装置、高硬度和防腐蚀的双合金螺杆,符合PVC、UPVC等颗粒、粉料的生产要求,保证了塑化效果和混色效果,同时避免产品过热而变色。













Item Unit HTQ-360
INJECTION UNIT   A B C
Screw Diameter mm 65 70 75
Screw L/D Ratio  L/D 21.5 20 18.7
Shot Volume(Theoretical) cm3 1072 1243 1427
Injection Weight(PS) G 975 1131 1299
Plasticizing Capacity(PS) g/s 41.2 44.6 48.9
Injection Rate g/s 337 390 448
Injection Pressure Mpa 182 157 137
Screw Speed r/min 220
CLAMPING UNIT
Clamp Tonnage KN 3600
Toggle Stroke mm 600
Space Between Tie Bars mm 700×640
Min.Max. Mould Height mm 250-760
Ejector Stroke mm 160
Ejector Tonnage KN 100
Ejector Number   9
OTHERS
System Pressure (mpa) 19
Pump Motor Power (kw) 37
Heater Power (kw) 23.35
Machine Dimension(L×W×H) m 6.73×1.97×2.3
Oil Tank Capacity L 854
Machine Weight Tonelada 14
