HQT-3200 PVC

发布时间:2020-04-26 19:32浏览次数:

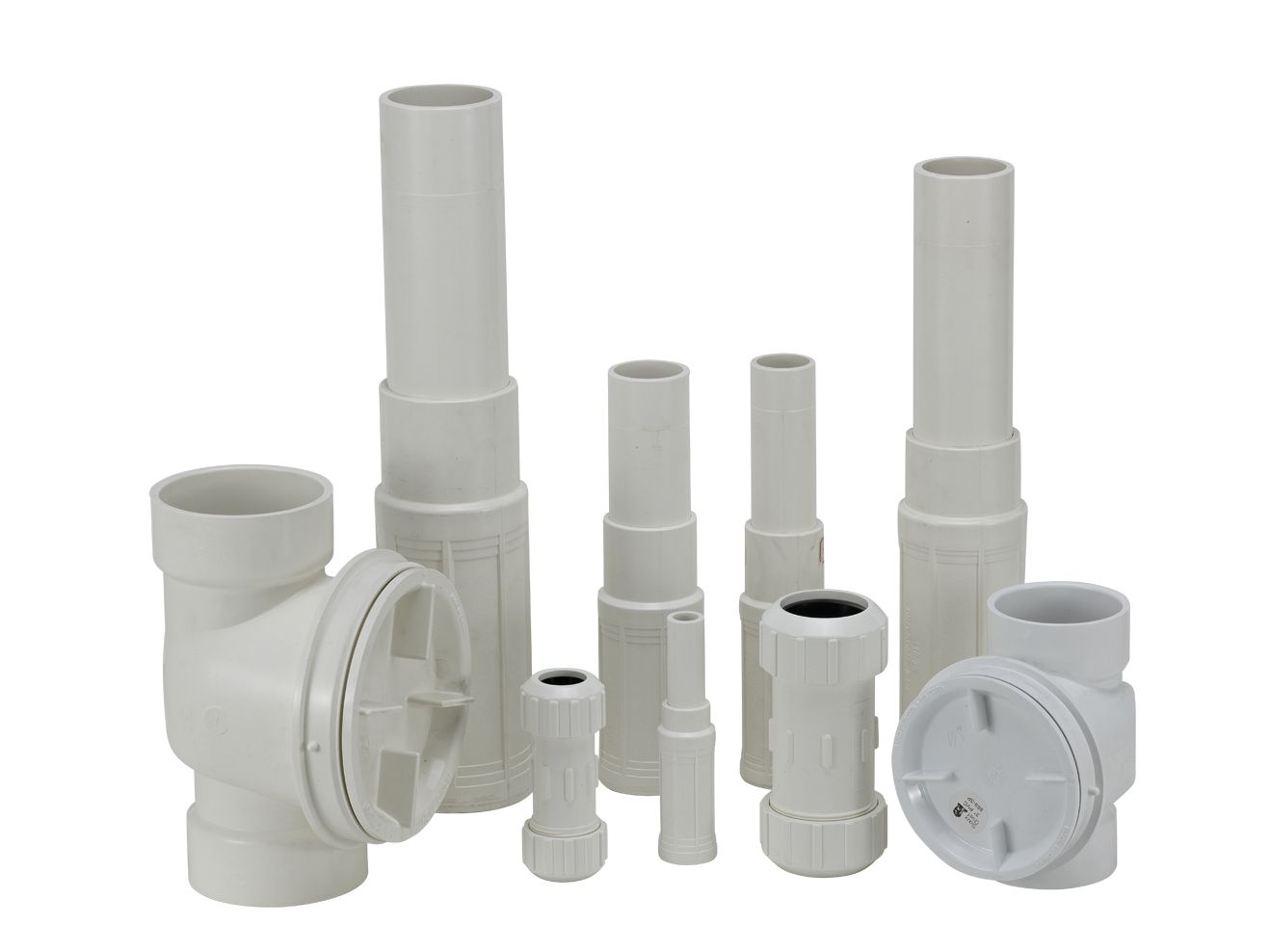

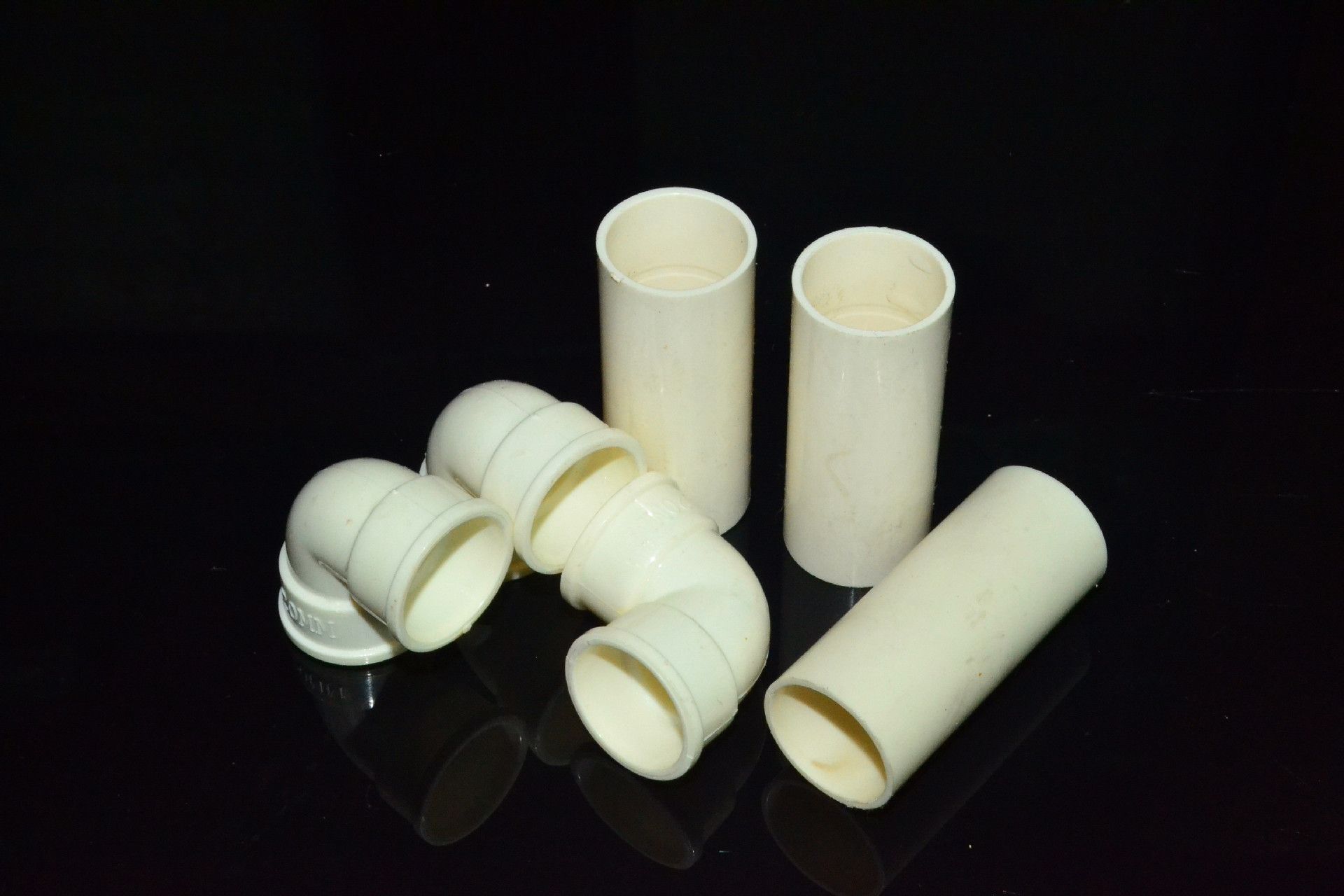

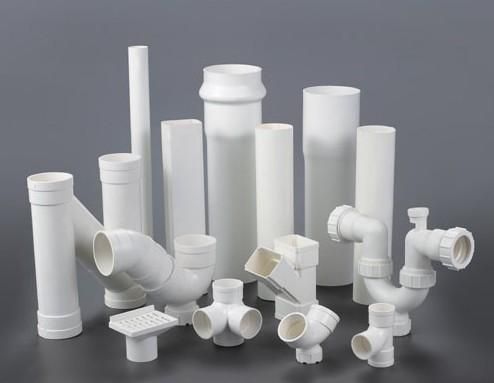

专用机系列之PVC管件专用机
——采用PVC专用的注射系统、强排式冷却装置、高硬度和防腐蚀的双合金螺杆,符合PVC、UPVC等颗粒、粉料的生产要求,保证了塑化效果和混色效果,同时避免产品过热而变色。











Item Unit HQT-320
INJECTION UNIT   A B C
Screw Diameter mm 60 65 70
Screw L/D Ratio  L/D 21.7 20 18.6
Shot Volume(Theoretical) cm3 752 883 1024
Injection Weight(PS) G 684 803 932
Plasticizing Capacity(PS) g/s 34.8 38.6 42.0
Injection Rate g/s 284 333 386
Injection Pressure Mpa 190 162 140
Screw Speed r/min 220
CLAMPING UNIT
Clamp Tonnage KN 3200
Toggle Stroke mm 570
Space Between Tie Bars mm 640×640
Min.Max. Mould Height mm 240-640
Ejector Stroke mm 150
Ejector Tonnage KN 70
Ejector Number   9
OTHERS
System Pressure (mpa) 16
Pump Motor Power (kw) 30
Heater Power (kw) 18.5
Machine Dimension(L×W×H) m 6.33×1.77×2.23
Oil Tank Capacity L 734
Machine Weight Tonelada 11.5
