HQT-3200 PET

发布时间:2020-04-26 19:31浏览次数:

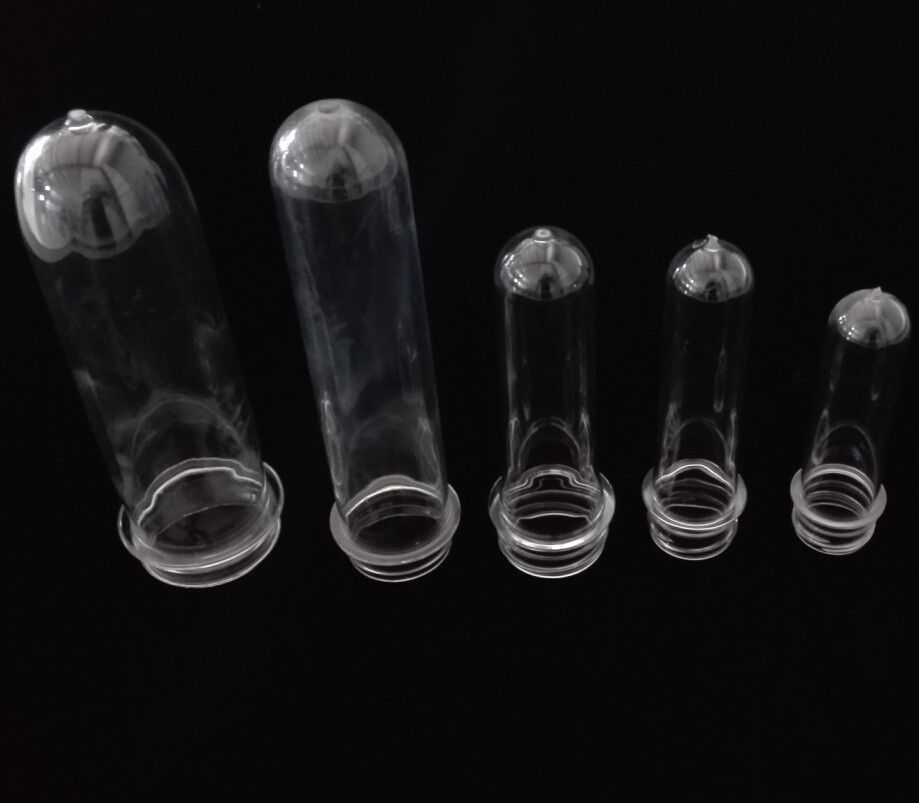

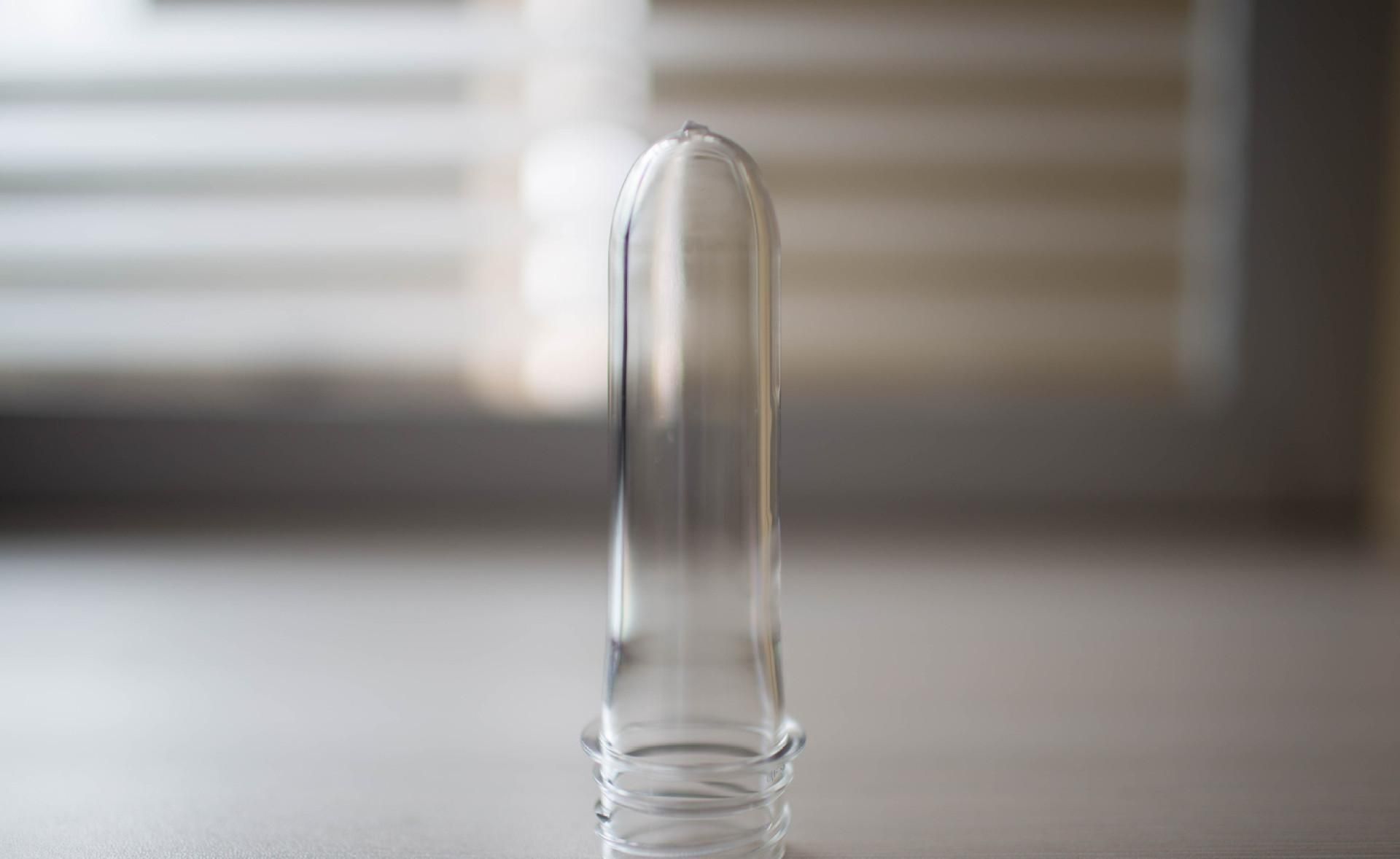

专用机系列之HQT-PET瓶胚注塑机
——采用PET专用的锁模结构、注射系统、长径比螺杆,确保各类PET产品的生产需求













Item Unit HQT- 320 PET
INJECTION UNIT
Screw Diameter mm 75
Screw L/D Ratio  L/D 22
Shot Volume(Theoretical) cm3 1458
Injection Weight(PS) G 1545
Plasticizing Capacity(PS) g/s 42.0
Injection Rate g/s 443
Injection Pressure Mpa 122
Screw Speed r/min 220
CLAMPING UNIT
Clamp Tonnage KN 3200
Toggle Stroke mm 570
Space Between Tie Bars mm 640×600
Min.Max. Mould Height mm 240-640
Ejector Stroke mm 150
Ejector Tonnage KN 70
Ejector Number   9
OTHERS
System Pressure (mpa) 16
Pump Motor Power (kw) 30
Heater Power (kw) 21.05
Machine Dimension(L×W×H) m 6.81×1.77×2.23
Oil Tank Capacity L 884
Machine Weight Tonelada 12
