HQT-3600 PET

发布时间:2020-04-26 19:32浏览次数:

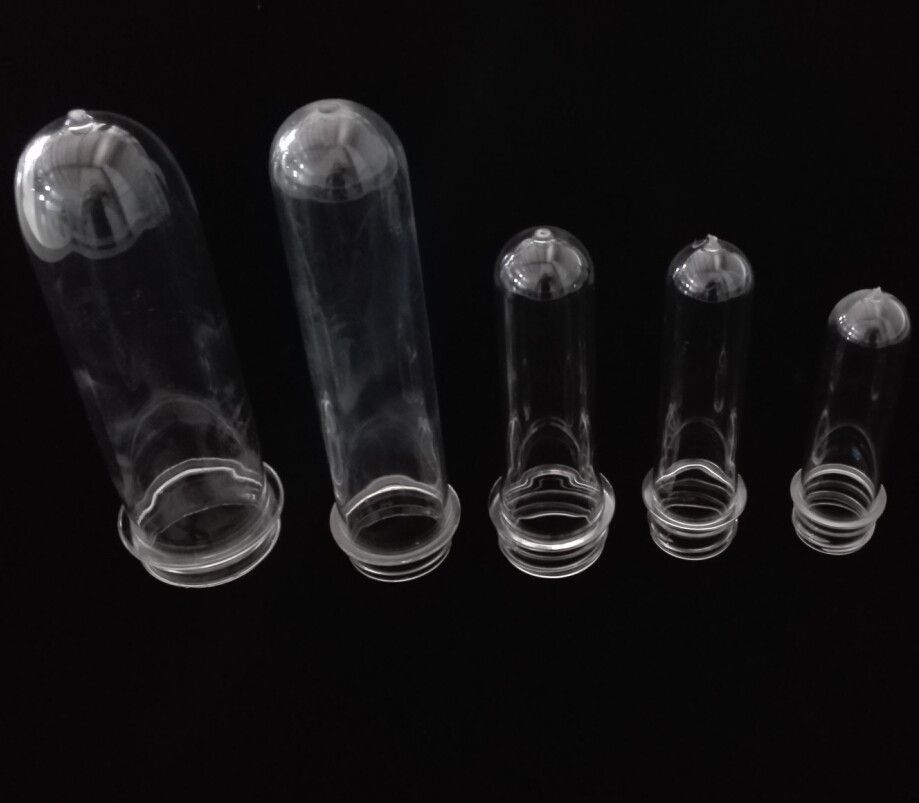

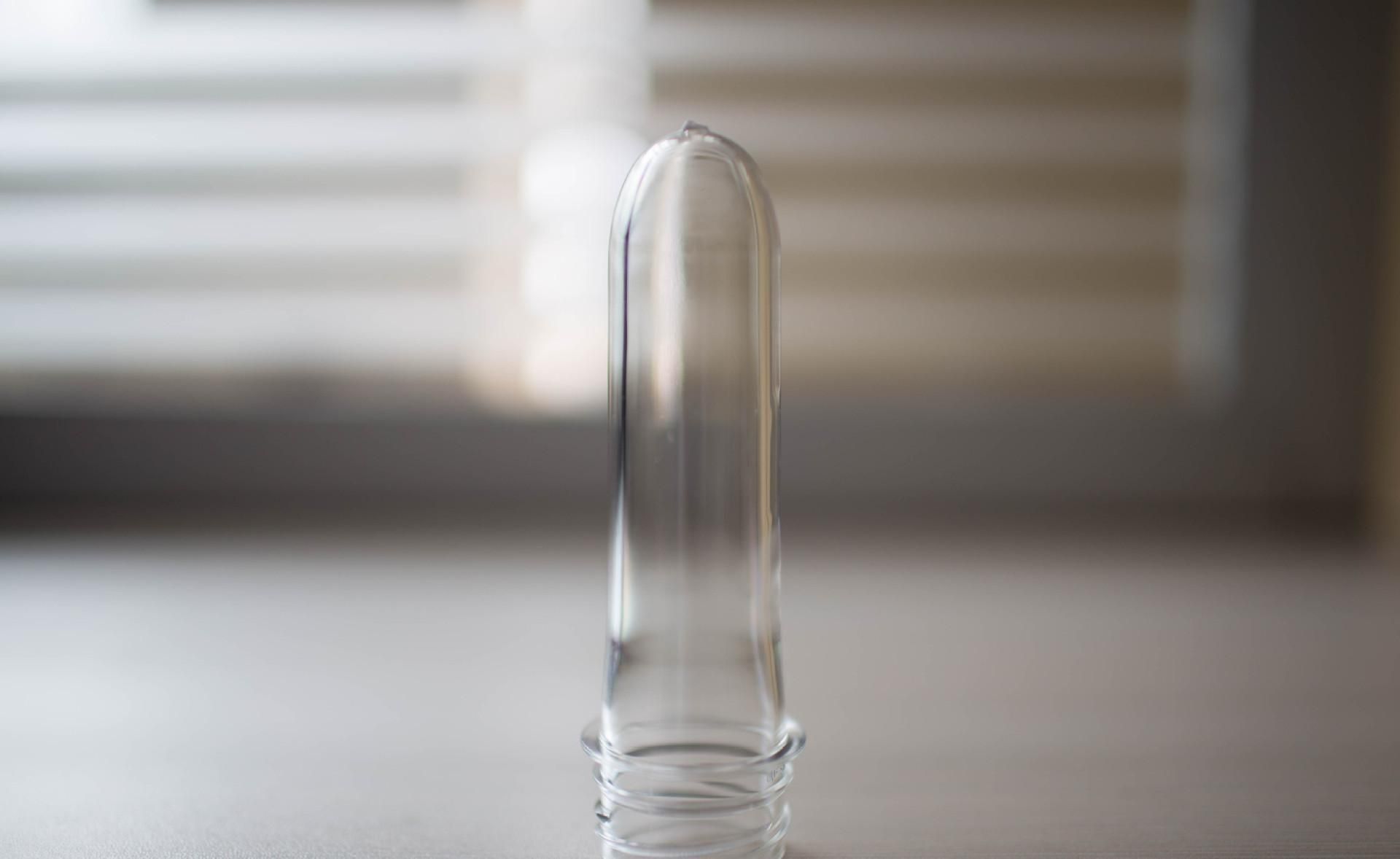

专用机系列之HQT-PET瓶胚注塑机
——采用PET专用的锁模结构、注射系统、长径比螺杆,确保各类PET产品的生产需求










Item Unit HQT-360 PET
INJECTION UNIT
Screw Diameter mm 80
Screw L/D Ratio  L/D 22
Shot Volume(Theoretical) cm3 1810
Injection Weight(PS) G 1920
Plasticizing Capacity(PS) g/s 48.5
Injection Rate g/s 510
Injection Pressure Mpa 120
Screw Speed r/min 200
CLAMPING UNIT
Clamp Tonnage KN 3600
Toggle Stroke mm 590
Space Between Tie Bars mm 700×640
Min.Max. Mould Height mm 250-750
Ejector Stroke mm 160
Ejector Tonnage KN 100
Ejector Number   9
OTHERS
System Pressure (mpa) 16
Pump Motor Power (kw) 37
Heater Power (kw) 22.75
Machine Dimension(L×W×H) m 7.18×1.97×2.3
Oil Tank Capacity L 1200
Machine Weight Tonelada 14.5
