HQT-2800 PET

发布时间:2020-04-26 19:31浏览次数:

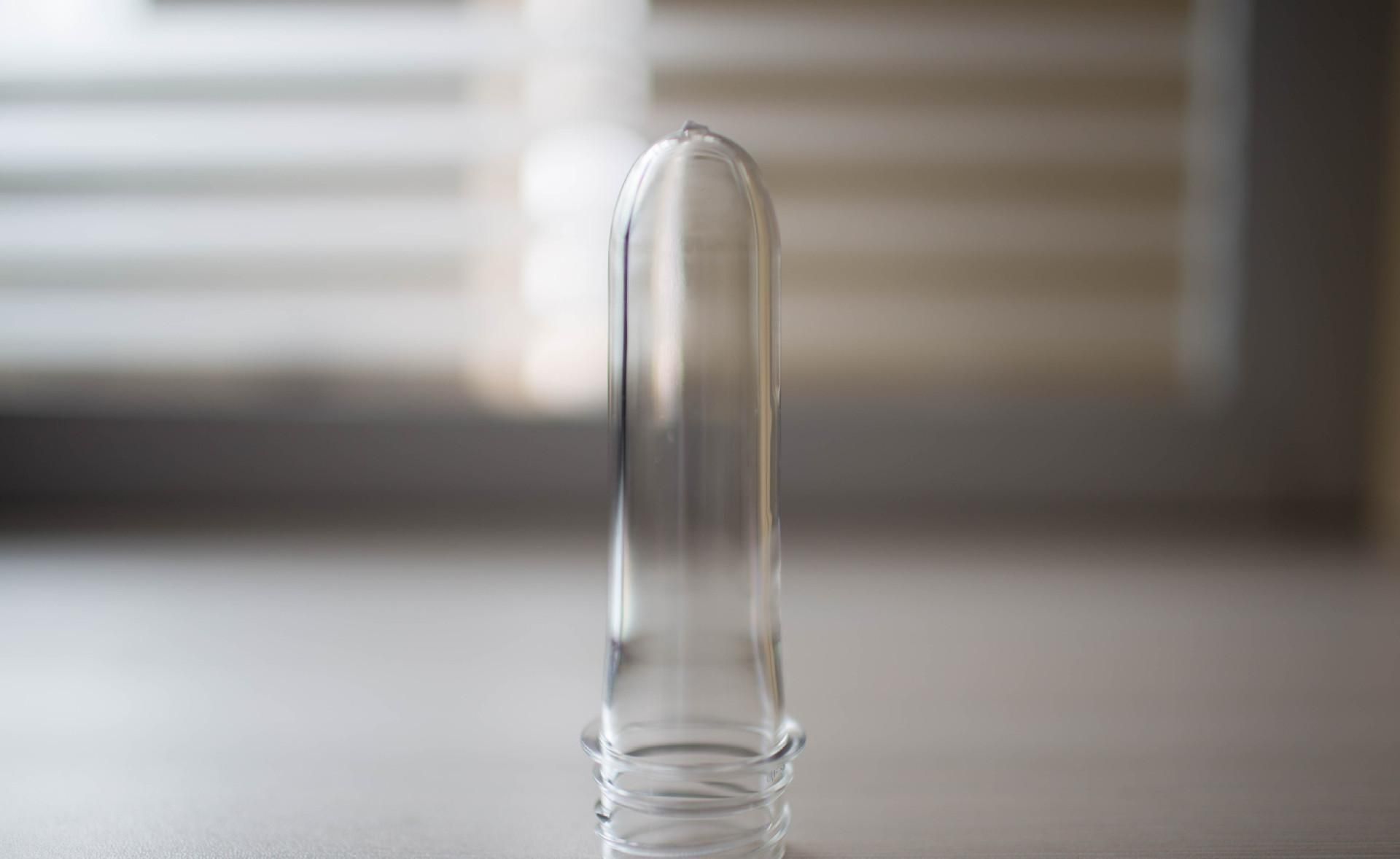

专用机系列之HQT-PET瓶胚注塑机
——采用PET专用的锁模结构、注射系统、长径比螺杆,确保各类PET产品的生产需求。










Item Unit HQT-280 PET
INJECTION UNIT
Screw Diameter mm 70
Screw L/D Ratio  L/D 22
Shot Volume(Theoretical) cm3 1116
Injection Weight(PS) G 1180
Plasticizing Capacity(PS) g/s 36.2
Injection Rate g/s 341
Injection Pressure Mpa 123
Screw Speed r/min 200
CLAMPING UNIT
Clamp Tonnage KN 2280
Toggle Stroke mm 550
Space Between Tie Bars mm 580×560
Min.Max. Mould Height mm 220-570
Ejector Stroke mm 140
Ejector Tonnage KN 70
Ejector Number   9
OTHERS
System Pressure (mpa) 16
Pump Motor Power (kw) 22
Heater Power (kw) 14
Machine Dimension(L×W×H) m 6.21×1.69×2.21
Oil Tank Capacity L 613
Machine Weight Tonelada 9.5
