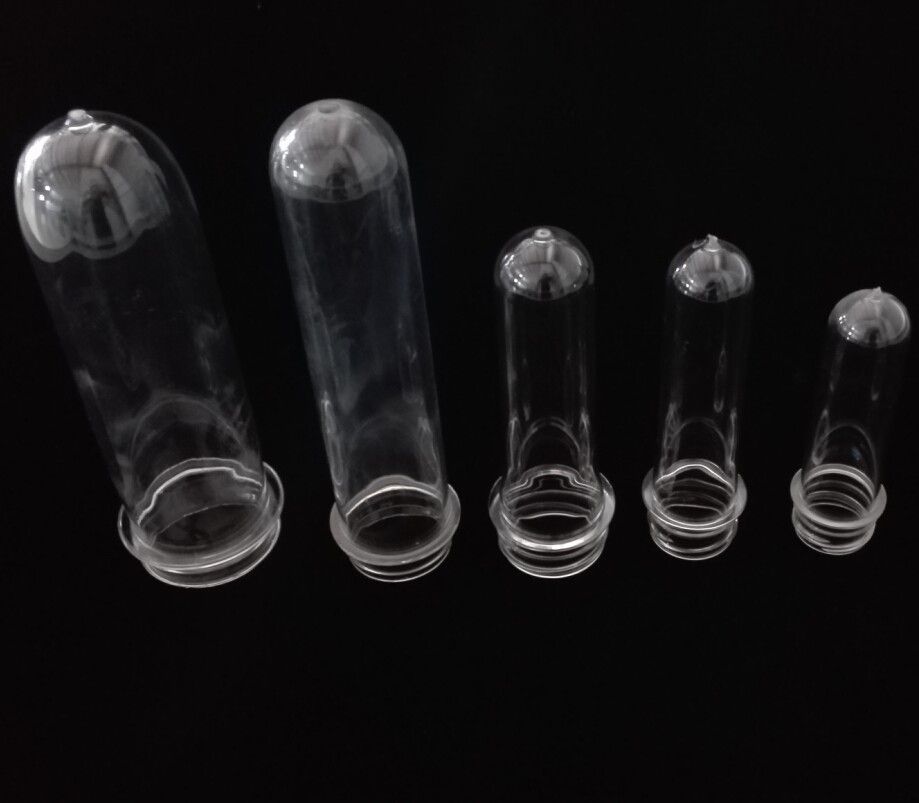

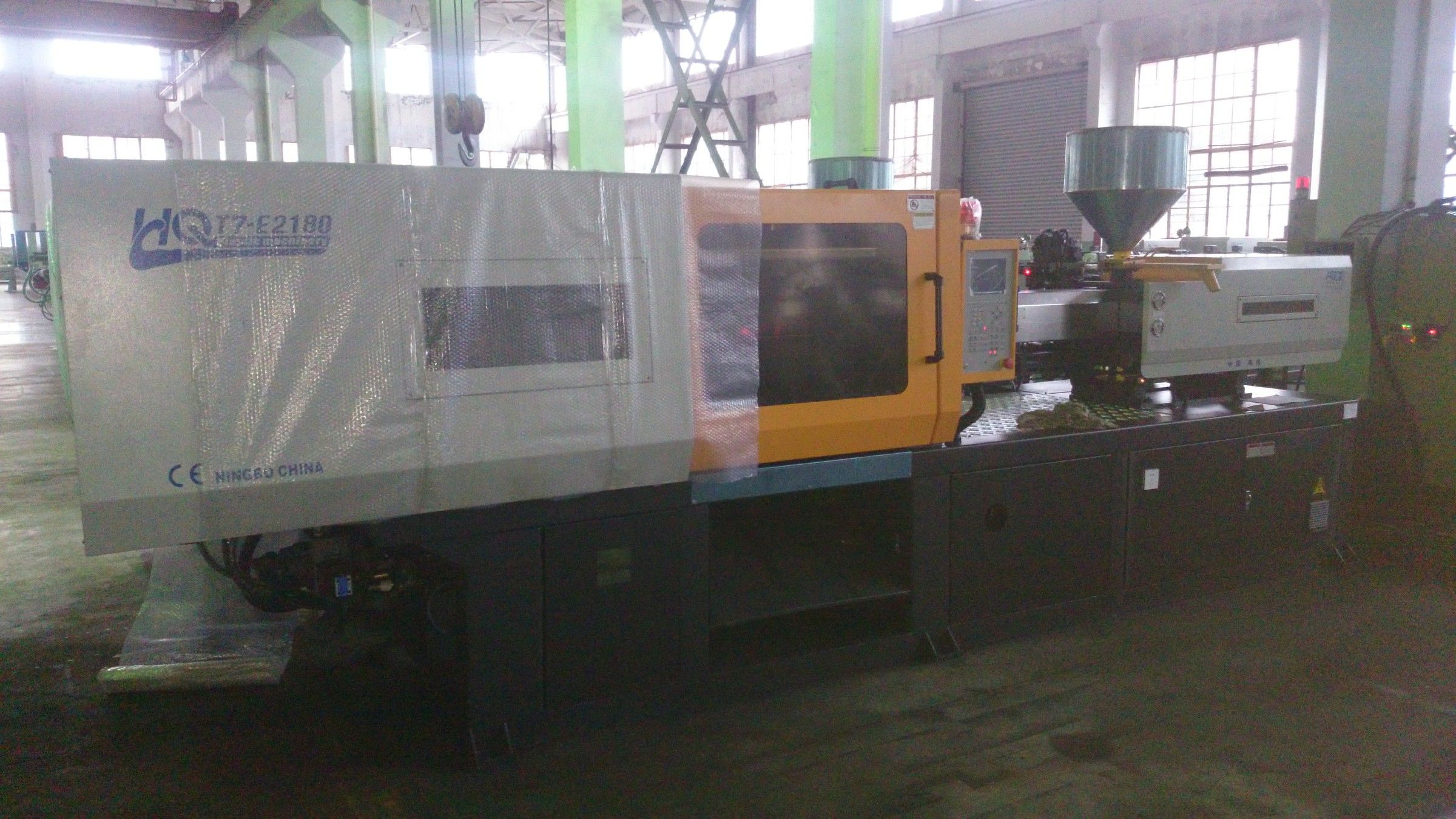

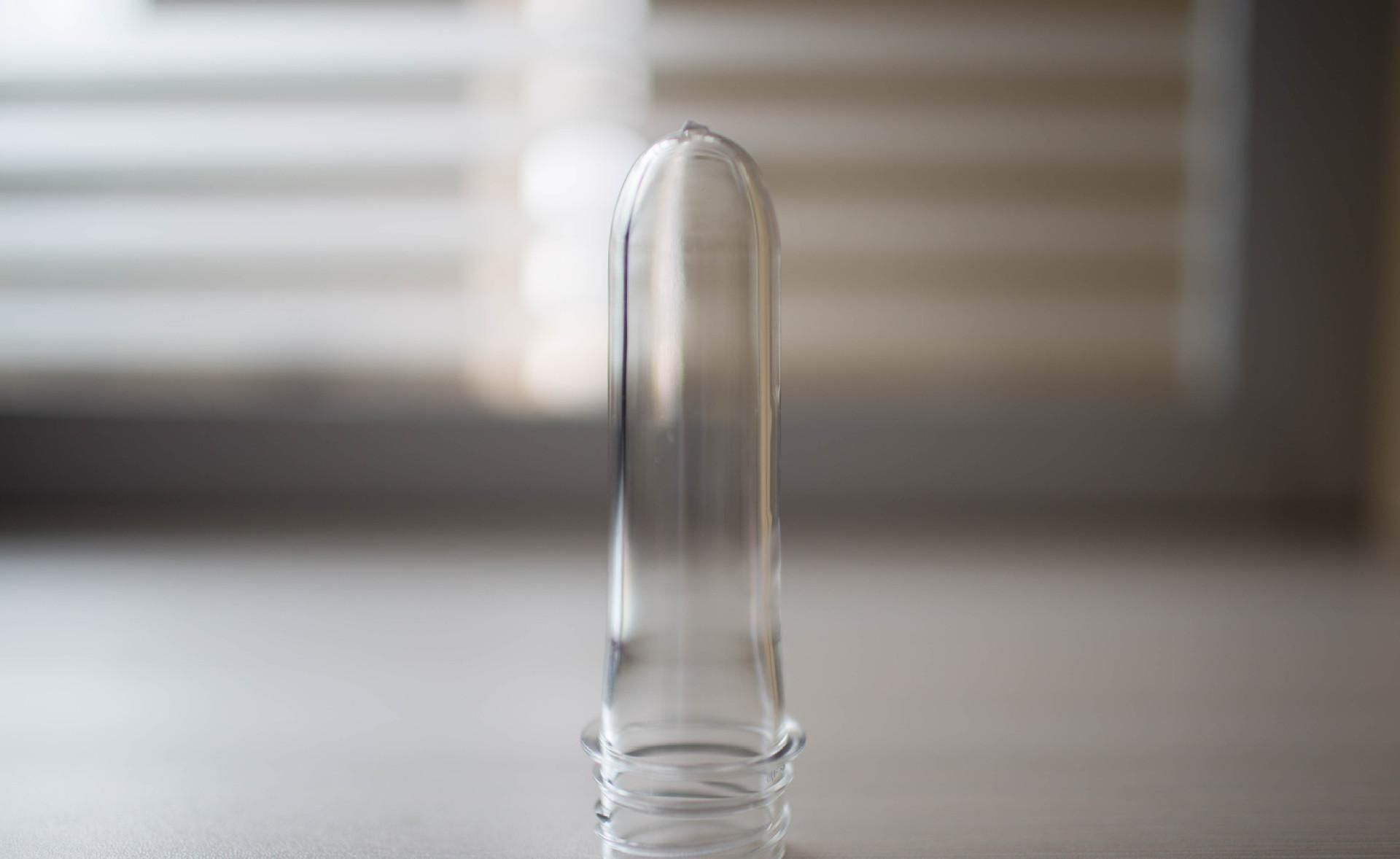

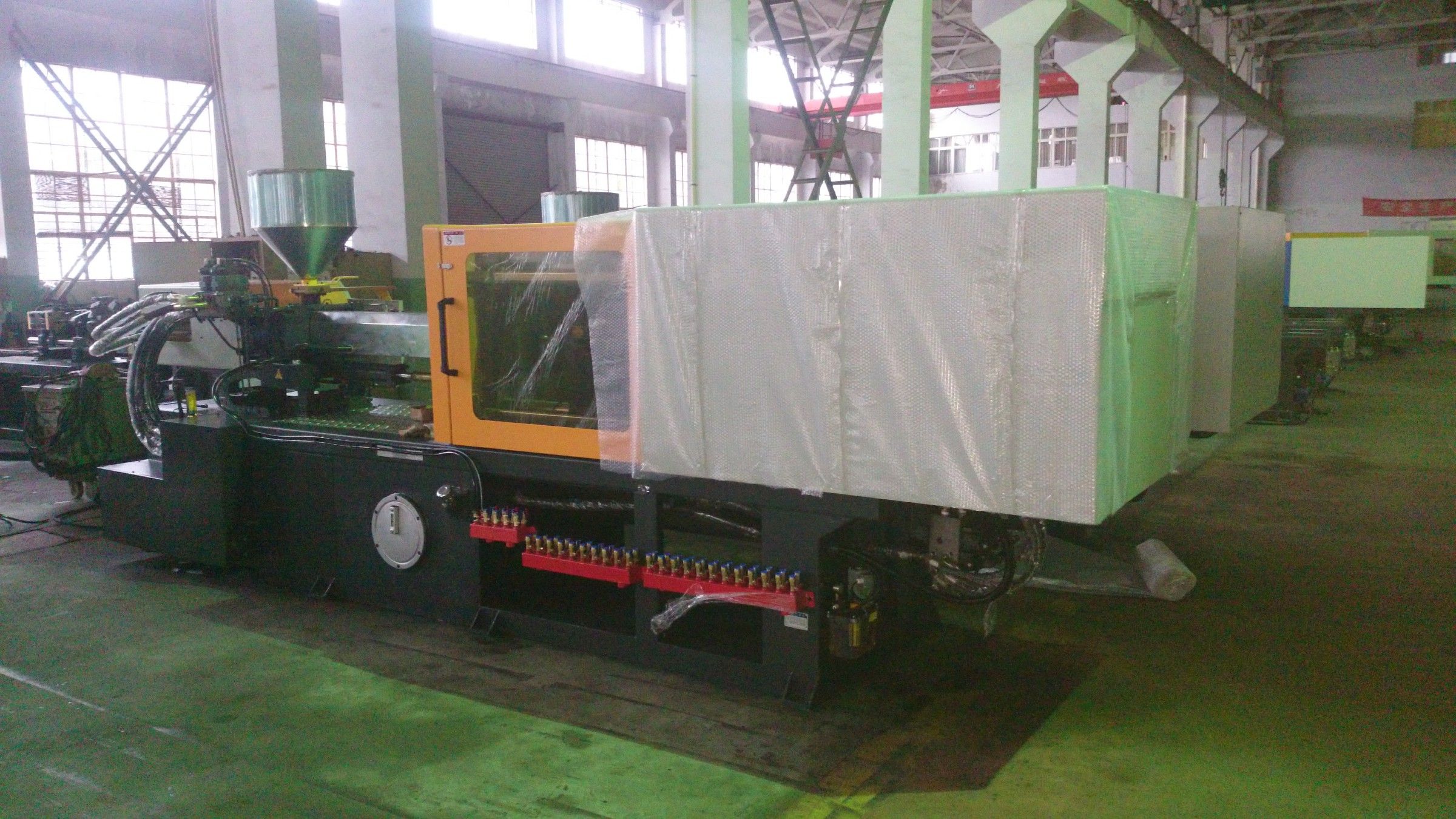

专用机系列之HQT-PET瓶胚注塑机
——采用PET专用的锁模结构、注射系统、长径比螺杆，确保各类PET产品的生产需求
|
Item |
Unit |
HQT-218 PET |
|
INJECTION UNIT |
|
|
|
Screw Diameter |
mm |
60 |
|
Screw L/D Ratio |
L/D |
22 |
|
Shot Volume(Theoretical) |
cm3 |
790 |
|
Injection Weight(PS) |
G |
840 |
|
Plasticizing Capacity(PS) |
g/s |
26.0 |
|
Injection Rate |
g/s |
244 |
|
Injection Pressure |
Mpa |
116 |
|
Screw Speed |
r/min |
180 |
|
CLAMPING UNIT |
|
|
|
Clamp Tonnage |
KN |
2180 |
|
Toggle Stroke |
mm |
470 |
|
Space Between Tie Bars |
mm |
510×510 |
|
Min.Max. Mould Height |
mm |
200-520 |
|
Ejector Stroke |
mm |
130 |
|
Ejector Tonnage |
KN |
70 |
|
Ejector Number |
|
5 |
|
OTHERS |
|
|
|
System Pressure |
（mpa） |
16 |
|

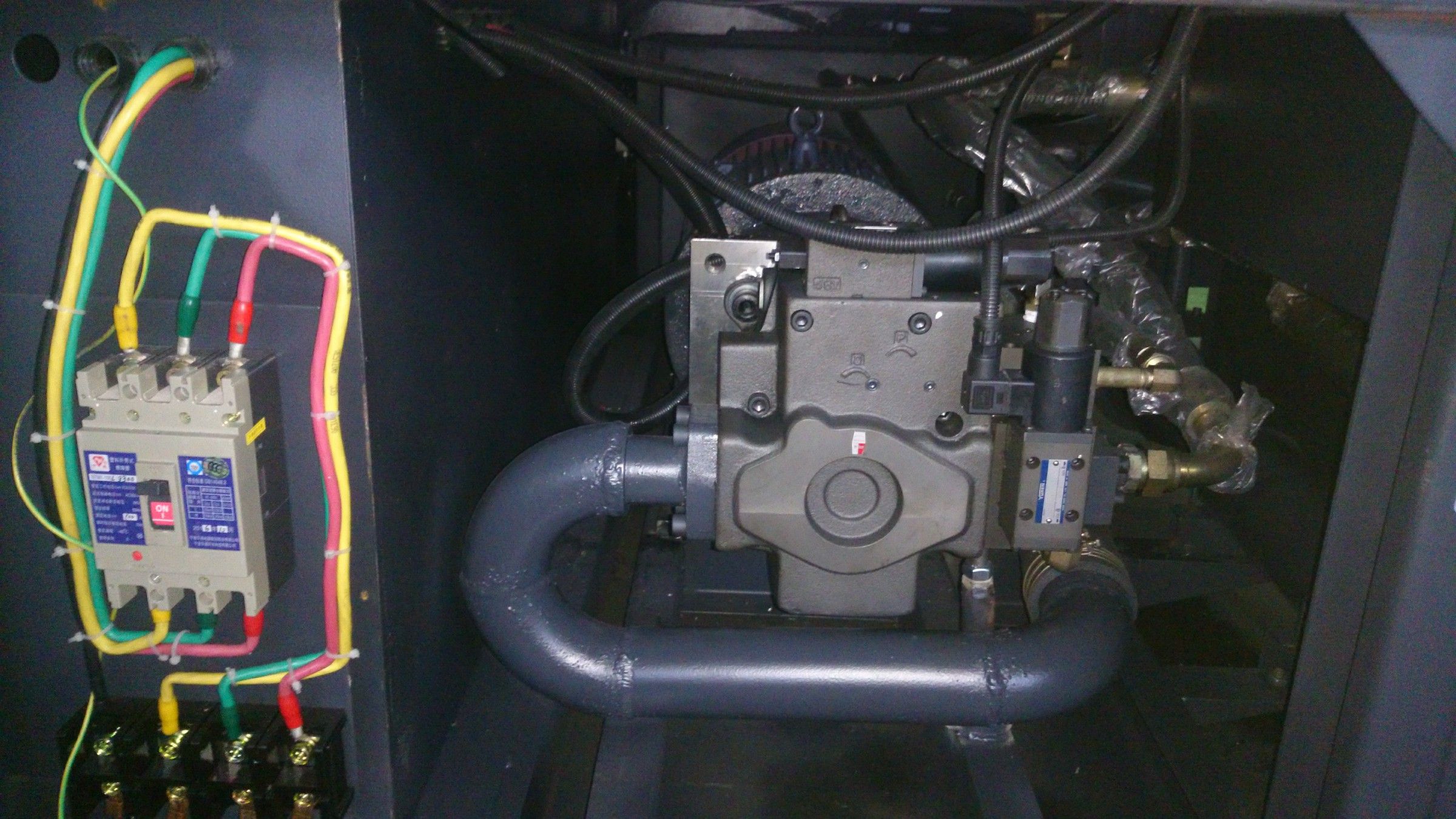

Pump Motor Power |
（kw） |
18.5 |
|
Heater Power |
（kw） |
12.55 |
|
Machine Dimension(L×W×H) |
m |
5.54×1.57×1.97 |
|
Oil Tank Capacity |
L |
495 |
|
Machine Weight |
Tonelada |
7.2 |
