HQT-1680 PET

发布时间:2020-04-26 19:24浏览次数:

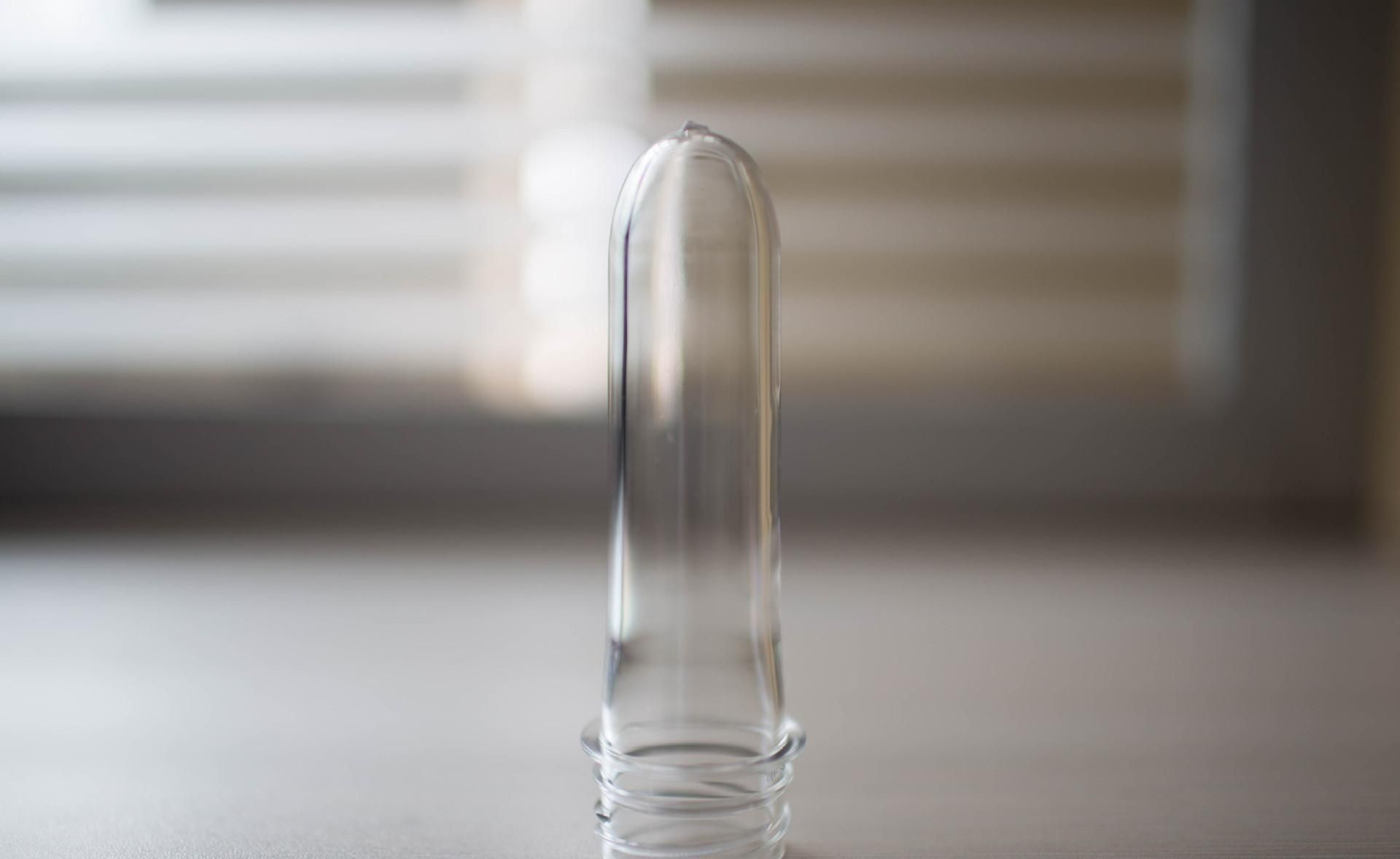

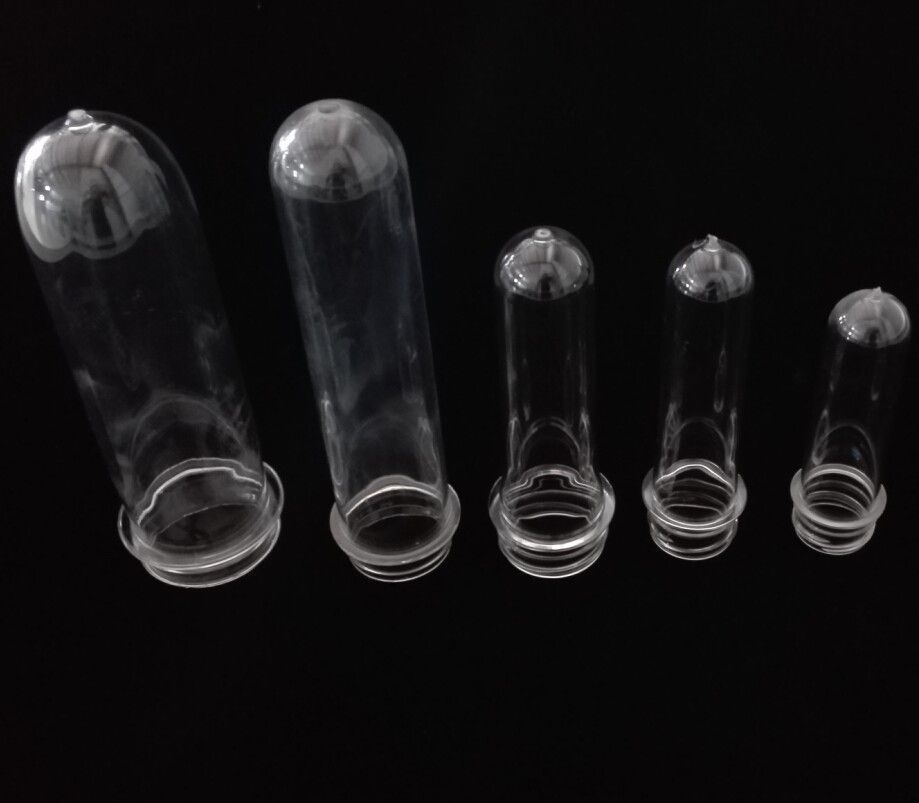

专用机系列之HQT-PET瓶胚注塑机

——采用PET专用的锁模结构、注射系统、长径比螺杆,确保各类PET产品的生产需求









Item Unit HQT-168 PET
INJECTION UNIT
Screw Diameter mm 55
Screw L/D Ratio  L/D 22
Shot Volume(Theoretical) cm3 510
Injection Weight(PS) G 540
Plasticizing Capacity(PS) g/s 22.0
Injection Rate g/s 181
Injection Pressure Mpa 126
Screw Speed r/min 150
CLAMPING UNIT
Clamp Tonnage KN 1680
Toggle Stroke mm 420
Space Between Tie Bars mm 460×460
Min.Max. Mould Height mm 180-500
Ejector Stroke mm 120
Ejector Tonnage KN 38
Ejector Number   5
OTHERS
System Pressure (mpa) 16
Pump Motor Power (kw) 15
Heater Power (kw) 9.9
Machine Dimension(L×W×H) m 4.99×1.49×1.9
Oil Tank Capacity L 364
Machine Weight Tonelada 6
