HQT-5300 crate injection machine

Release time：2020-10-07 16:20viewed：times

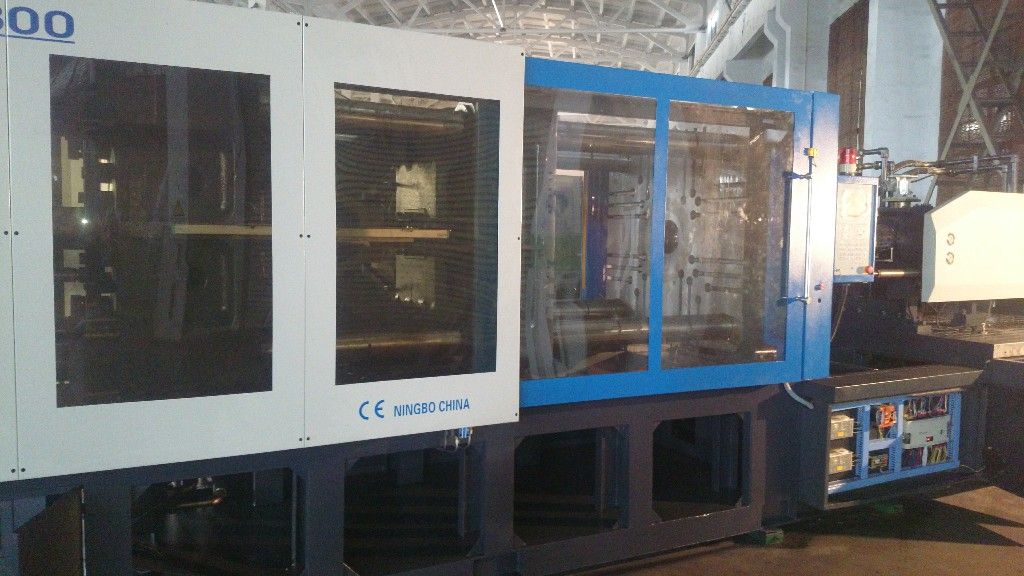

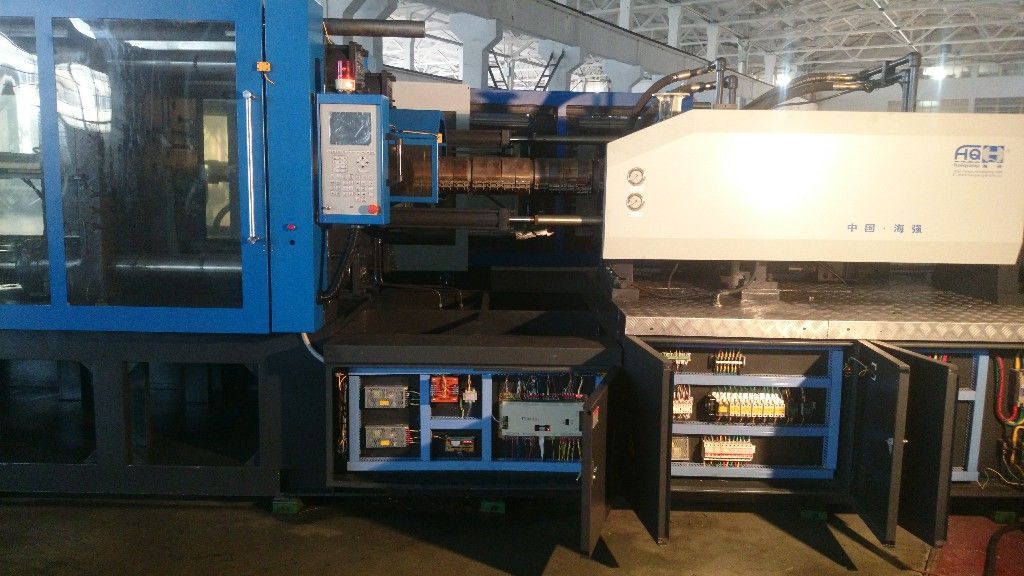

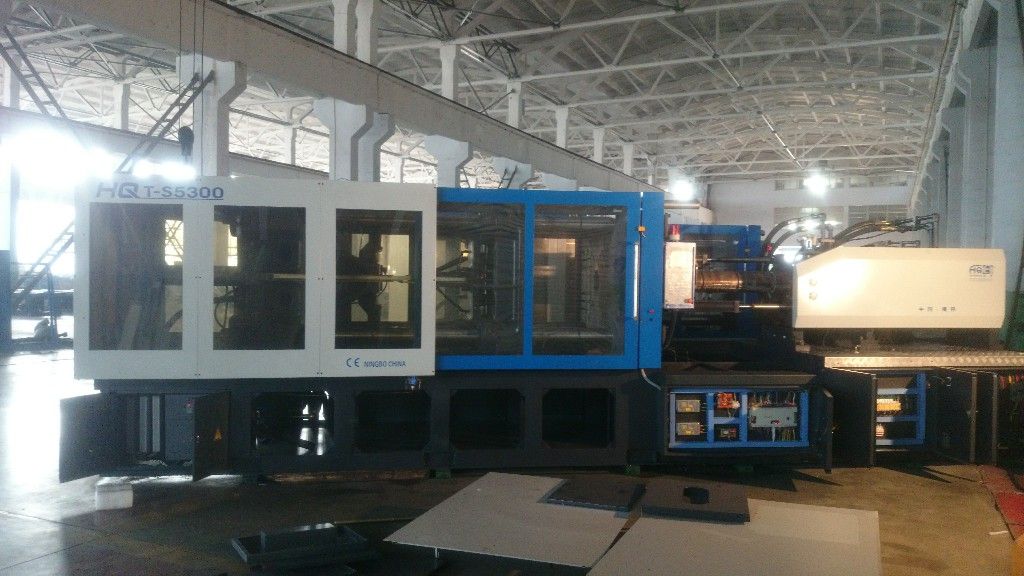

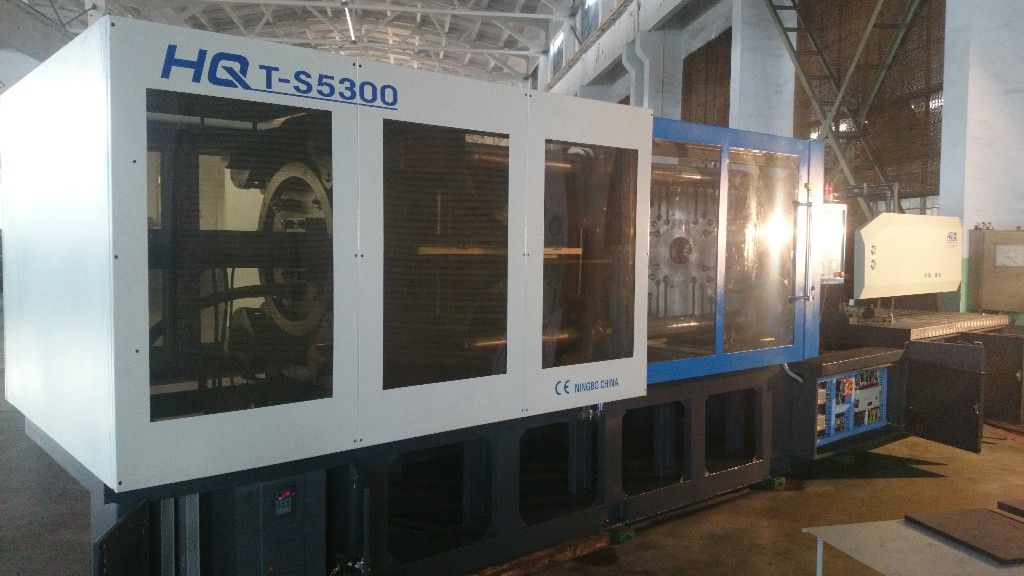

HQT-5300 crate injection machine

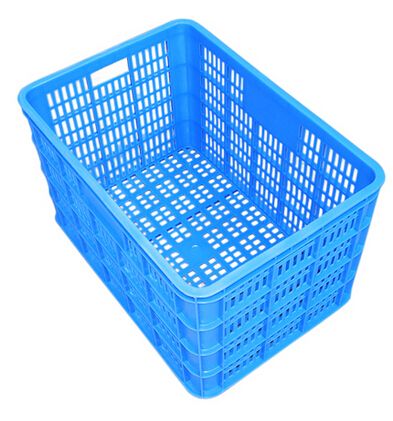

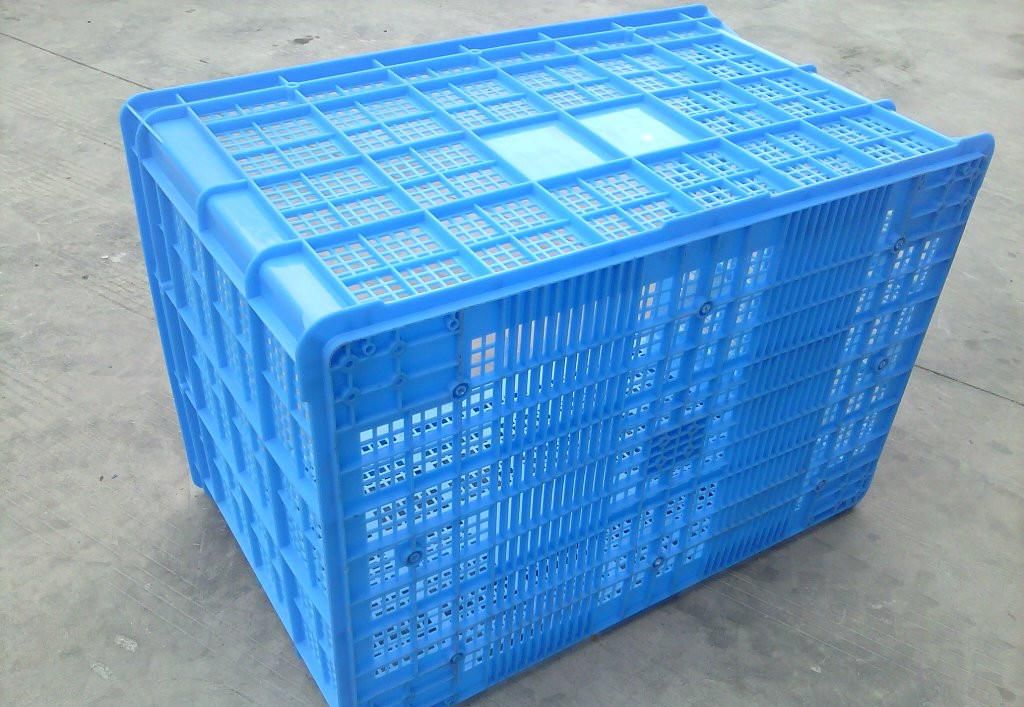

HQT-5300 servo plastic injection machine in CHINAPLAS exhibition in 2016 producing PP frute crate.

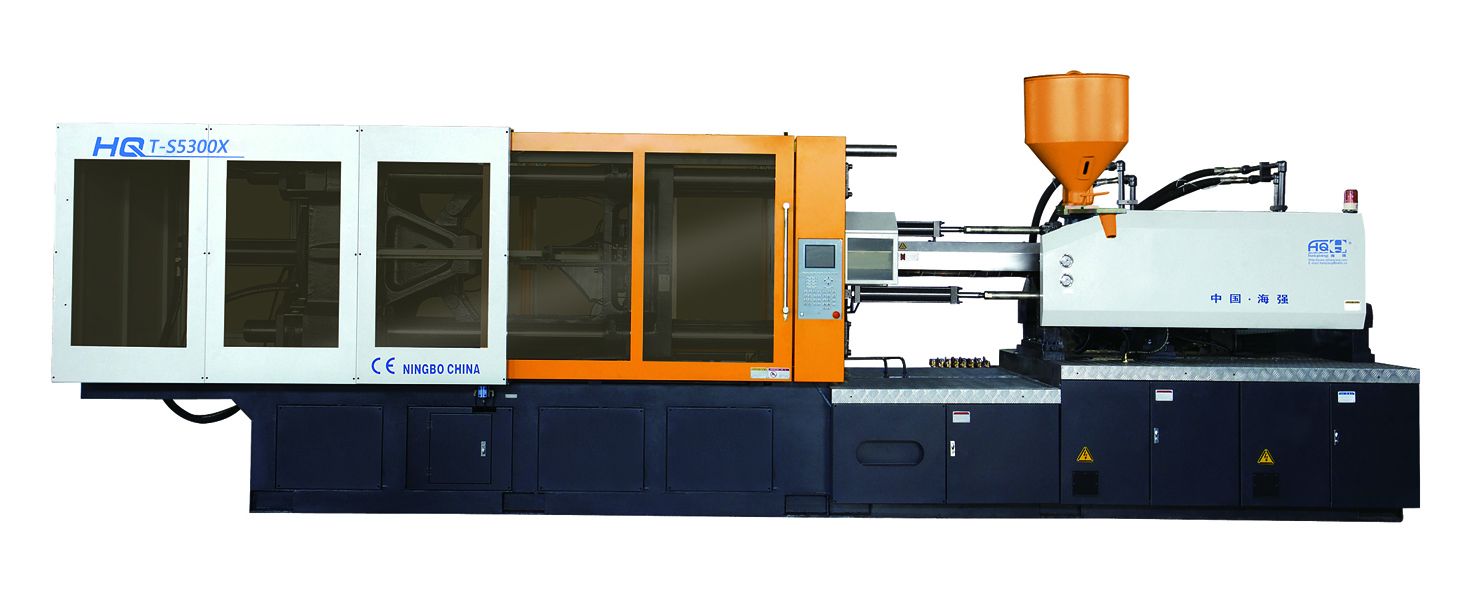

HQT-X Serie Plastic Crate Injection Machine

——Special designed injection unit and screw can increase plasticizing capacity and reduce forming time.

——Innovation of additional ejection device and optimized hydraulic circuit design improve production efficiency.

Item	Unit	HQT-530
INJECTION UNIT		A	B	C
Screw Diameter	mm	80	85	90
Screw L/D Ratio	L/D	21.3	20	18.9
Shot Volume(Theoretical)	cm3	1702	1921	2481
Injection Weight(PS)	G	1784	2014	2258
Plasticizing Capacity(PS)	g/s	58.4	65.6	75.2
Injection Rate	g/s	401	453	507
Injection Pressure	Mpa	184	163	146
Screw Speed	r/min	120
CLAMPING UNIT
Clamp Tonnage	KN	5300
Toggle Stroke	mm	820
Space Between Tie Bars	mm	820×820
Min.Max. Mould Height	mm	350-820
Ejector Stroke	mm	220
Ejector Tonnage	KN	150
Ejector Number		13
OTHERS
System Pressure	（mpa）	16
Pump Motor Power	（kw）	55
Heater Power	（kw）	29.3
Machine Dimension(L×W×H)	m	8.25×2.24×2.8
Oil Tank Capacity	L	1386
Machine Weight	Tonelada	22
