HQT-5800 crate injection machine

Release time：2020-10-07 11:08viewed：times

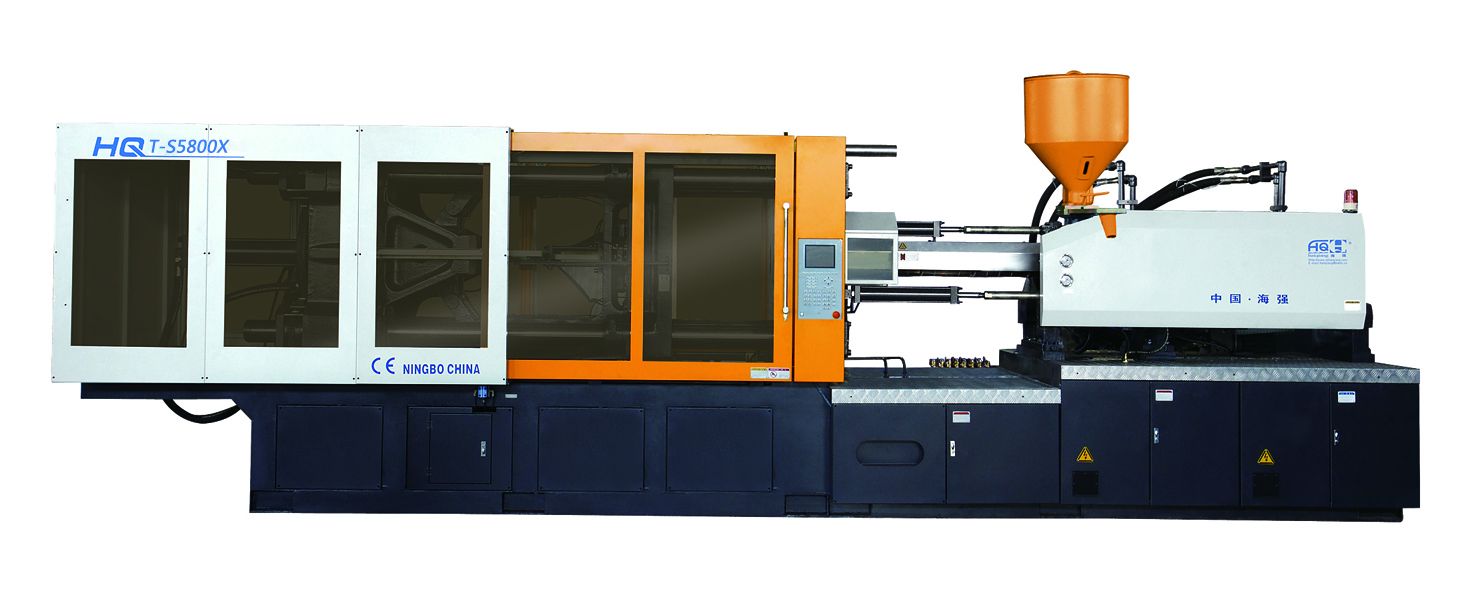

HQT-5800 crate injection machine

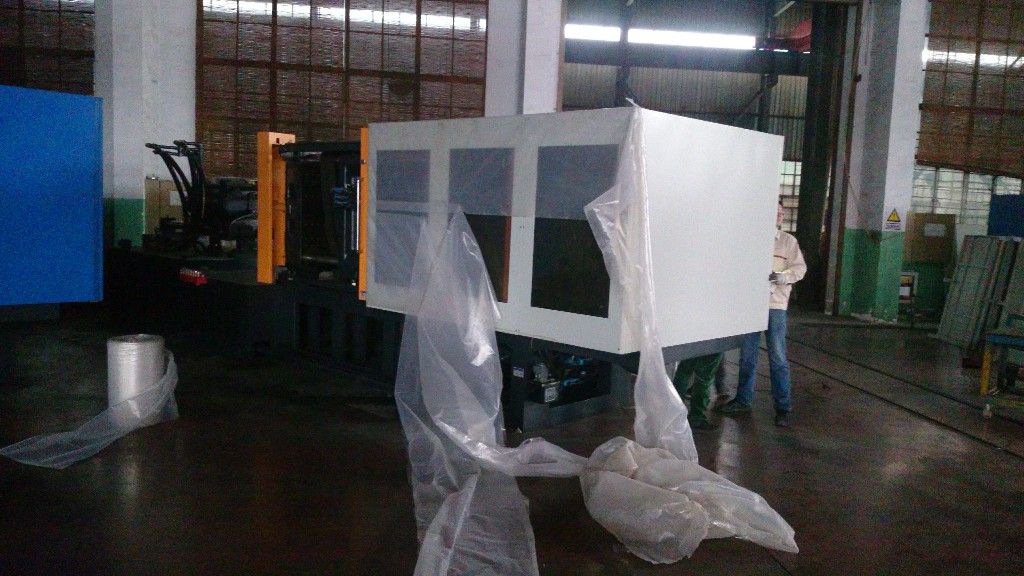

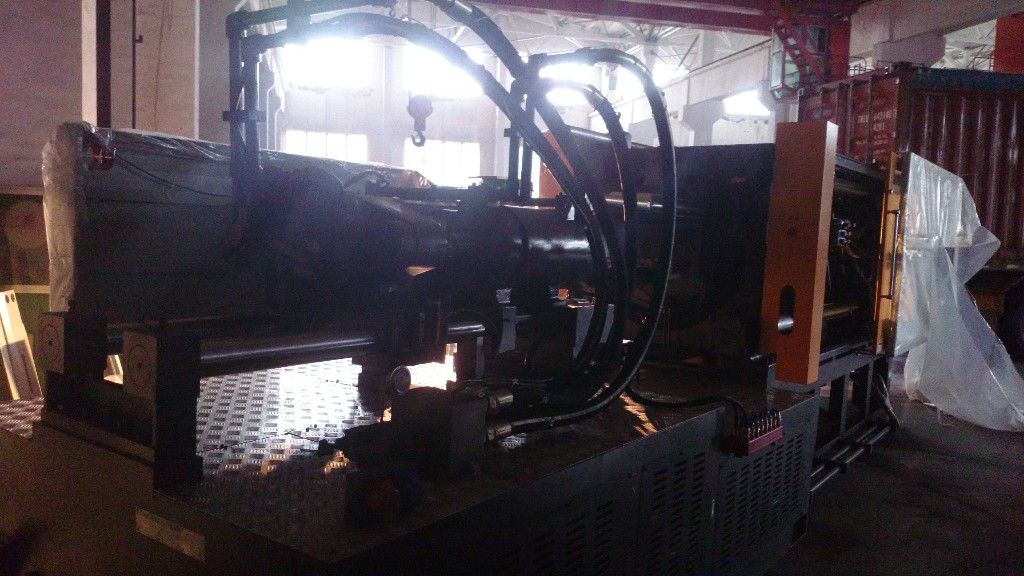

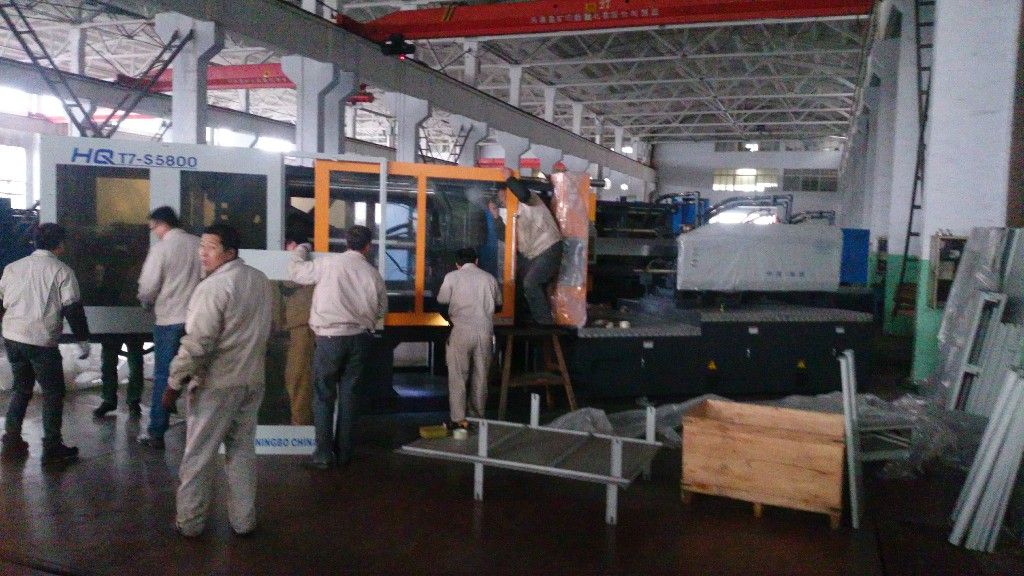

HQT-5800 servomotor plastic injection machine sent to Argentinean customer in 2015







HQT-X Serie Plastic Crate Injection Machine
——Special designed injection unit and screw can increase plasticizing capacity and reduce forming time.
——Innovation of additional ejection device and optimized hydraulic circuit design improve production efficiency.
















Item UNIT HQT5800
INJECTION UNIT 　 A B C
Screw Diameter mm 85 90 95
Screw L/D Ratio L/D 21.2 20 18.9
Shot Volume(Theoretical) cm3 2213 2481 2764
Injection Weight(PS) g 2014 2258 2516
Plasticizing Capacity(PS) g/s 65.6 75.2 78.7
Injection Rate g/s 453 507 565
Injection Pressure Mpa 163 146 131
Screw Speed r/min 127 127 127
CLAMPING UNIT 　 　
Clamp Tonnage KN 5800
Toggle Stroke mm 820
Space Between Tie Bars mm 820×820
Max.Mould Height mm 820
Min.Mould Height mm 350
Ejector Stroke mm 220
Ejector Tonnage KN 150
Ejector Number pc 13
OTHERS 　 　
System Pressure Mpa 16
Pump Motor Power KW 55
Heater Power KW 34
Machine Dimension(L×W×H) m 8.25×2.24×2.8
Oil Tank Capacity L 1386
Machine Weight T 22.5
