HQT-4500 crate injection .machine

Release time:2020-10-07 16:20viewed:times

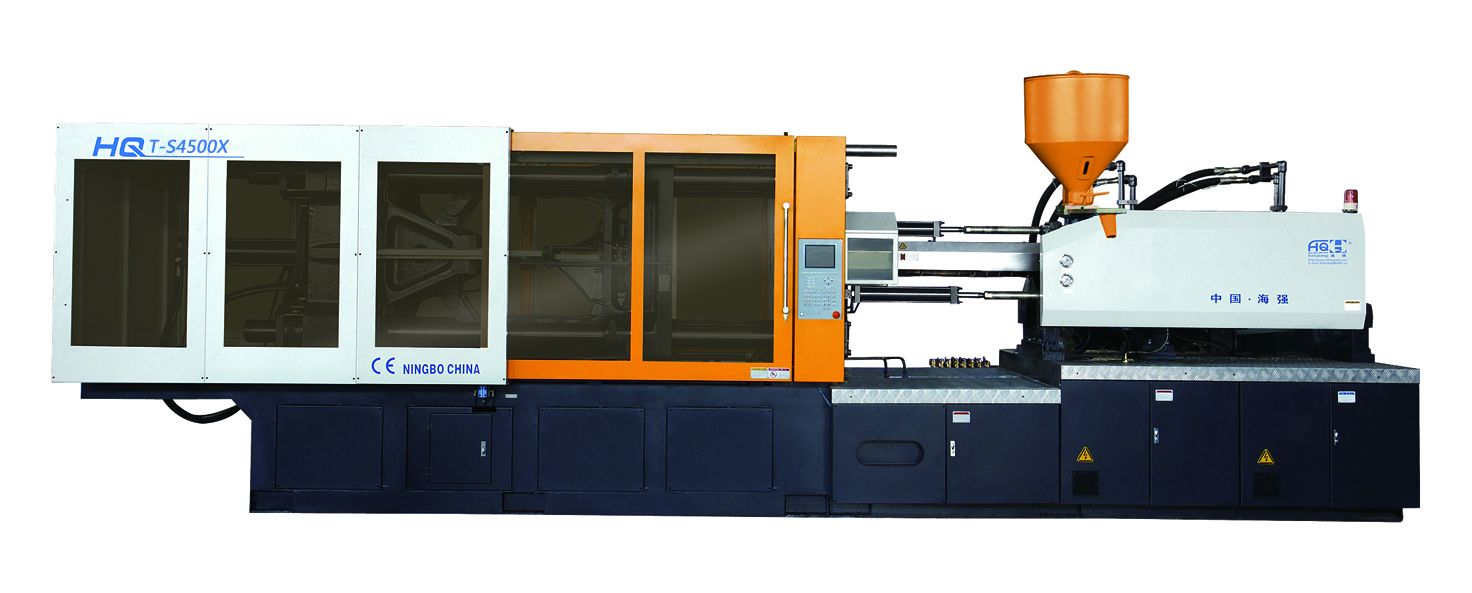

HQT-4500 crate injection .machine

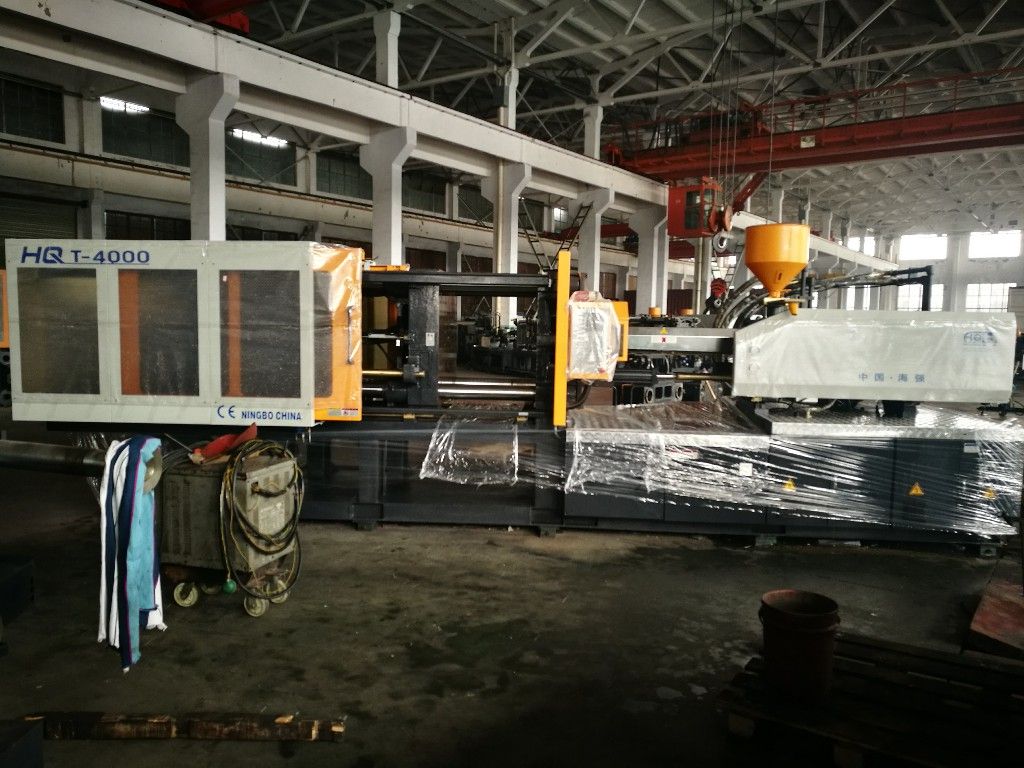

HQT-4000 injection molding machine sent to Philipean customer of home appliance manufacturer.

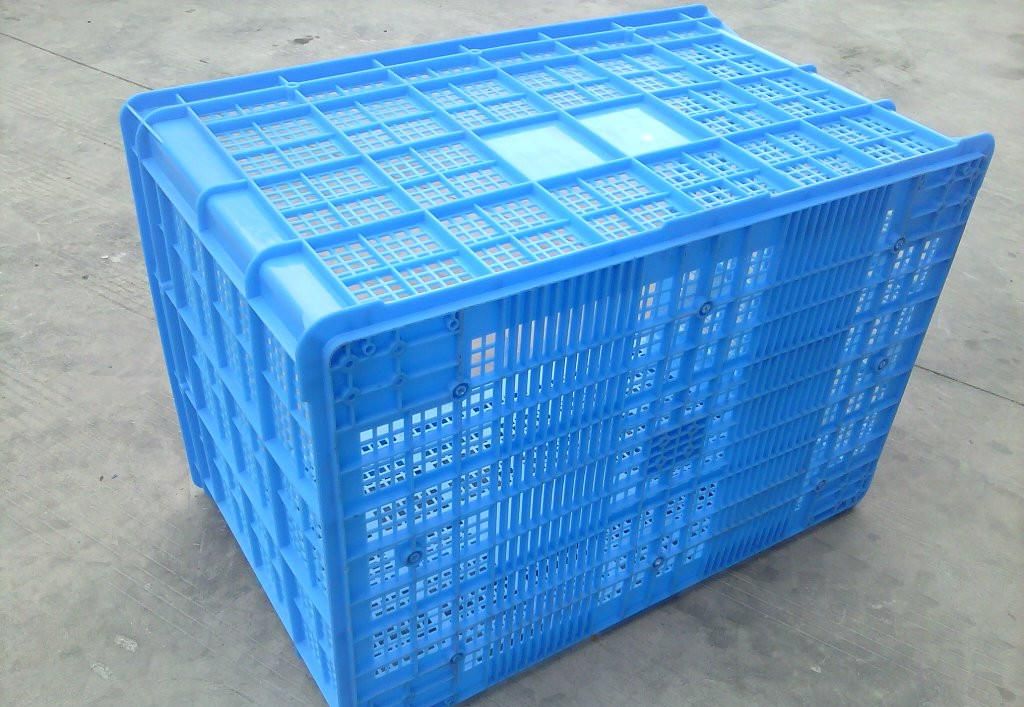

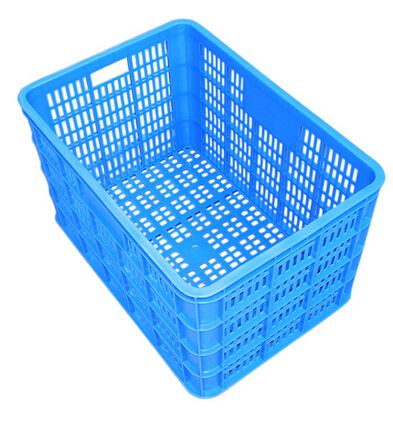

HQT-X Serie Plastic Crate Injection Machine
——Special designed injection unit and screw can increase plasticizing capacity and reduce forming time.
——Innovation of additional ejection device and optimized hydraulic circuit design improve production efficiency.





















Item Unit HQT-450
INJECTION UNIT   A B C
Screw Diameter mm 75 80 85
Screw L/D Ratio  L/D 21.3 20 18.8
Shot Volume(Theoretical) cm3 1643 1870 2111
Injection Weight(PS) G 1496 1702 1921
Plasticizing Capacity(PS) g/s 45.0 56.2 62.3
Injection Rate g/s 394 448 506
Injection Pressure Mpa 173 152 135
Screw Speed r/min 150
CLAMPING UNIT
Clamp Tonnage KN 4500
Toggle Stroke mm 740
Space Between Tie Bars mm 780×780
Min.Max. Mould Height mm 300-780
Ejector Stroke mm 200
Ejector Tonnage KN 125
Ejector Number   13
OTHERS
System Pressure (mpa) 16
Pump Motor Power (kw) 45
Heater Power (kw) 23.6
Machine Dimension(L×W×H) m 7.79×2.2×2.75
Oil Tank Capacity L 1217
Machine Weight Tonelada 19
