HQT-4000 crate injection machine

Release time：2020-10-07 16:20viewed：times

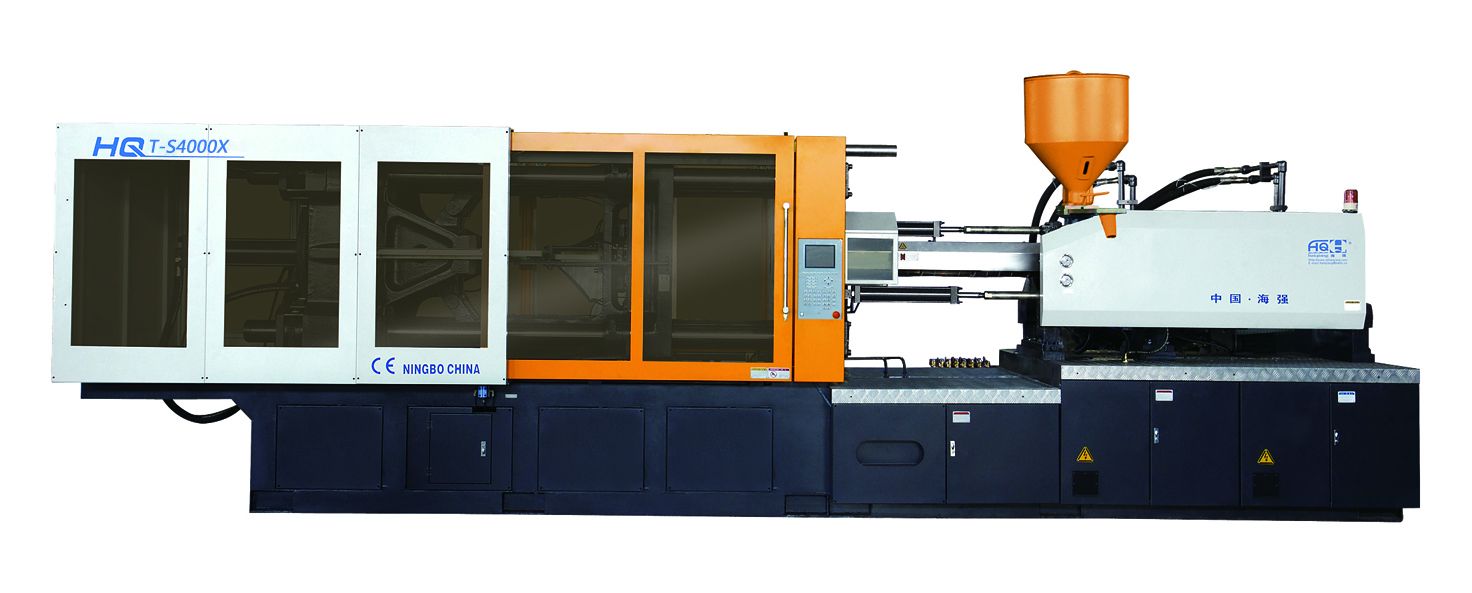

HQT-4000 crate injection machine

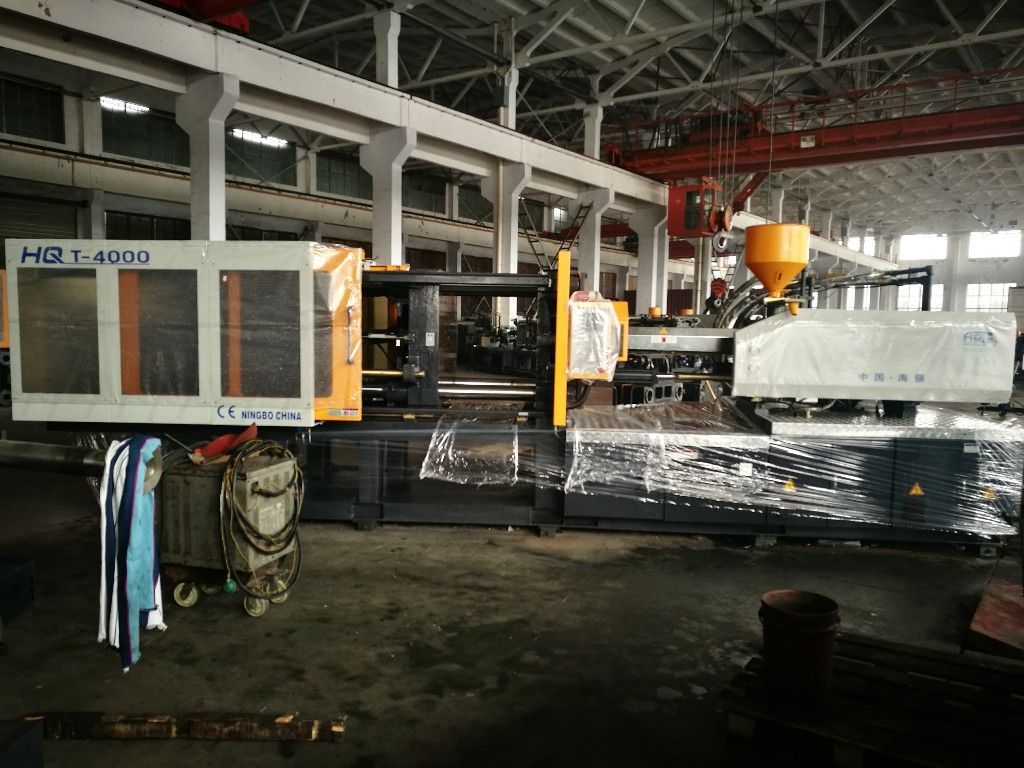

HQT-4000 injection molding machine sent to Philipean customer of home appliance manufacturer.

HQT-X Serie Plastic Crate Injection Machine

——Special designed injection unit and screw can increase plasticizing capacity and reduce forming time.

——Innovation of additional ejection device and optimized hydraulic circuit design improve production efficiency.

Item	Unit	HQT-400
INJECTION UNIT		A	B	C
Screw Diameter	mm	70	75	80
Screw L/D Ratio	L/D	23	21.5	20.1
Shot Volume(Theoretical)	cm3	1347	1546	1759
Injection Weight(PS)	G	1226	1407	1601
Plasticizing Capacity(PS)	g/s	44.9	51.4	58.7
Injection Rate	g/s	324	372	423
Injection Pressure	Mpa	199	173	152
Screw Speed	r/min	200
CLAMPING UNIT
Clamp Tonnage	KN	4000
Toggle Stroke	mm	700
Space Between Tie Bars	mm	720×720
Min.Max. Mould Height	mm	250-780
Ejector Stroke	mm	160
Ejector Tonnage	KN	100
Ejector Number		13
OTHERS
System Pressure	（mpa）	16
Pump Motor Power	（kw）	37
Heater Power	（kw）	23
Machine Dimension(L×W×H)	m	7.26×1.93×2.1
Oil Tank Capacity	L	902
Machine Weight	Tonelada	18
