HQT 1700 G high speed thin wall injection machine

Release time：2020-10-07 11:10viewed：times

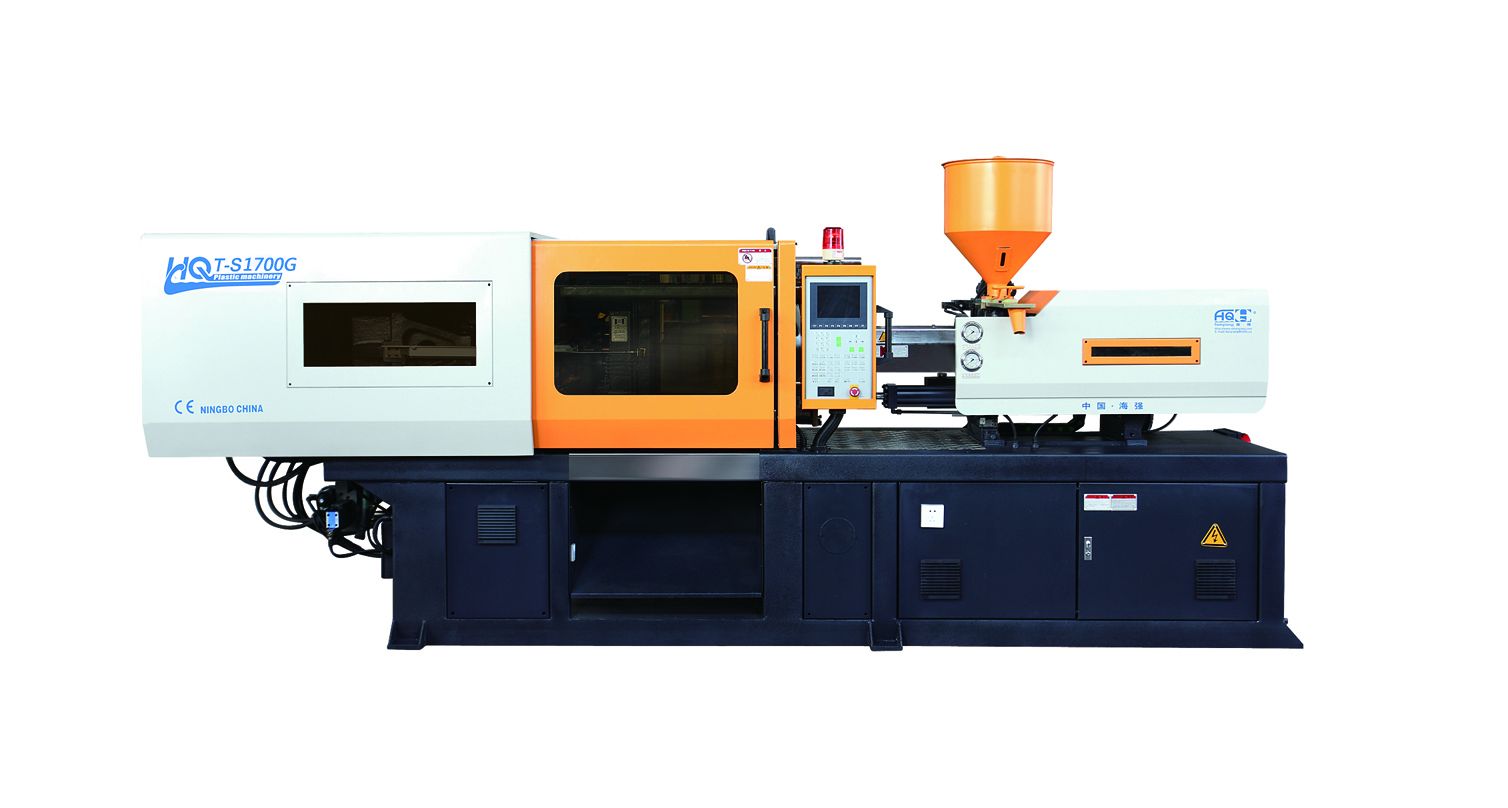

HQT 1700 G high speed thin wall injection machine

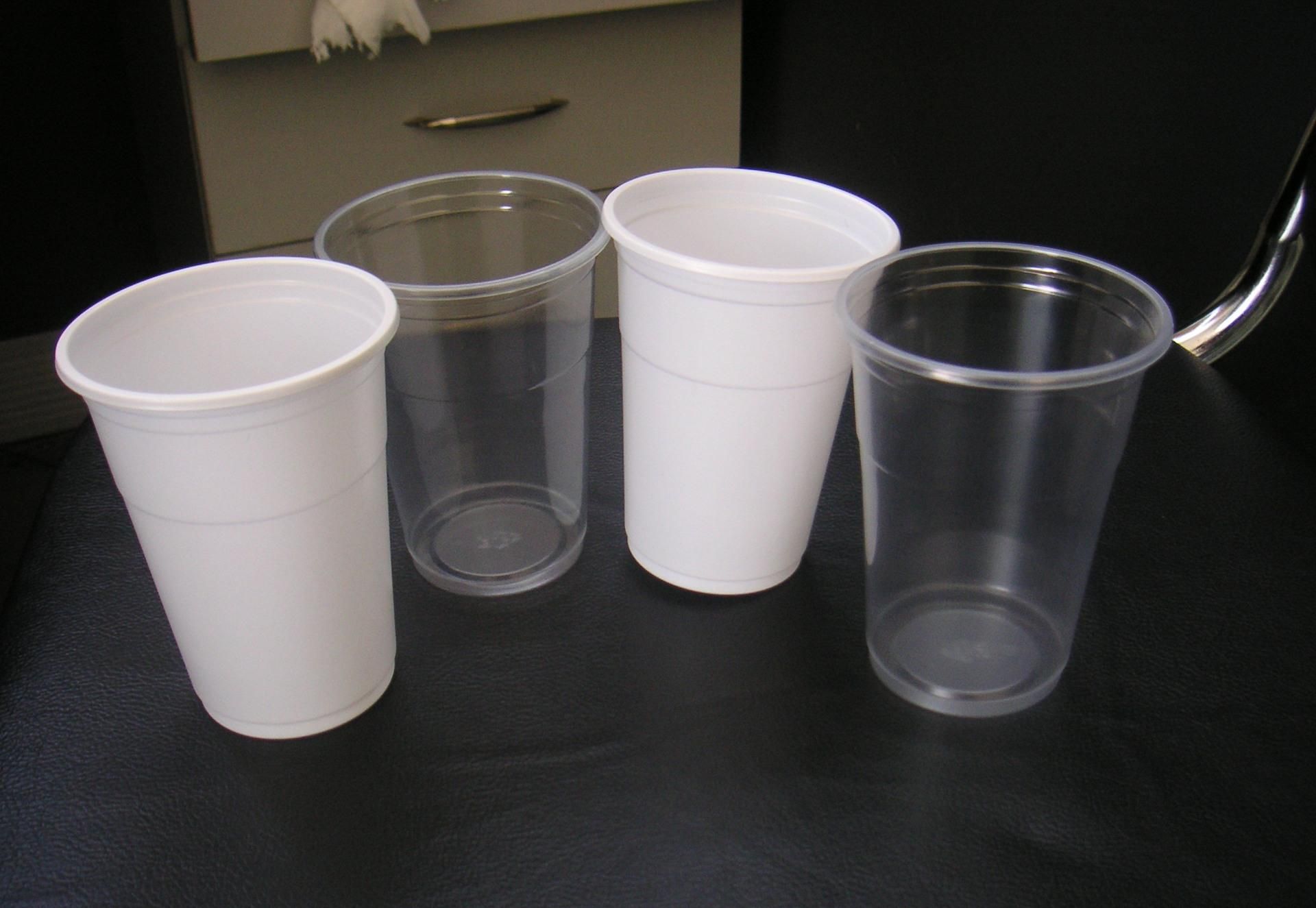

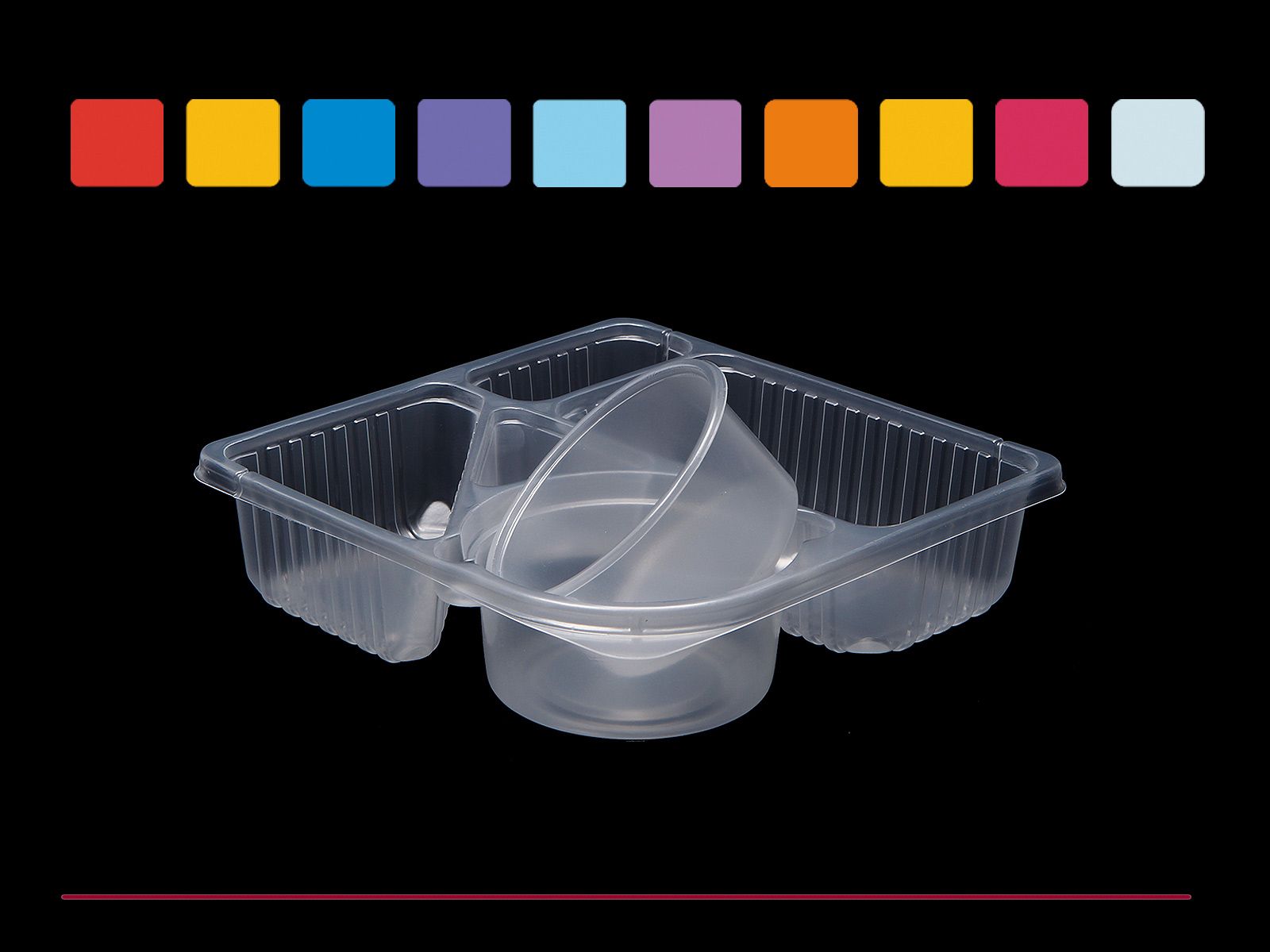

High speed machine working  with  2 cavities disposible food container of 4.5 seconds production cycle.


high speed thin wall injection machine
HQT-G serie
——Clamping unit with improved rigidity meets the requirement of high injection spped and pressure, and extends the service life of mould.
——Hydraulic accumulator alocated with high quality proportional valves accelerates the injection velocity significantly.
——Fast injection rates and response assured by optimized hydraulic system.
——High precision control system can enhance the accuracy of movement, and make machine work reliably.













Item UNIT HQT 170 G
INJECTION UNIT 　
Screw Diameter mm 43
Screw L/D Ratio L/D 20
Shot Volume(Theoretical) cm3 350
Injection Weight(PS) g 319
Injection Rate g/s 160
Injection Pressure Mpa 177
Screw Speed r/min 225
CLAMPING UNIT 　 　
Clamp Tonnage KN 1700
Toggle Stroke mm 435
Space Between Tie Bars mm 470×470
Max.Mould Height mm 500
Min.Mould Height mm 180
Ejector Stroke mm 135
Ejector Tonnage KN 50
OTHERS 　 　
System Pressure Mpa 16
Pump Motor Power KW 29
Heater Power KW 15.5
Machine Dimension(L×W×H) m 5.4x1.3x2.1
Oil Tank Capacity L 300
Machine Weight T 5.4
