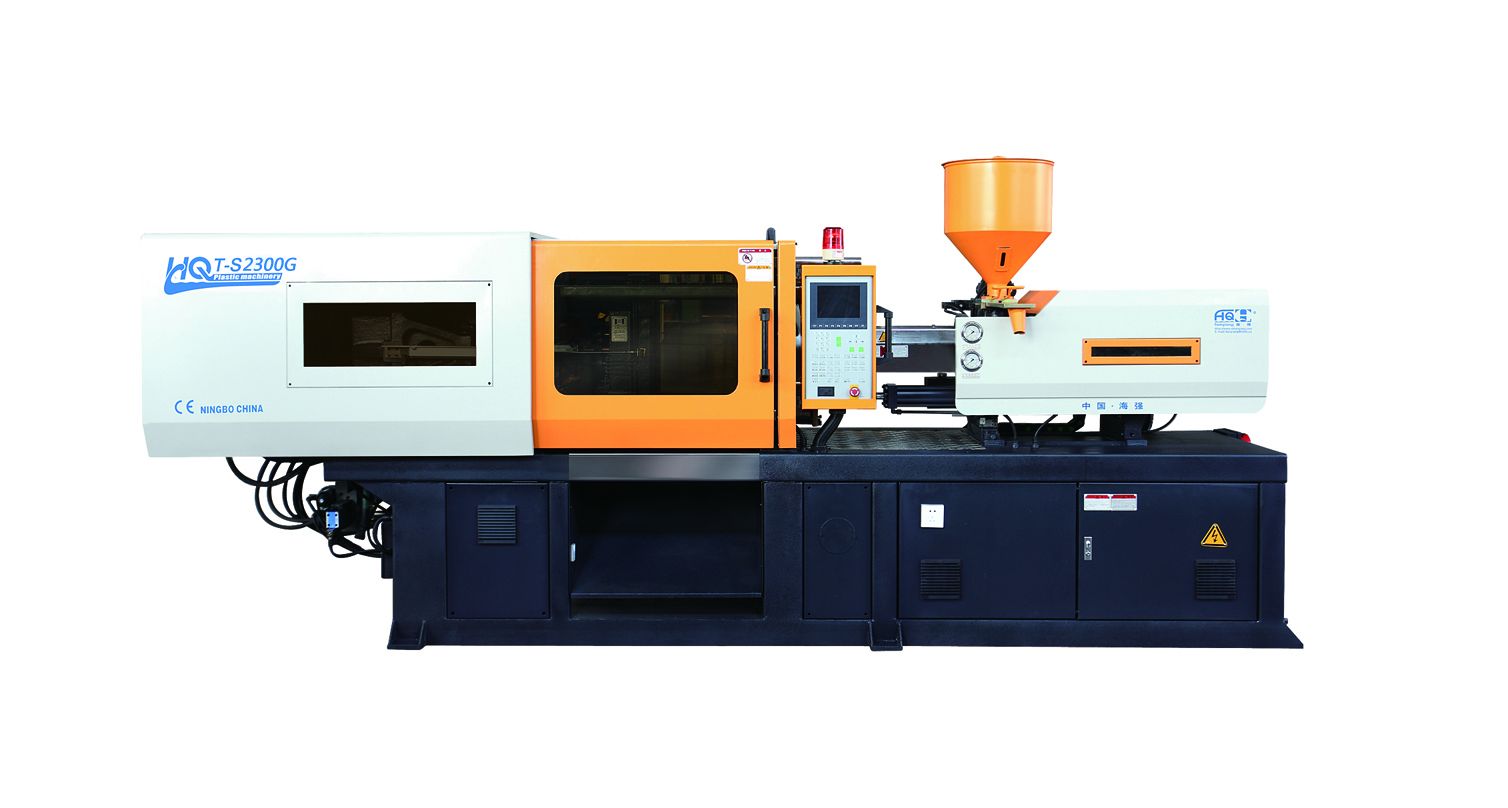

HQT 2300 G high speed thin wall injection machine

Release time:2020-10-07 11:10viewed:times

HQT 2300 G high speed thin wall injection machine

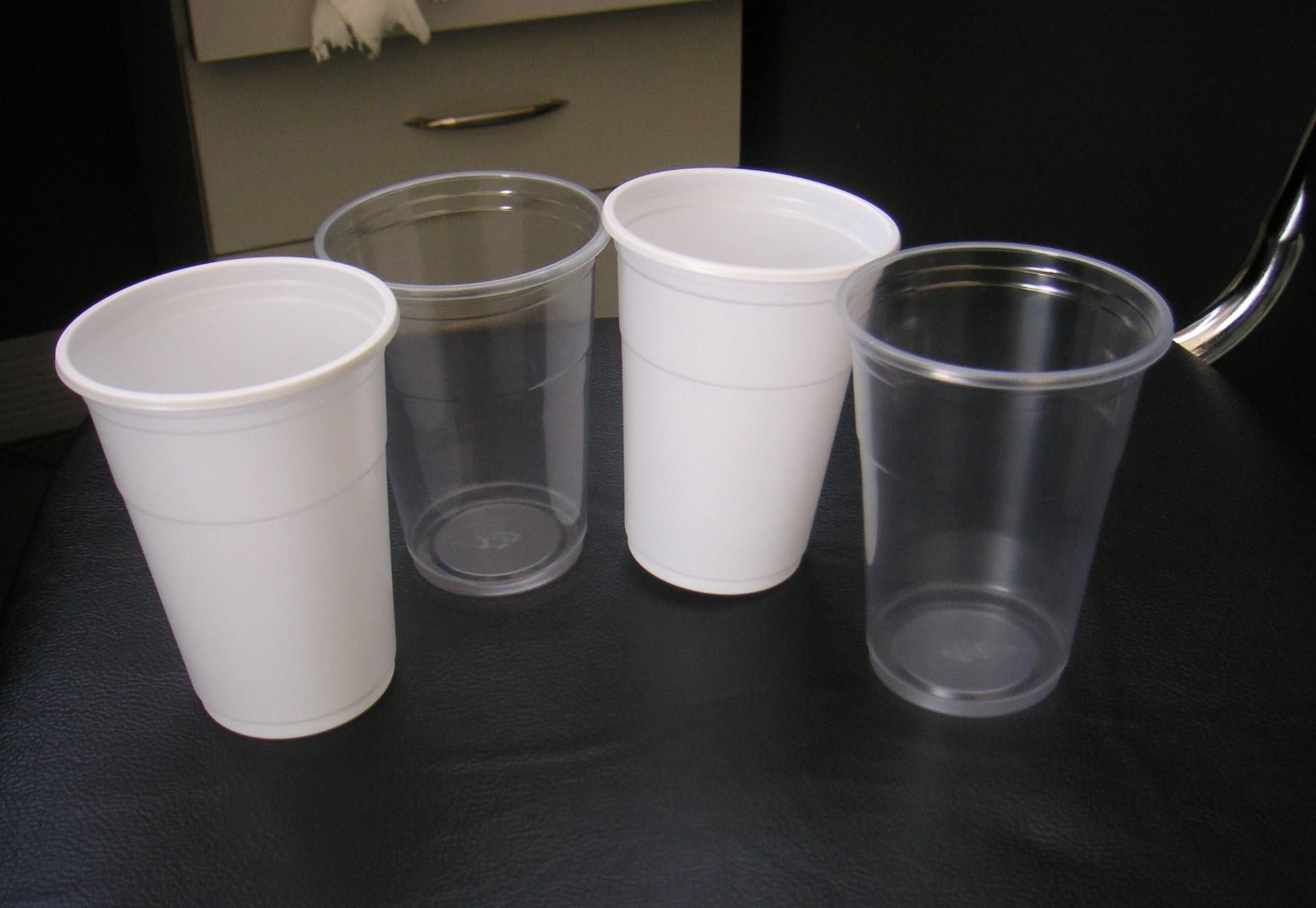

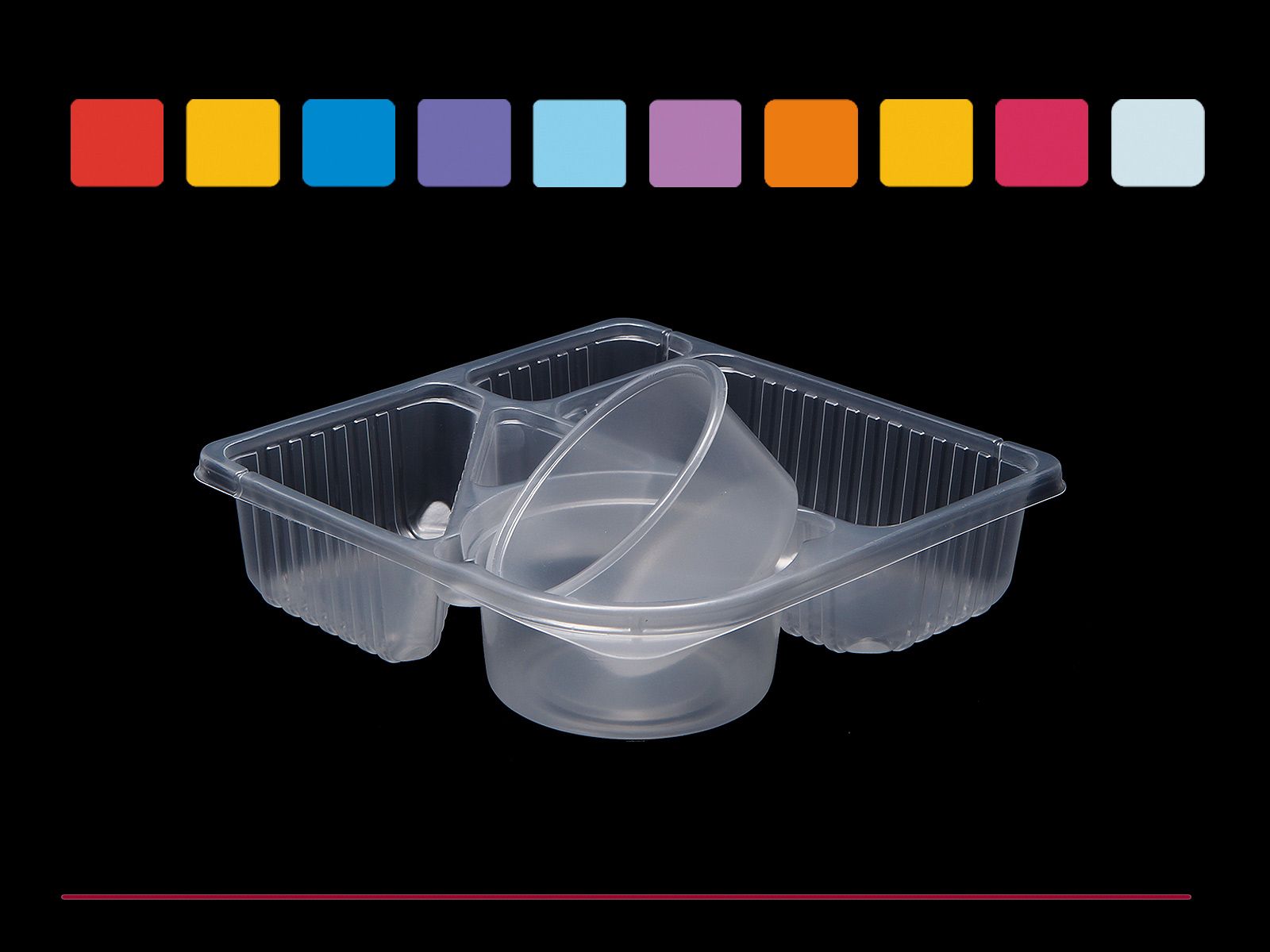

High speed machine working  with  2 cavities disposible food container of 4.5 seconds production cycle.




high speed thin wall injection machine
HQT-G serie
——Clamping unit with improved rigidity meets the requirement of high injection spped and pressure, and extends the service life of mould.
——Hydraulic accumulator alocated with high quality proportional valves accelerates the injection velocity significantly.
——Fast injection rates and response assured by optimized hydraulic system.
——High precision control system can enhance the accuracy of movement, and make machine work reliably.













Item UNIT HQT 230 G
INJECTION UNIT
Screw Diameter mm 47
Screw L/D Ratio L/D 22
Shot Volume(Theoretical) cm3 420
Injection Weight(PS) g 383
Injection Rate g/s 154
Injection Pressure Mpa 168
Screw Speed r/min 190
CLAMPING UNIT
Clamp Tonnage KN 2300
Toggle Stroke mm 495
Space Between Tie Bars mm 520×520
Max.Mould Height mm 530
Min.Mould Height mm 200
Ejector Stroke mm 140
Ejector Tonnage KN 70
OTHERS
System Pressure Mpa 16
Pump Motor Power KW 36.6
Heater Power KW 17
Machine Dimension(L×W×H) m 5.78x1.35x2.2
Oil Tank Capacity L 300
Machine Weight T 7.5
