HQT 1400 G high speed thin wall injection machine

Release time：2020-10-07 11:09viewed：times

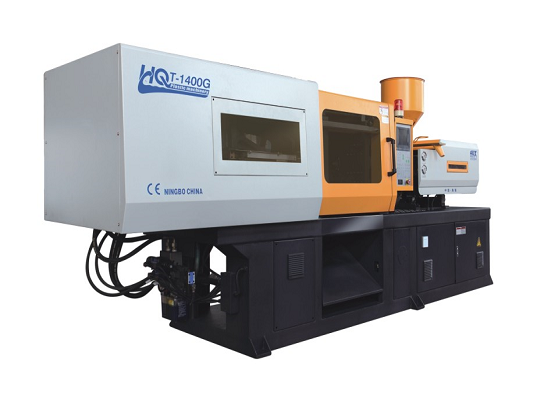

HQT 1400 G high speed thin wall injection machine



High speed machine working  with  2 cavities disposible food container of 4.5 seconds production cycle.







high speed thin wall injection machine
HQT-G serie
——Clamping unit with improved rigidity meets the requirement of high injection spped and pressure, and extends the service life of mould.
——Hydraulic accumulator alocated with high quality proportional valves accelerates the injection velocity significantly.
——Fast injection rates and response assured by optimized hydraulic system.
——High precision control system can enhance the accuracy of movement, and make machine work reliably.













Item UNIT HQT 140 G
INJECTION UNIT 　
Screw Diameter mm 40
Screw L/D Ratio L/D 20
Shot Volume(Theoretical) cm3 235
Injection Weight(PS) g 216
Injection Rate g/s 115
Injection Pressure Mpa 170
Screw Speed r/min 190
CLAMPING UNIT 　 　
Clamp Tonnage KN 1400
Toggle Stroke mm 380
Space Between Tie Bars mm 460×460
Max.Mould Height mm 470
Min.Mould Height mm 145
Ejector Stroke mm 120
Ejector Tonnage KN 38
OTHERS 　 　
System Pressure Mpa 16
Pump Motor Power KW 22
Heater Power KW 12.2
Machine Dimension(L×W×H) m 4.8 x 1.3x 1.9
Oil Tank Capacity L 300
Machine Weight T 4
