HQT- 3200 PET injection molding machine

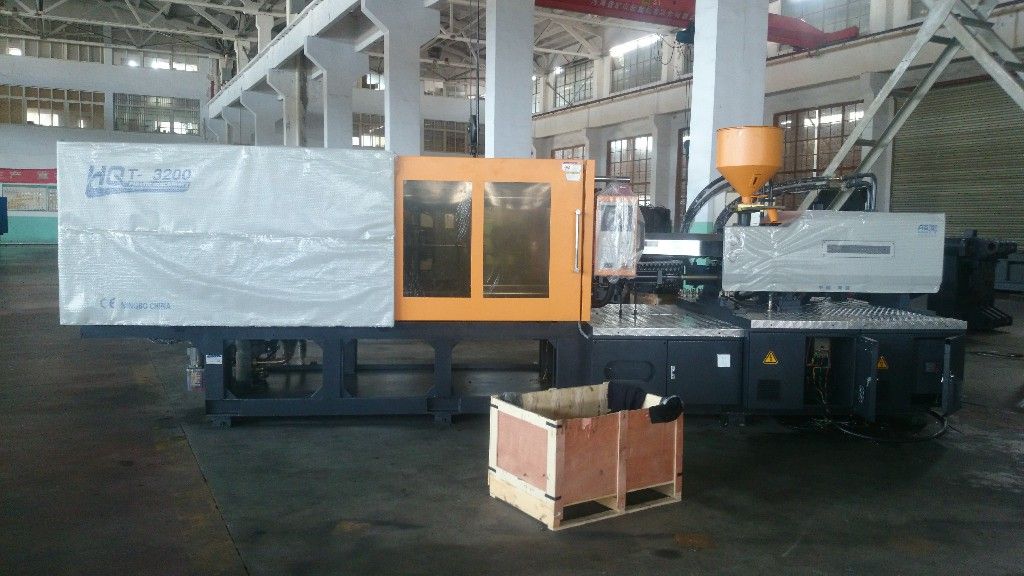

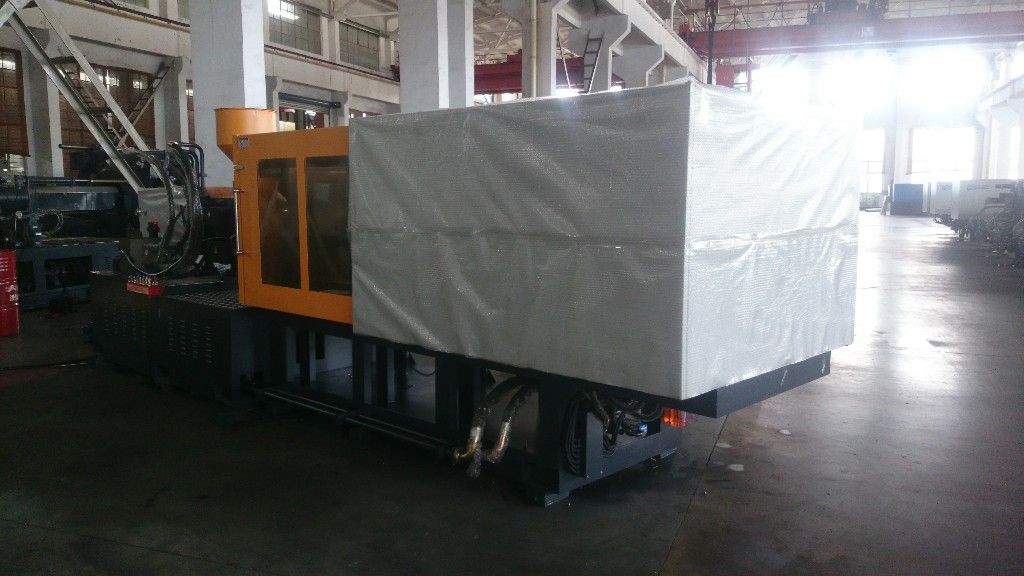

268 ton servomotor machine injecting 300 gr PET drum preform with help of three-in-one dehumidifier in customer factory.

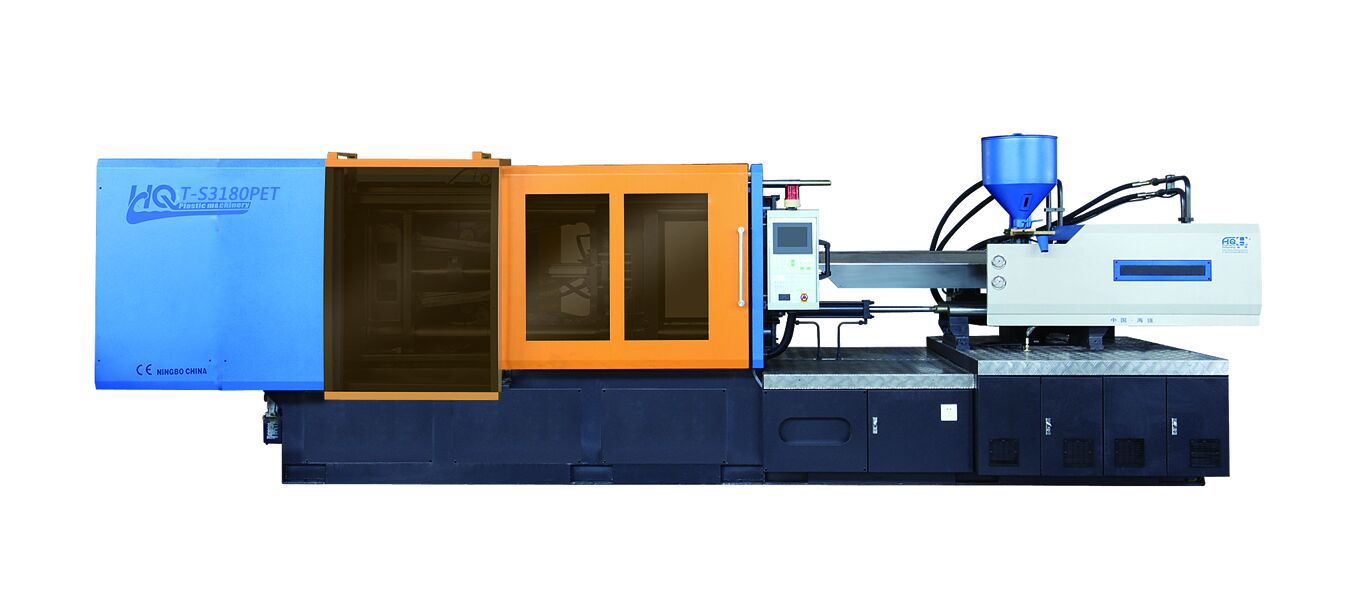

HQT-PET serie PET Preform Injection Machine

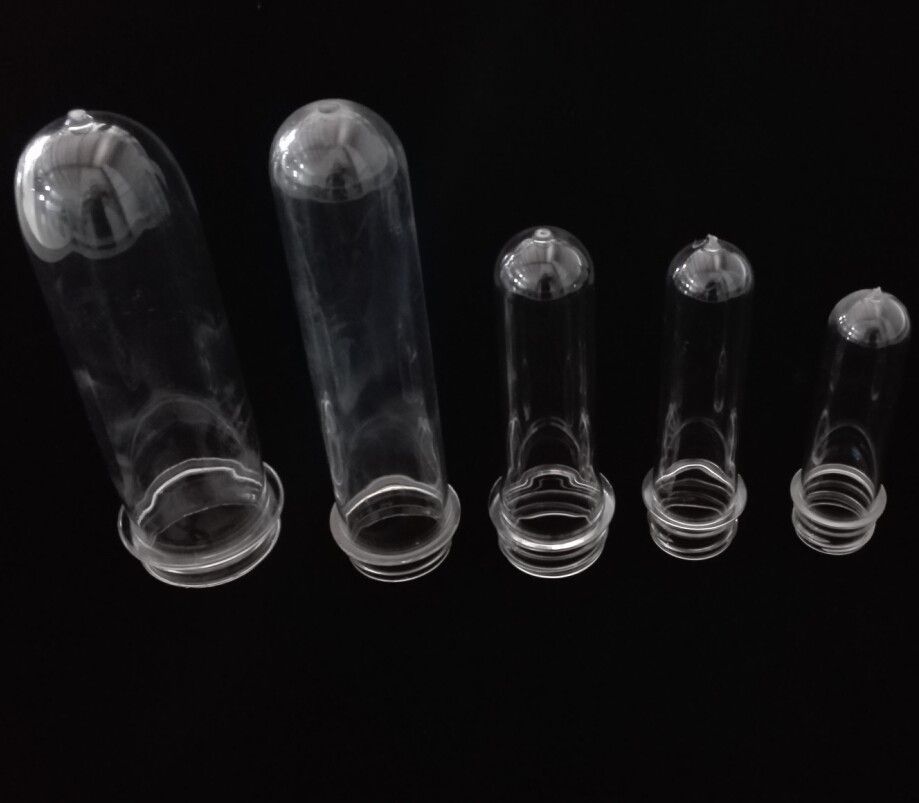

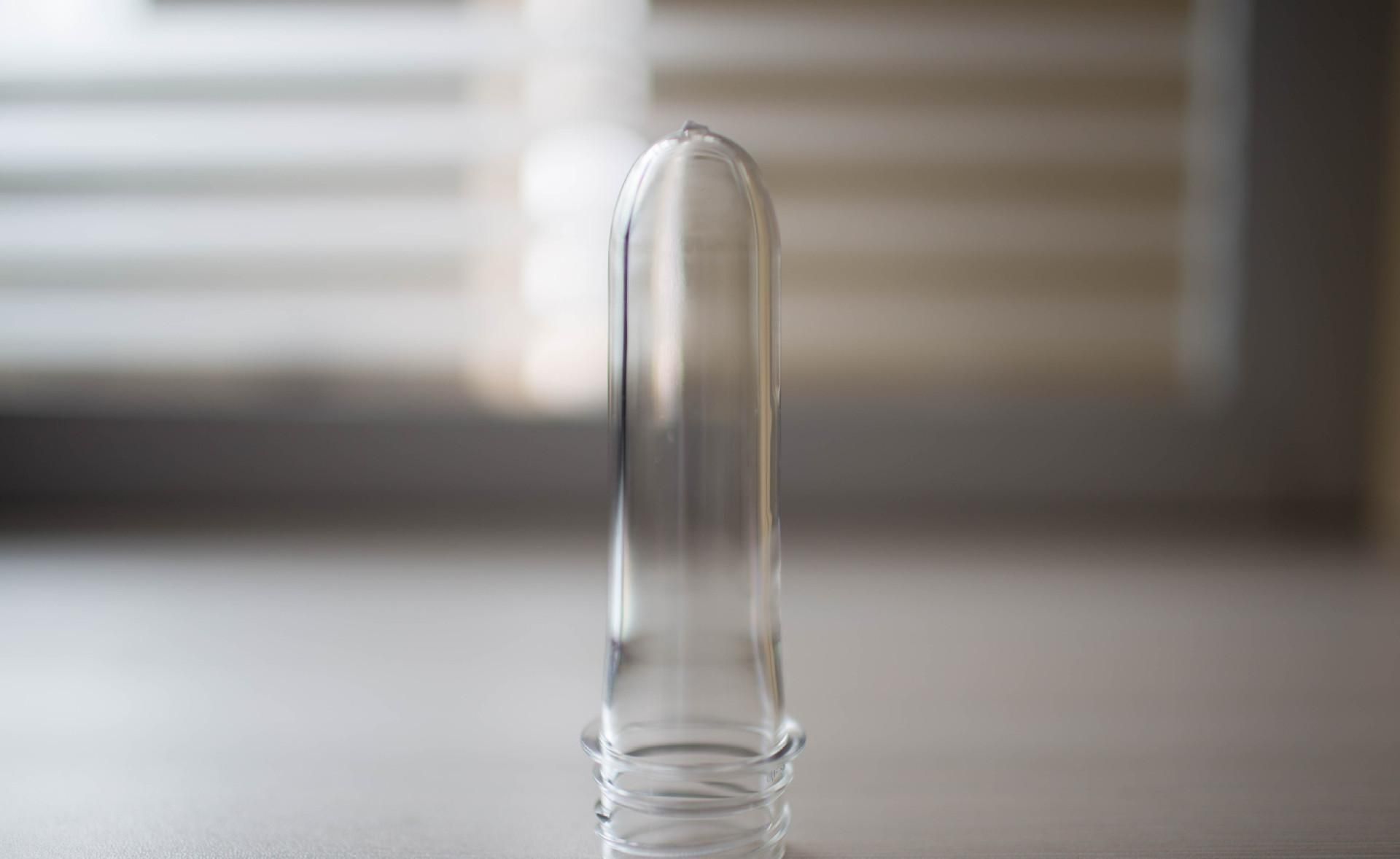

——Special screw for PET material, with bigger L/D ratio, screw diameter ect, reduces acetaldehyde aldehyde content to meet food packaging standard, and makes sure preform to be completely transparent and bright.
——Special clamping and inject unit to meet PET products requirement.

Item	Unit	HQT- 320 PET
INJECTION UNIT
Screw Diameter	mm	75
Screw L/D Ratio	L/D	22
Shot Volume(Theoretical)	cm3	1458
Injection Weight(PS)	G	1545
Plasticizing Capacity(PS)	g/s	42.0
Injection Rate	g/s	443
Injection Pressure	Mpa	122
Screw Speed	r/min	220
CLAMPING UNIT
Clamp Tonnage	KN	3200
Toggle Stroke	mm	570
Space Between Tie Bars	mm	640×600
Min.Max. Mould Height	mm	240-640
Ejector Stroke	mm	150
Ejector Tonnage	KN	70
Ejector Number		9
OTHERS
System Pressure	（mpa）	16
Pump Motor Power	（kw）	30
Heater Power	（kw）	21.05
Machine Dimension(L×W×H)	m	6.81×1.77×2.23
Oil Tank Capacity	L	884
Machine Weight	Tonelada	12
