HQT-2800 PET injection molding machine

Release time：2020-10-07 16:18viewed：times

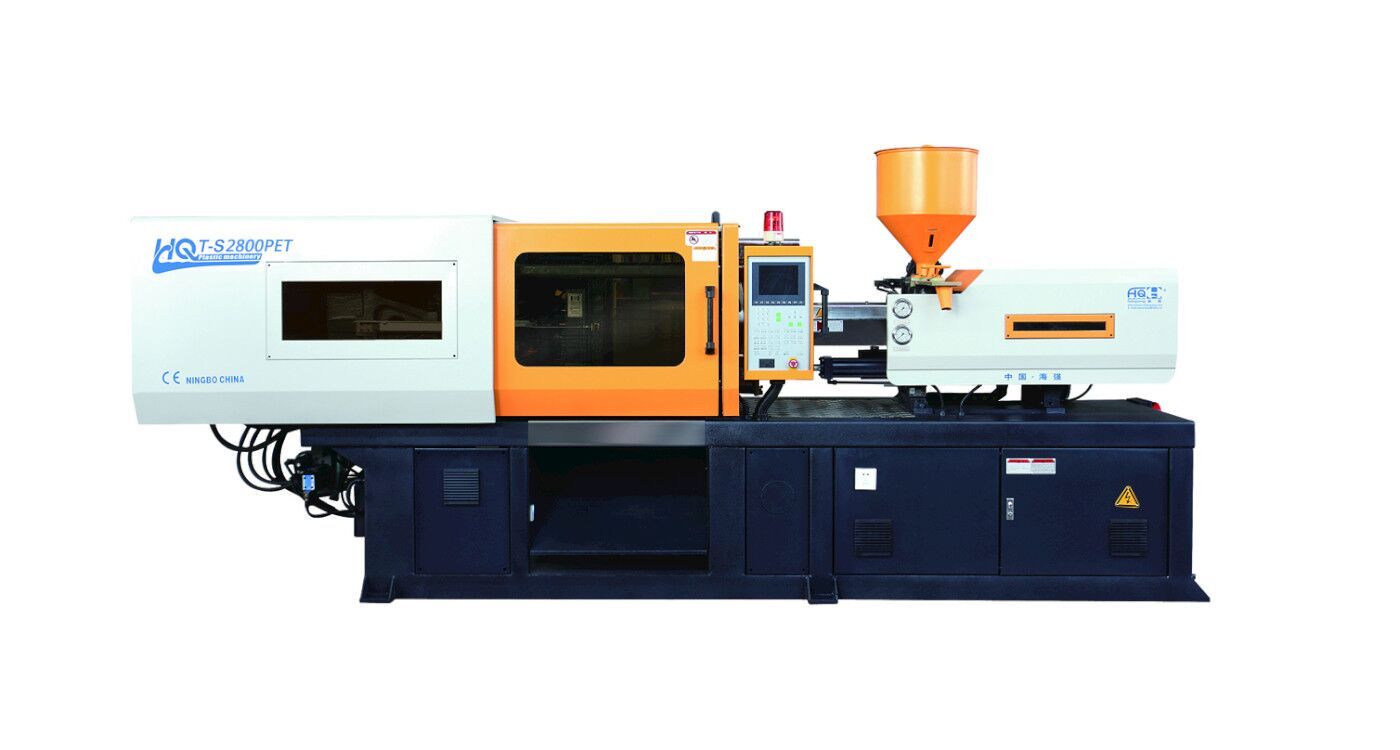

HQT-2800 PET injection molding machine

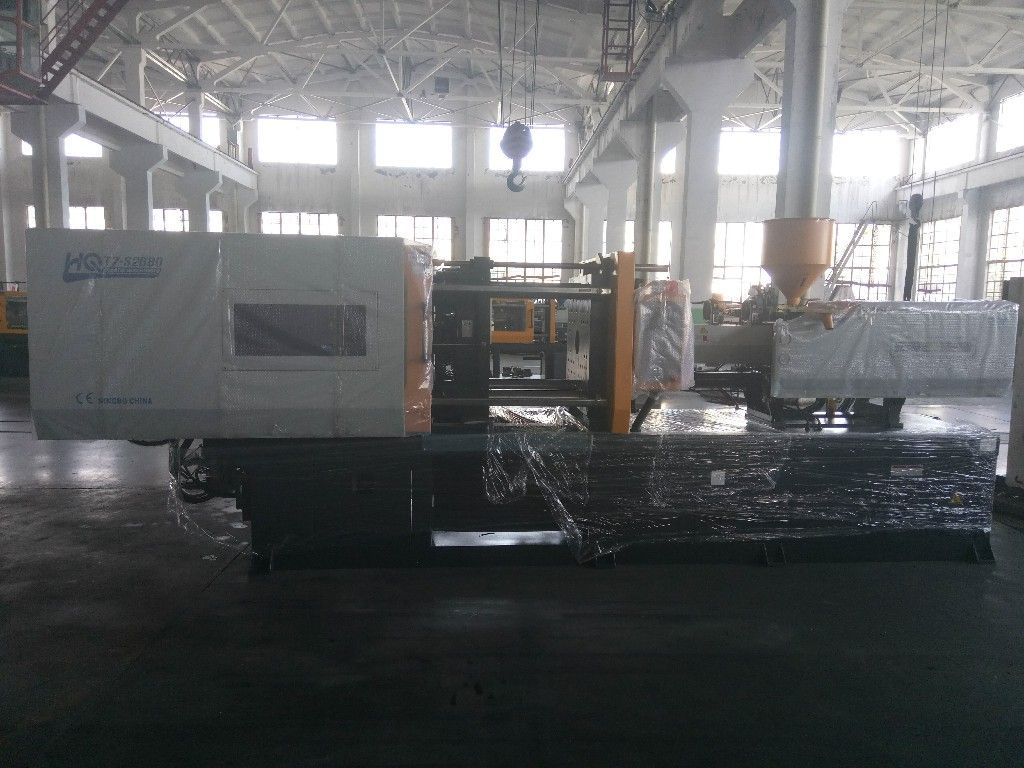

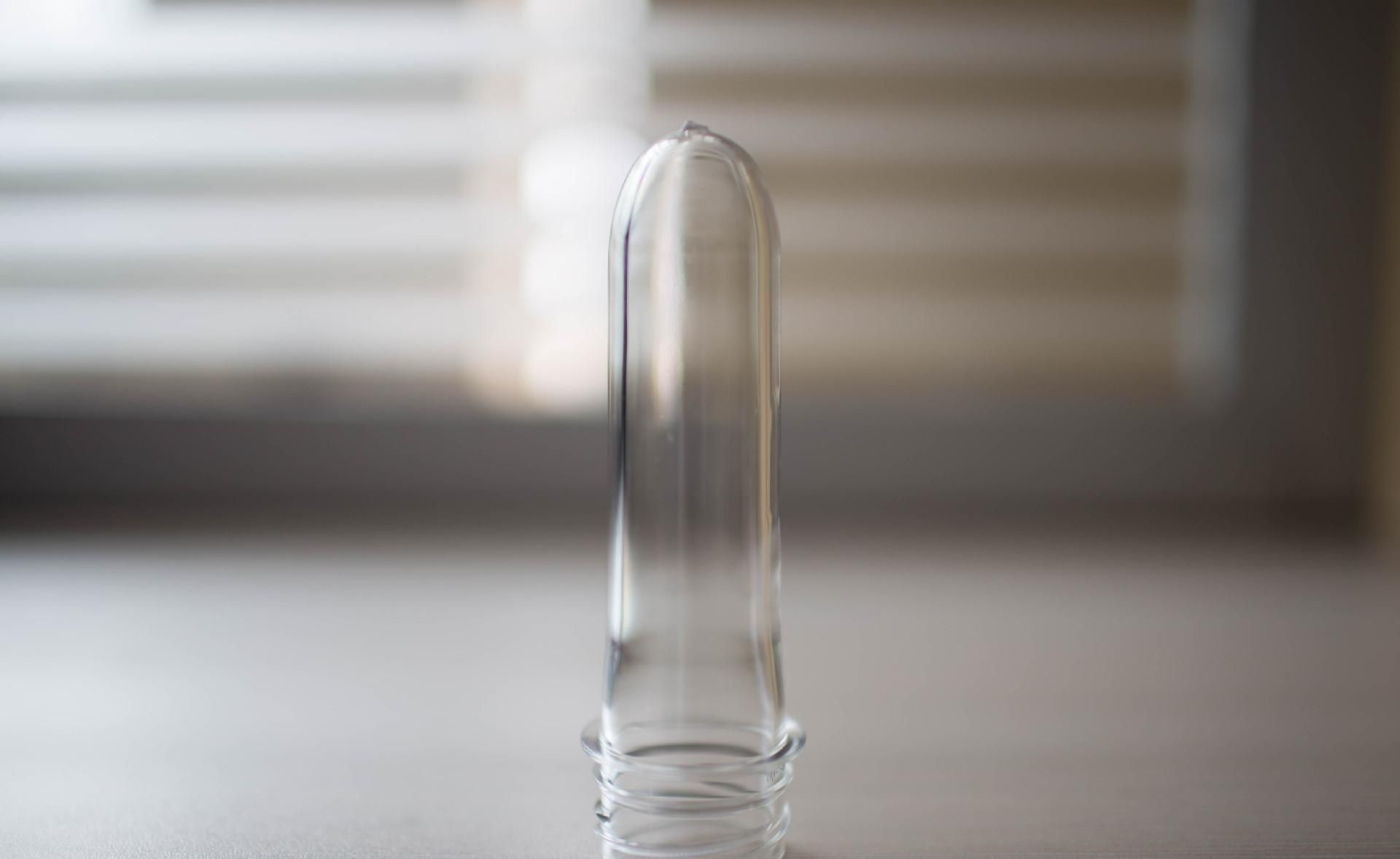

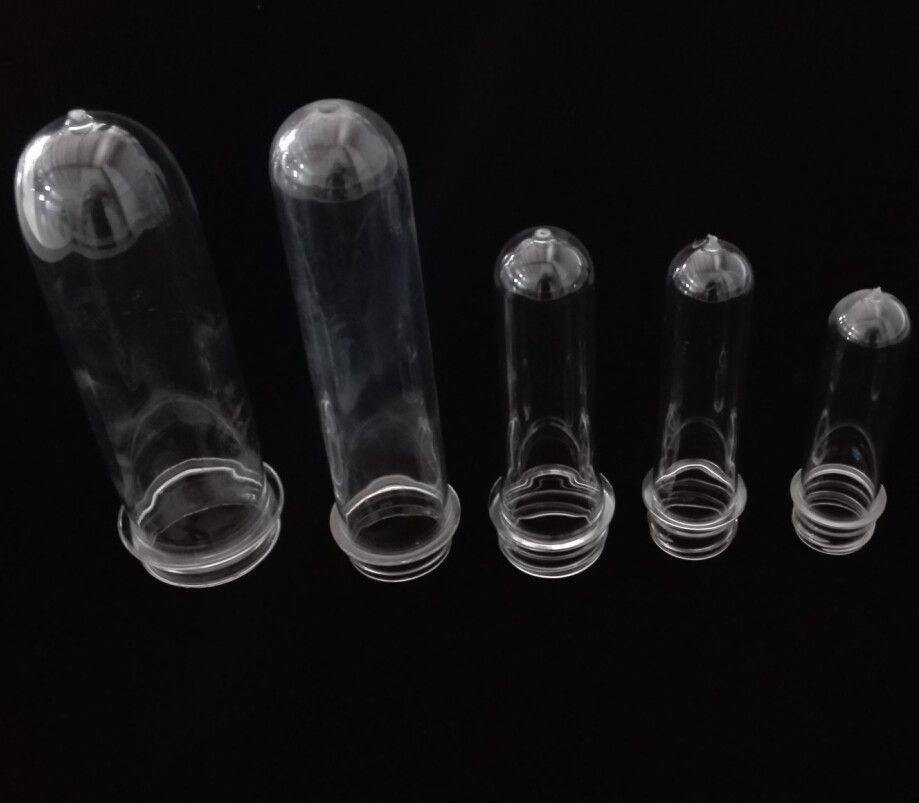

268 ton servomotor machine injecting 300 gr PET drum preform with help of three-in-one dehumidifier in customer factory.

HQT-PET serie PET Preform Injection Machine
——Special screw for PET material, with bigger L/D ratio, screw diameter ect, reduces acetaldehyde aldehyde content to meet food packaging standard, and makes sure preform to be completely transparent and bright.
——Special clamping and inject unit to meet PET products requirement.

Item	Unit	HQT-280 PET
INJECTION UNIT
Screw Diameter	mm	70
Screw L/D Ratio	L/D	22
Shot Volume(Theoretical)	cm3	1116
Injection Weight(PS)	G	1180
Plasticizing Capacity(PS)	g/s	36.2
Injection Rate	g/s	341
Injection Pressure	Mpa	123
Screw Speed	r/min	200
CLAMPING UNIT
Clamp Tonnage	KN	2280
Toggle Stroke	mm	550
Space Between Tie Bars	mm	580×560
Min.Max. Mould Height	mm	220-570
Ejector Stroke	mm	140
Ejector Tonnage	KN	70
Ejector Number		9
OTHERS
System Pressure	（mpa）	16
Pump Motor Power	（kw）	22
Heater Power	（kw）	14
Machine Dimension(L×W×H)	m	6.21×1.69×2.21
Oil Tank Capacity	L	613
Machine Weight	Tonelada	9.5
