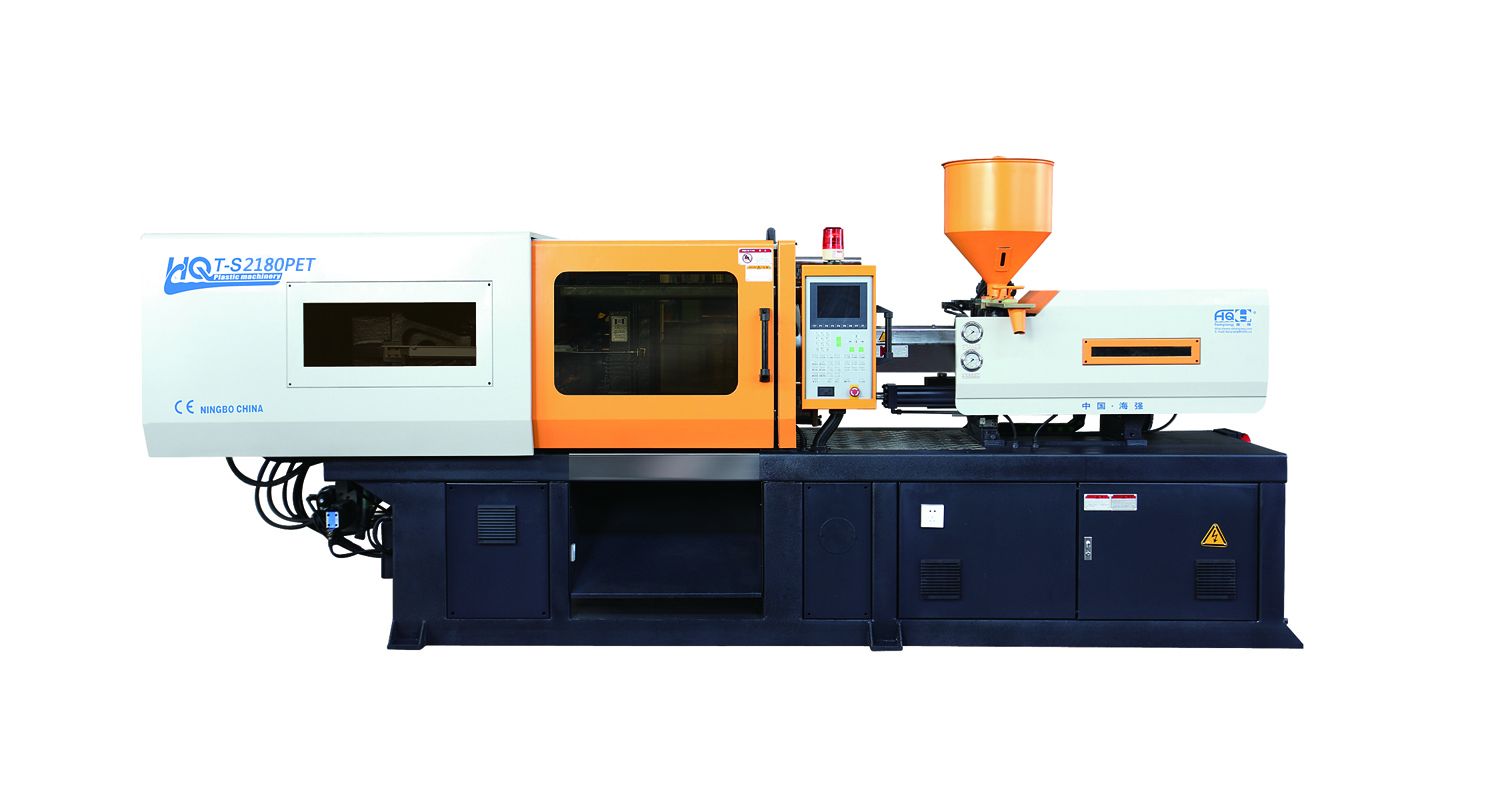

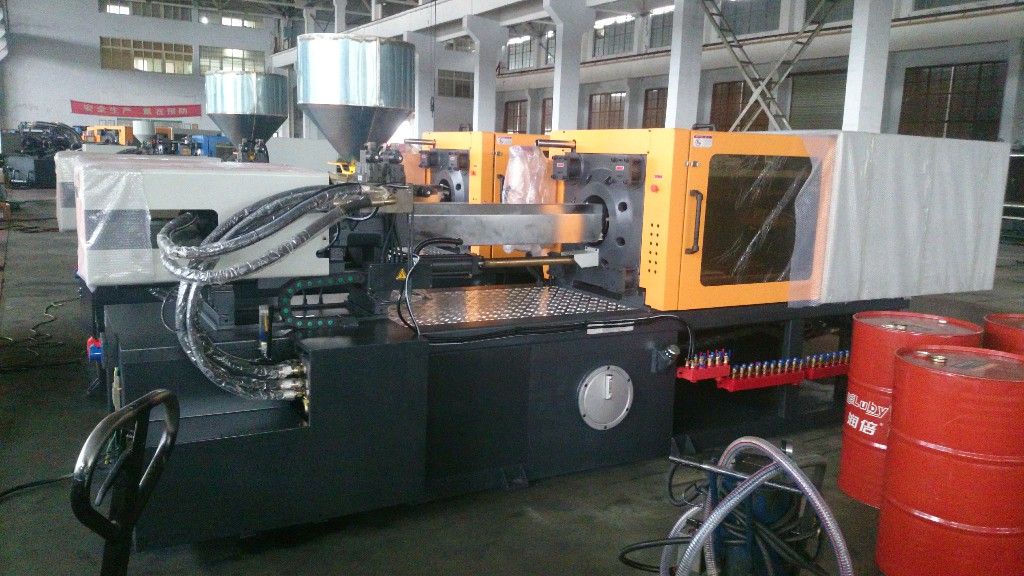

HQT-2180 PET injection molding machine

Release time：2020-10-07 16:19viewed：times

HQT-2180 PET injection molding machine

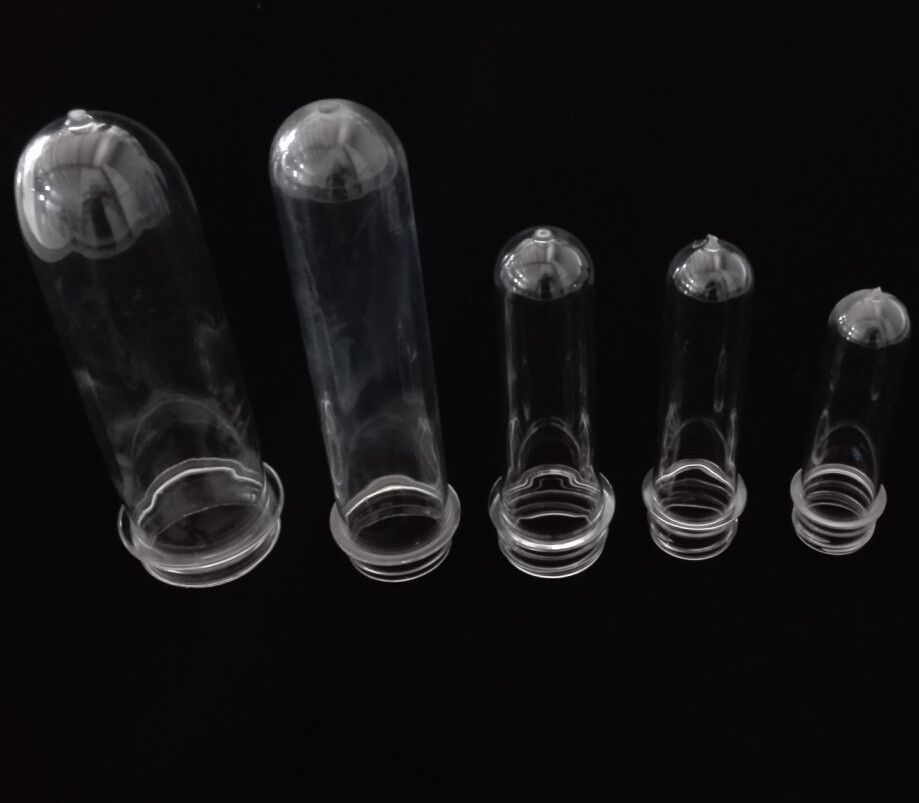

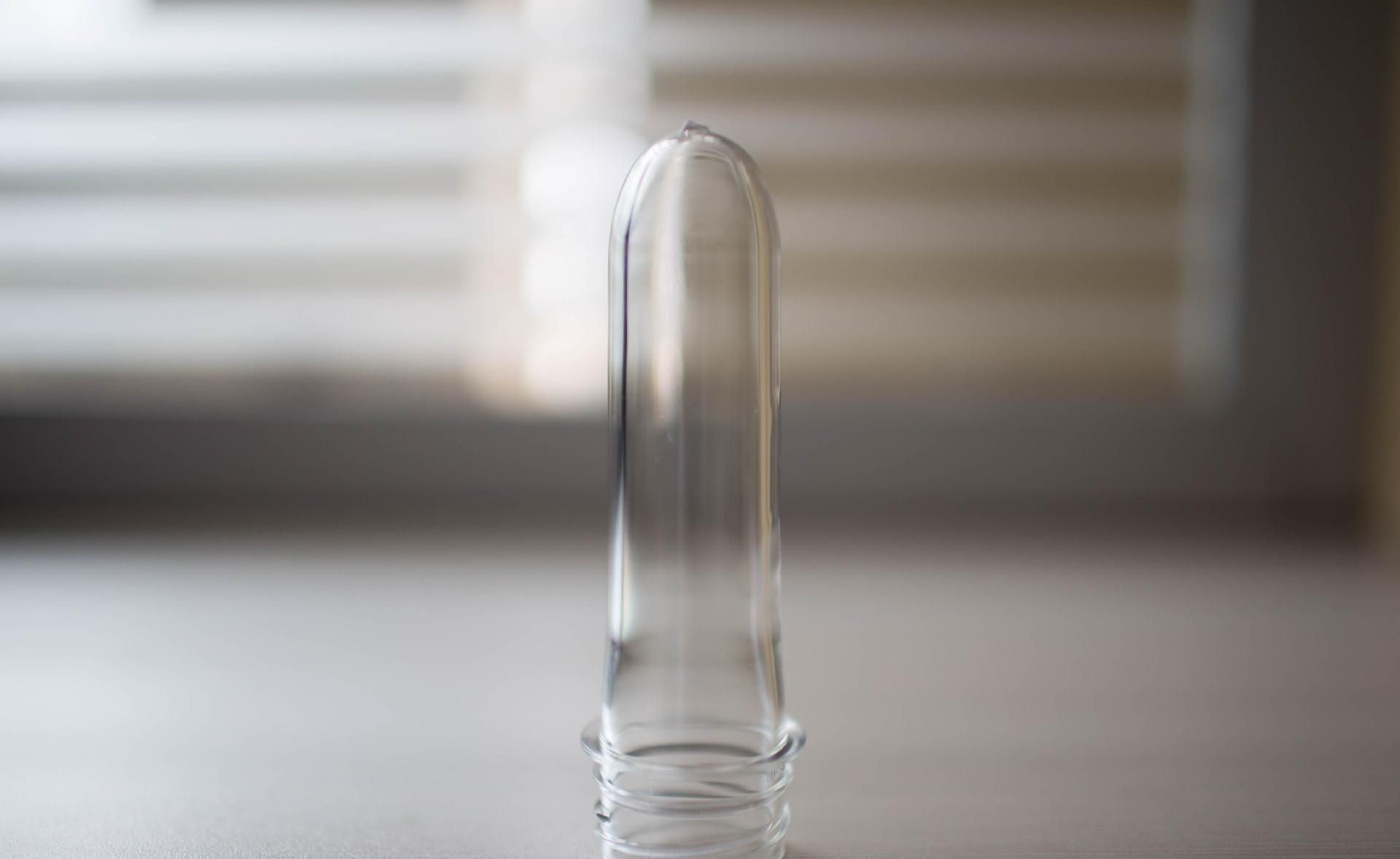

160 ton injection molding machinewith robot producing 28 mm 26 gr PET preform mold, taken in customer factory in China.

HQT-PET serie PET Preform Injection Machine
——Special screw for PET material, with bigger L/D ratio, screw diameter ect, reduces acetaldehyde aldehyde content to meet food packaging standard, and makes sure preform to be completely transparent and bright.
——Special clamping and inject unit to meet PET products requirement.

Item	Unit	HQT-218 PET
INJECTION UNIT
Screw Diameter	mm	60
Screw L/D Ratio	L/D	22
Shot Volume(Theoretical)	cm3	790
Injection Weight(PS)	G	840
Plasticizing Capacity(PS)	g/s	26.0
Injection Rate	g/s	244
Injection Pressure	Mpa	116
Screw Speed	r/min	180
CLAMPING UNIT
Clamp Tonnage	KN	2180
Toggle Stroke	mm	470
Space Between Tie Bars	mm	510×510
Min.Max. Mould Height	mm	200-520
Ejector Stroke	mm	130
Ejector Tonnage	KN	70
Ejector Number		5
OTHERS
System Pressure	（mpa）	16

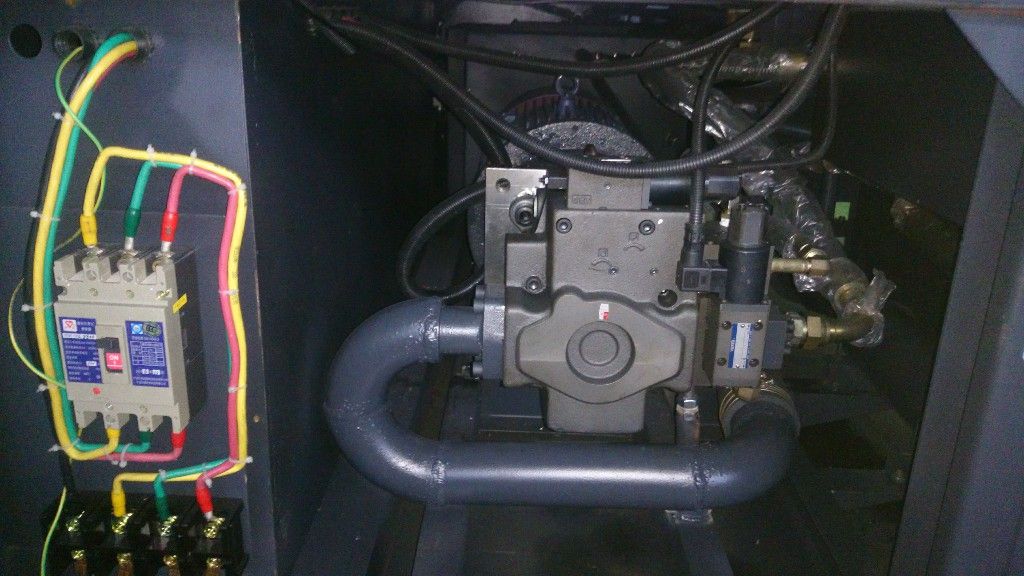

Pump Motor Power	（kw）	18.5
Heater Power	（kw）	12.55
Machine Dimension(L×W×H)	m	5.54×1.57×1.97
Oil Tank Capacity	L	495
Machine Weight	Tonelada	7.2
