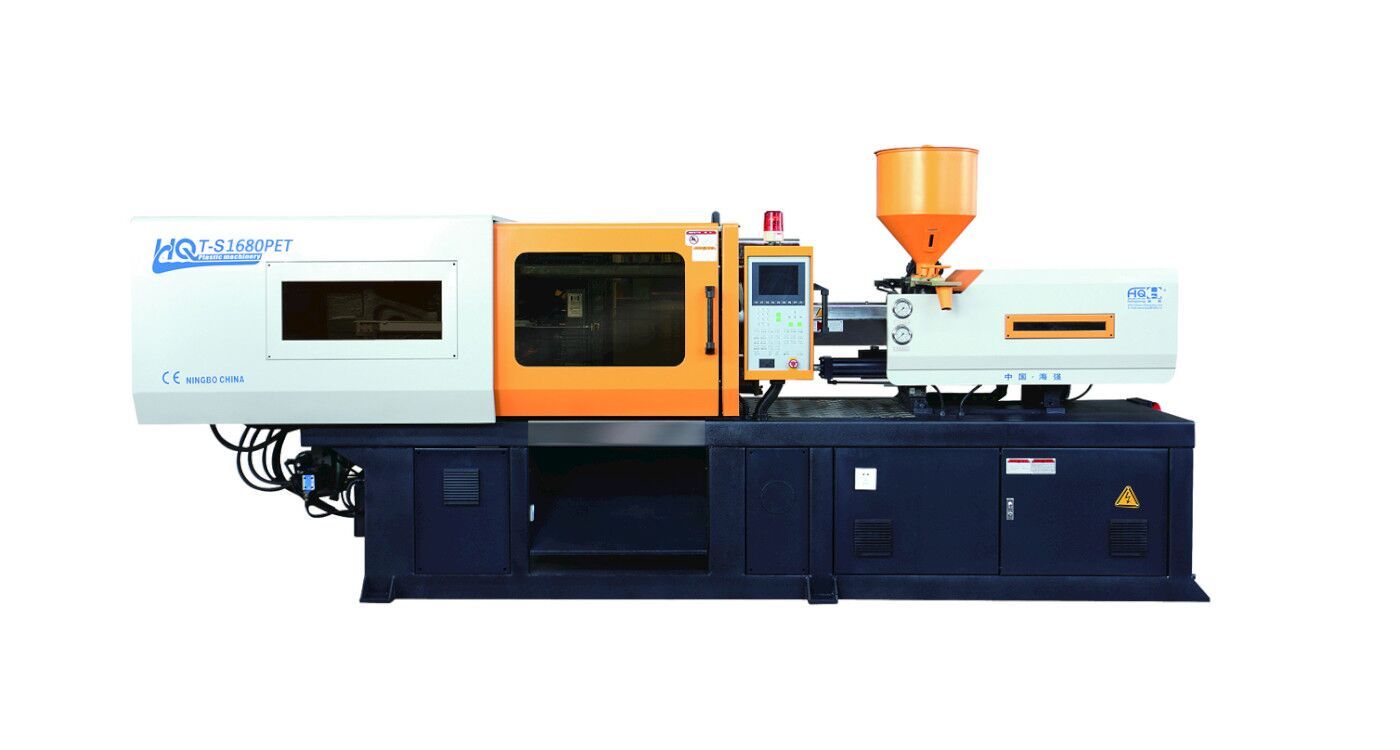

HQT-1680 PET injection molding machine

Release time：2020-10-07 16:19viewed：times

HQT-1680 PET injection molding machine

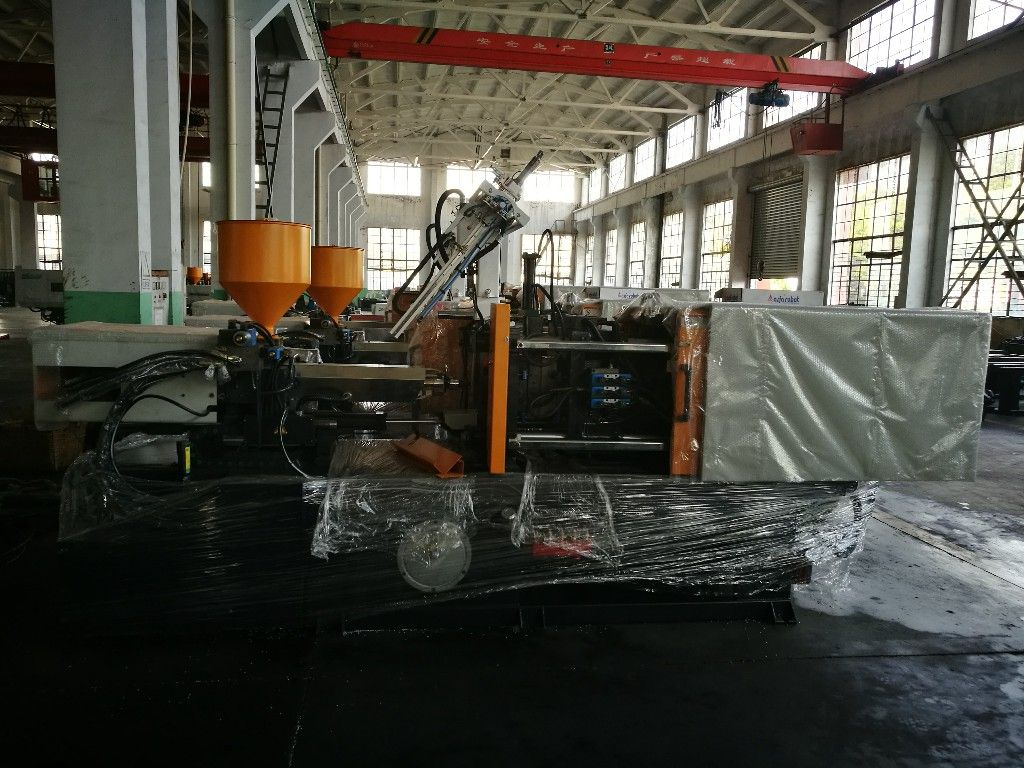

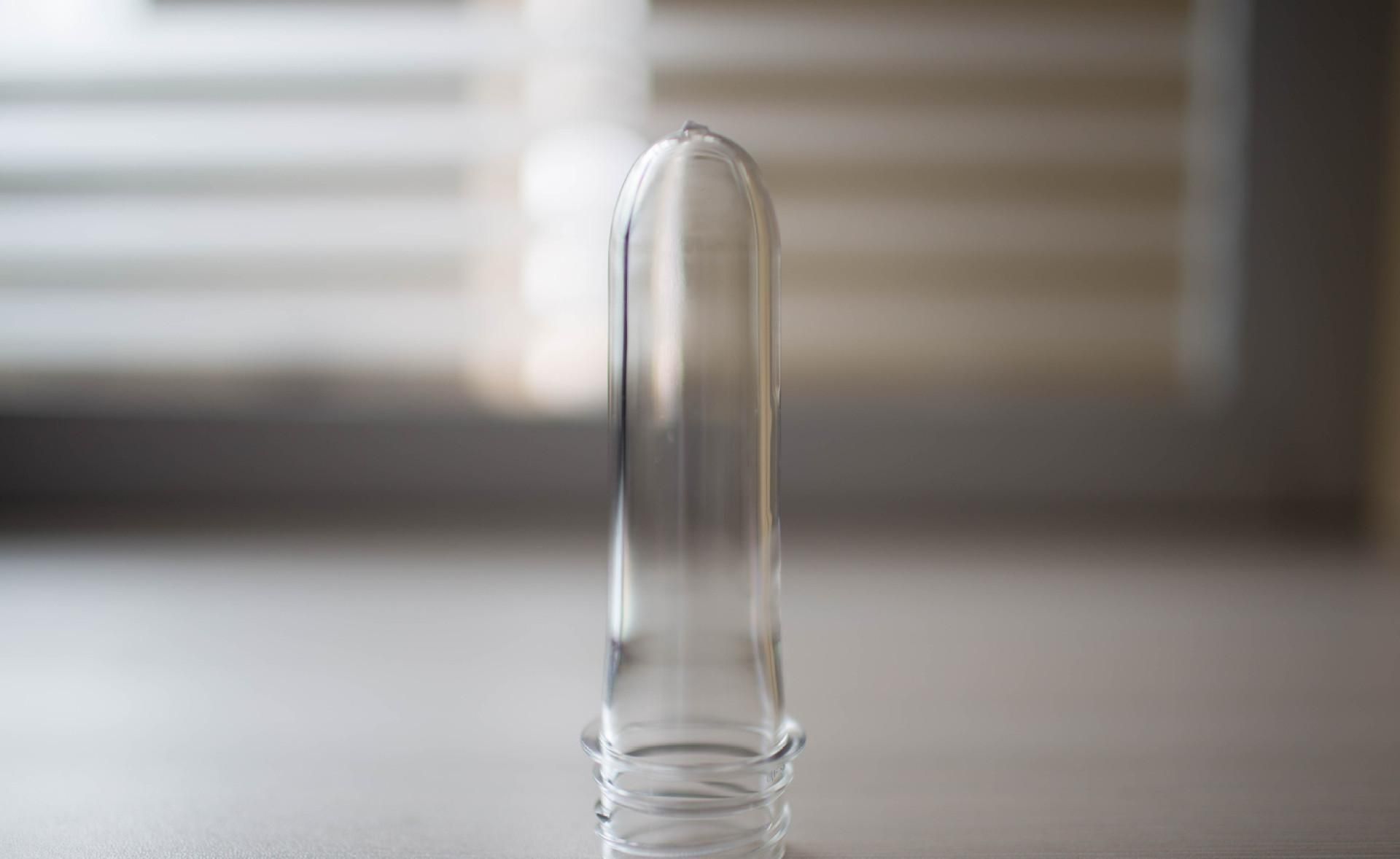

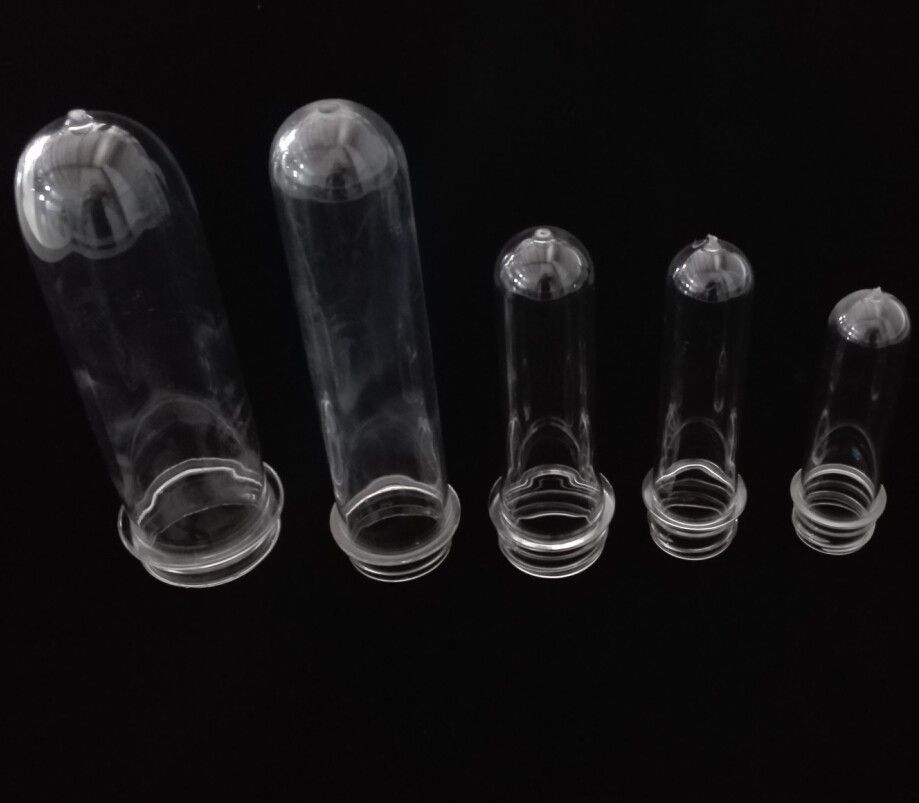

160 ton injection molding machinewith robot producing 28 mm 26 gr PET preform mold, taken in customer factory in China.

HQT-PET serie PET Preform Injection Machine

——Special screw for PET material, with bigger L/D ratio, screw diameter ect, reduces acetaldehyde aldehyde content to meet food packaging standard, and makes sure preform to be completely transparent and bright.
——Special clamping and inject unit to meet PET products requirement.

Item	Unit	HQT-168 PET
INJECTION UNIT
Screw Diameter	mm	55
Screw L/D Ratio	L/D	22
Shot Volume(Theoretical)	cm3	510
Injection Weight(PS)	G	540
Plasticizing Capacity(PS)	g/s	22.0
Injection Rate	g/s	181
Injection Pressure	Mpa	126
Screw Speed	r/min	150
CLAMPING UNIT
Clamp Tonnage	KN	1680
Toggle Stroke	mm	420
Space Between Tie Bars	mm	460×460
Min.Max. Mould Height	mm	180-500
Ejector Stroke	mm	120
Ejector Tonnage	KN	38
Ejector Number		5
OTHERS
System Pressure	（mpa）	16
Pump Motor Power	（kw）	15
Heater Power	（kw）	9.9
Machine Dimension(L×W×H)	m	4.99×1.49×1.9
Oil Tank Capacity	L	364
Machine Weight	Tonelada	6
