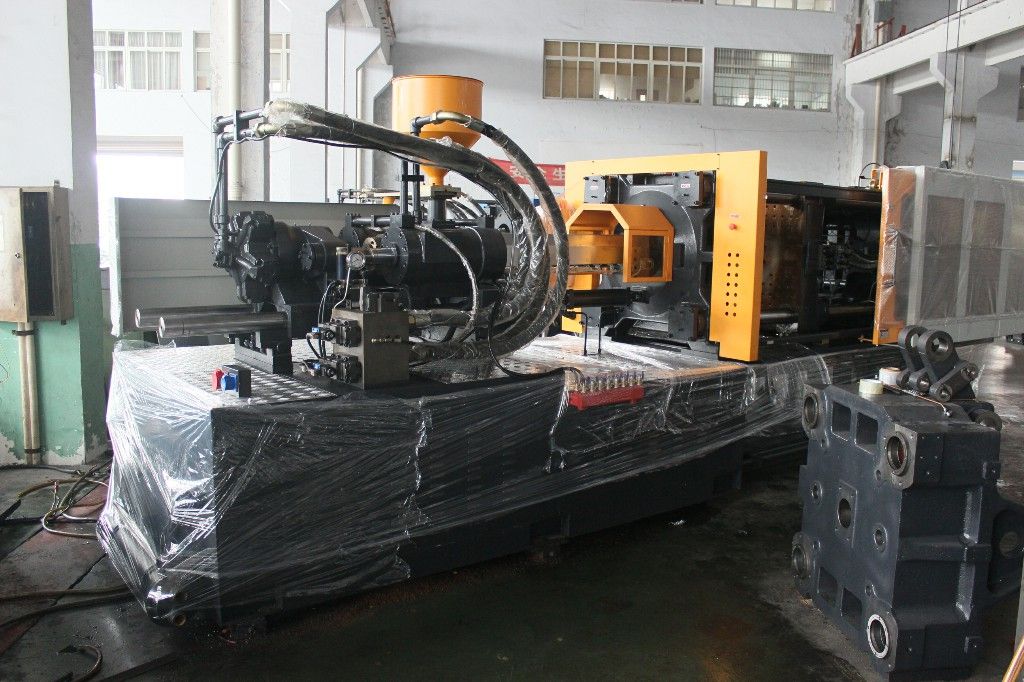

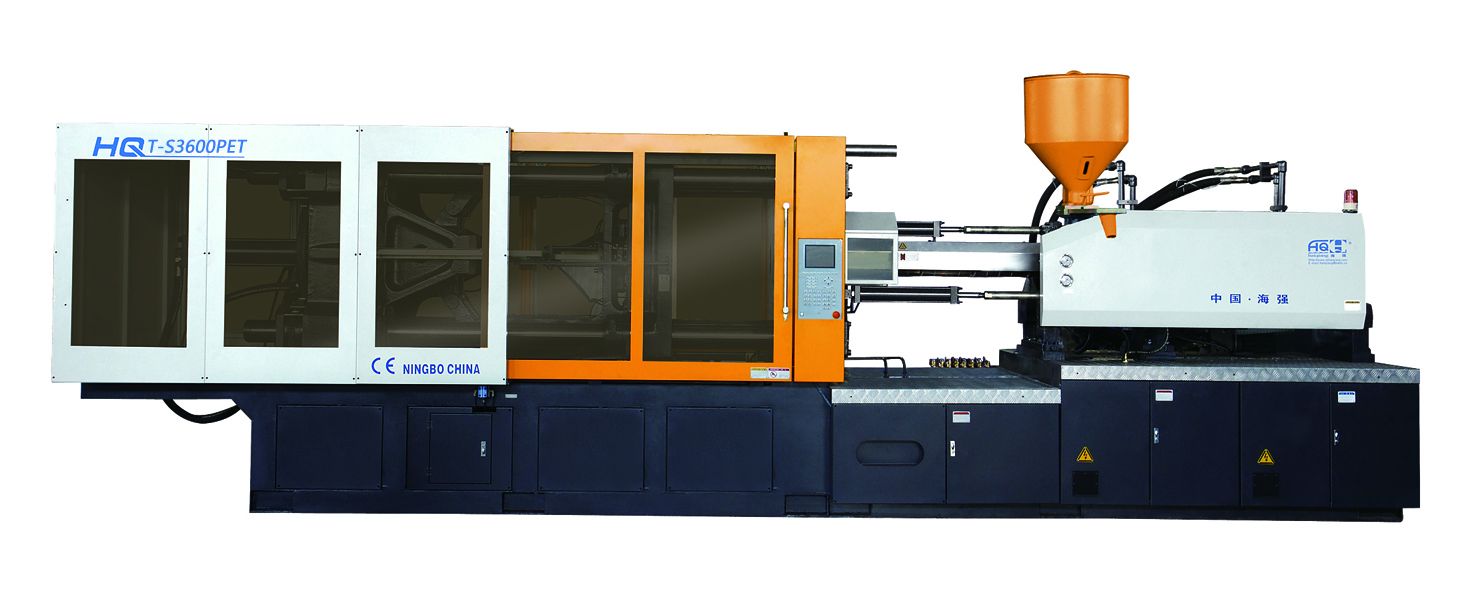

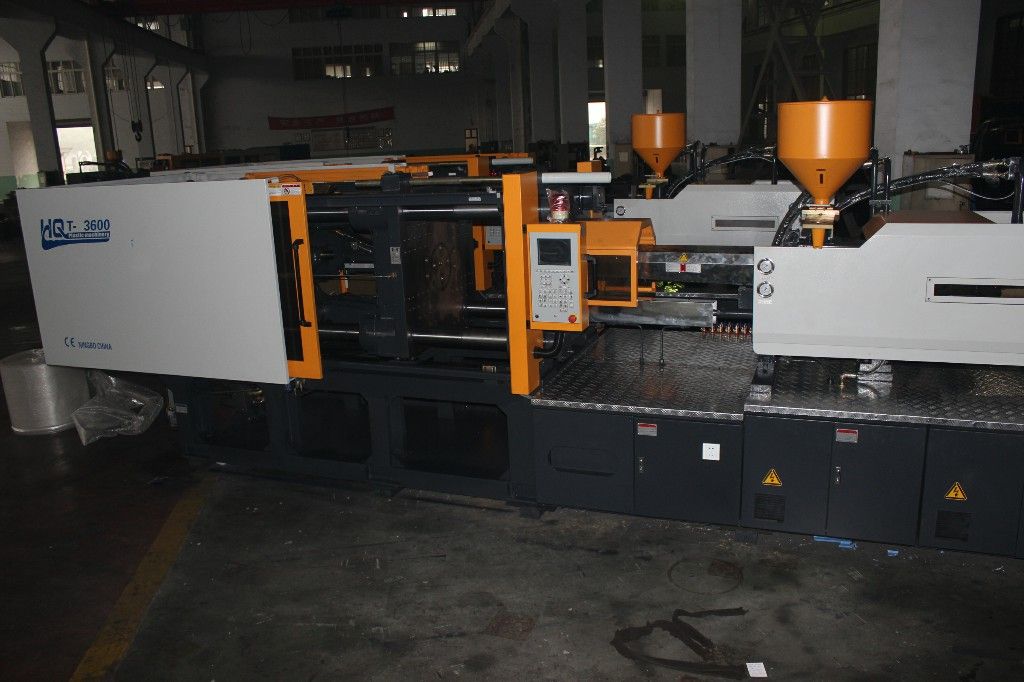

HQT-3600 PET injection molding machine

Release time：2020-10-07 16:18viewed：times

HQT-3600 PET injection molding machine

maquina HQT-2680 PET inyectando preforma 300 g de garrafon en fabrica de cliente, trabajando junto con cristalizador de PET

HQT-PET serie PET Preform Injection Machine

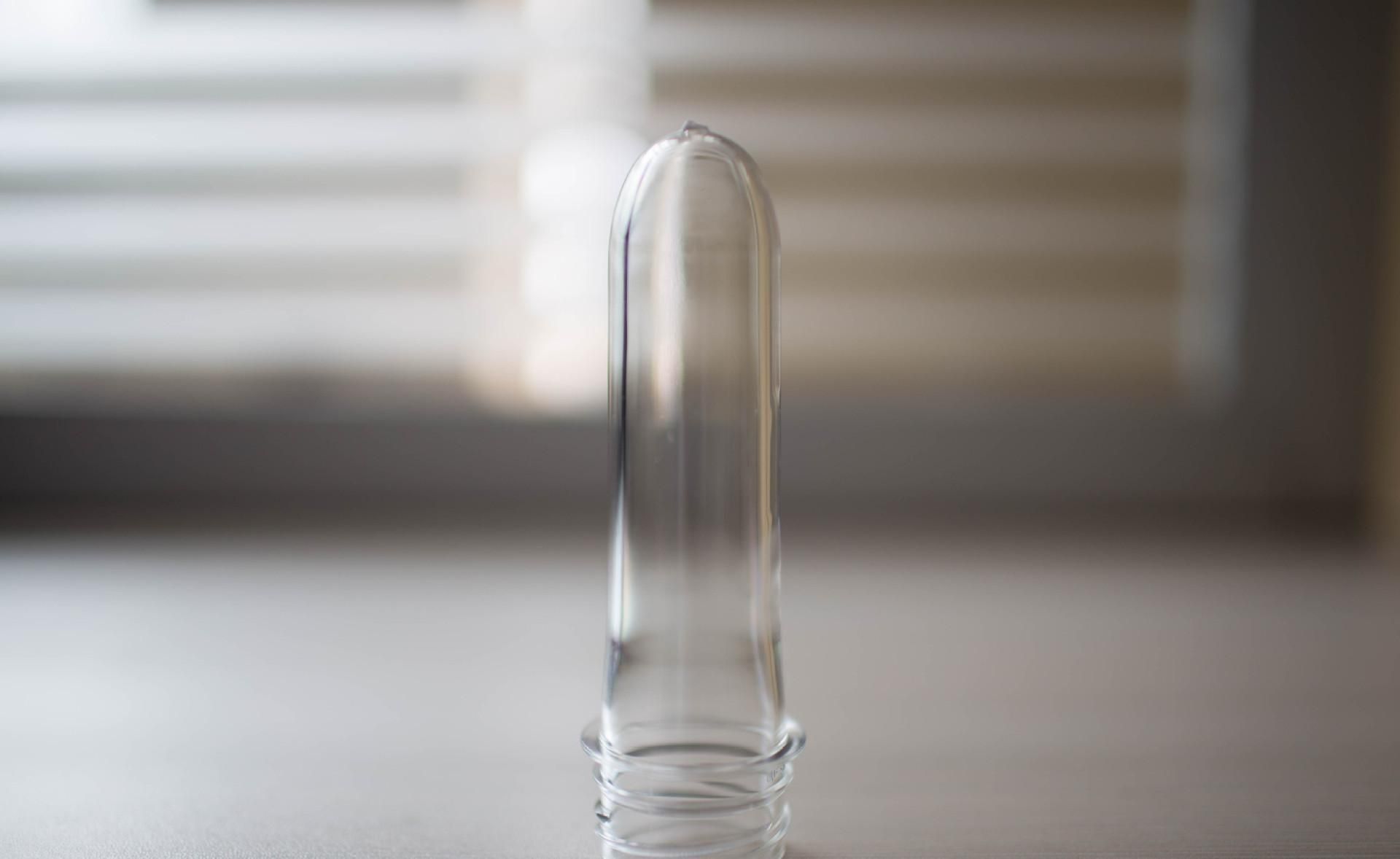

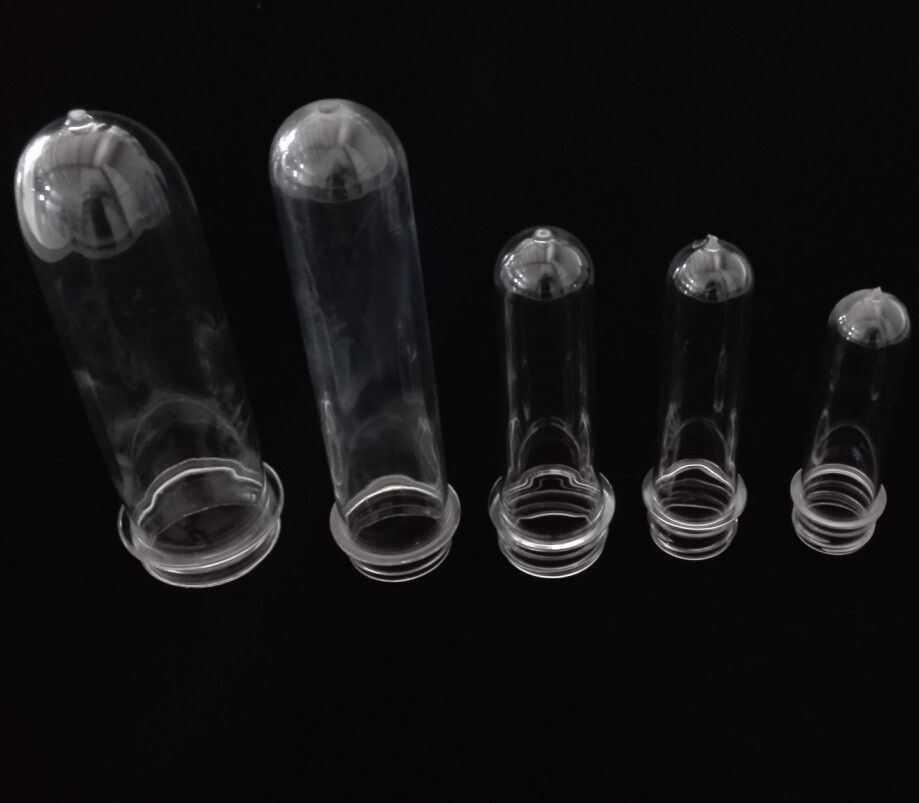

——Special screw for PET material, with bigger L/D ratio, screw diameter ect, reduces acetaldehyde aldehyde content to meet food packaging standard, and makes sure preform to be completely transparent and bright.
——Special clamping and inject unit to meet PET products requirement.

Item	Unit	HQT-360 PET
INJECTION UNIT
Screw Diameter	mm	80
Screw L/D Ratio	L/D	22
Shot Volume(Theoretical)	cm3	1810
Injection Weight(PS)	G	1920
Plasticizing Capacity(PS)	g/s	48.5
Injection Rate	g/s	510
Injection Pressure	Mpa	120
Screw Speed	r/min	200
CLAMPING UNIT
Clamp Tonnage	KN	3600
Toggle Stroke	mm	590
Space Between Tie Bars	mm	700×640
Min.Max. Mould Height	mm	250-750
Ejector Stroke	mm	160
Ejector Tonnage	KN	100
Ejector Number		9
OTHERS
System Pressure	（mpa）	16
Pump Motor Power	（kw）	37
Heater Power	（kw）	22.75
Machine Dimension(L×W×H)	m	7.18×1.97×2.3
Oil Tank Capacity	L	1200
Machine Weight	Tonelada	14.5
