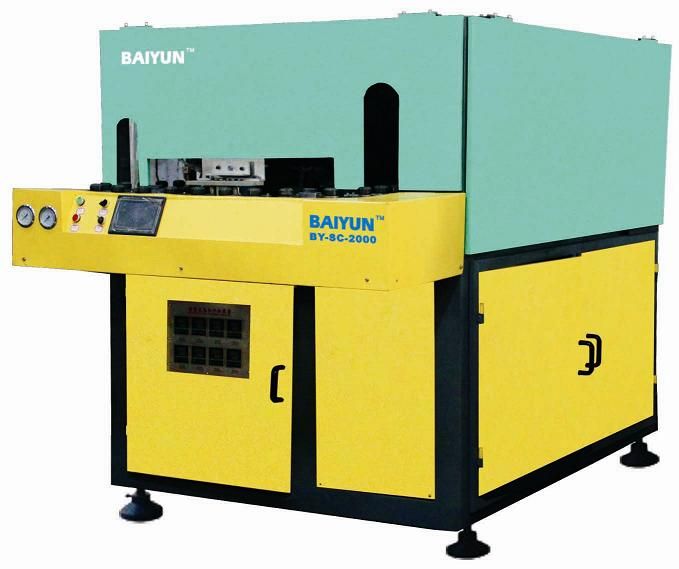

BY-SC2000 manual feeding blow machine

Release time：2020-10-07 11:17viewed：times

BY-SC2000 manual feeding blow machine

For all kinds of PET open mouth jar , from 20 ml to 2000 ml , widely used for mineral water, soft drift and cosmetic containers. labor saving and easy to operate, one worker is enough for the production.
It has PLC system with high efficiency. PID temperature precise control system and infraray heater
Improved mechanical structure with more spacious mold area and providing stronger clamping force, and design of high pressure protection of mold.
Fewer noise in operation and easy maintainence

MODEL		BY-SC-2000
CATEGORY	Machine Type	Manual Preform Feeding Auto blowmolding machine
Theoretical output	__	2000 pcs/h
Theoretical output	__	2000 pcs/h
MOULD	Max. Container Volume	2000ml(2 cavities)
	cavities no.	1or2 cavities
	Max. Container Diameter	150MM
	Max. Container Height	430MM
	Mould plate dimension (L*H)	490*420MM
	Mould thickness	300MM
	Mould opening stroke	170MM
	Max. Stretching stroke	450MM
	Clamping force	280KN
ELECTRICAL	Power	220~380V , 3φ , 50~60Hz
	Heating Power	11KW
	Working Pressure	0.8Mpa
	Blowing Pressure	3.0Mpa
MACHINE	Machine Dimension (LWH)	17006101800MM
	Pre-heater Dimension (LWH)	——
	Machine weight	1500Kg
	pre-heater weight	——
AUCHILIARY DEVICES	1 set High pressure air compressor	1.0M3/3.0Mpa/15Kw
	1 set Air dryer	1.0M3/3.0Mpa/3.75KW
	2 Pics Air filter	1.0m3/3.0Mpa
