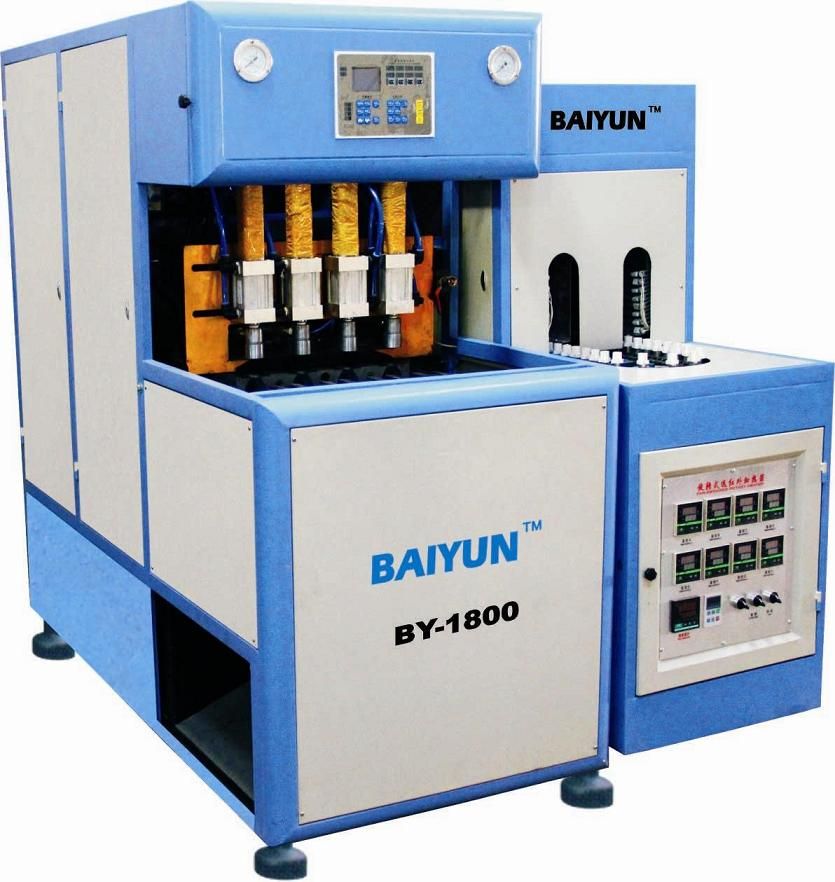

BY-1800 semi auto blow machine

Release time:2020-10-07 11:17viewed:times

BY-1800 semi auto blow machine





Suitable to make any shape of PET bottle from 250 ml to 1000 ml,
 including those for all kinds of water,wine,drink,soybeen,vineger,and pesticide depending on needs of customer.

Adopt the new type double bend arm and four pull rod-clamping structure, strong clamping force.advanced design of air controlling system.


MODEL   BY-1800
CATEGORY Machine Type Semi-automatic Blow Molding Machine
Theoretical output __ 2000 pcs/h
MOULD  Max. Container Volume 1L
cavities no. 1or4 cavities
 Max. Container Diameter 100MM
 Max. Container Height 330MM
Mould plate dimension (L*H) 490*420MM*70MM
Mould thickness 300MM
Mould opening stroke 245MM
Max. Stretching stroke 450MM
Clamping force 180KN
ELECTRICAL Power 220~380V , 3φ , 50~60Hz
Heating Power 7.6KW
Working Pressure 0.8Mpa
Blowing Pressure 3.0Mpa
MACHINE Machine Dimension (L*W*H) 1800*610*1800MM
Pre-heater Dimension (L*W*H) 2300*700*1500MM
Machine weight 850Kg
pre-heater weight 300Kg
AUCHILIARY DEVICES 1 set High pressure air compressor  1.2M3/3.0Mpa/15Kw
 1 set Air dryer 1.0M3/3.0Mpa/3.75KW
2 Pics Air filter  1.0m3/3.0Mpa
