BY-800 semi auto blow machine

Release time：2020-10-07 11:16viewed：times

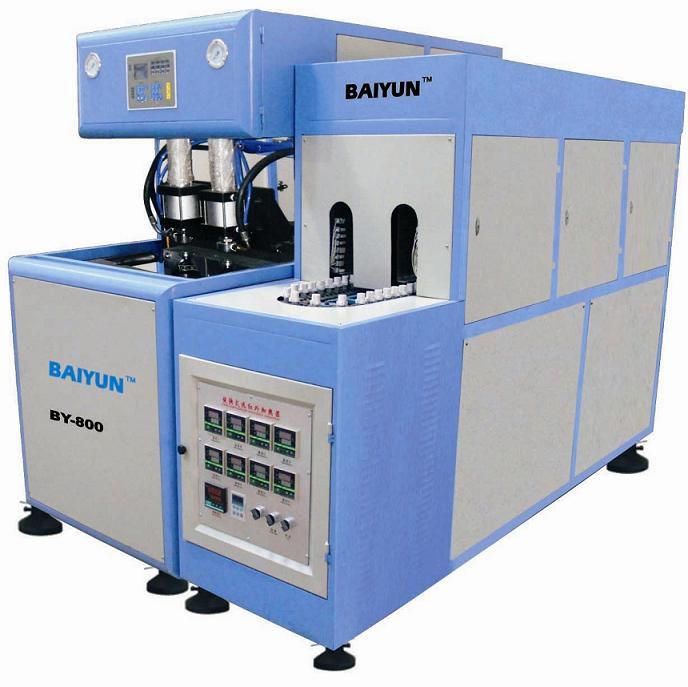

BY-800 semi auto blow machine

For all shapes of PET bottle, Ideal option for container of oil, honey, mineral water ect. from 1 to 5 L.Safe, Fast and highly efficient.Adopt the new type double bend arm and four pull rod-clamping structure, strong clamping force.advanced design of air controlling system.

MODEL		BY-800
CATEGORY	Machine Type	Semi-automatic Blow Molding Machine
Theoretical output	__	600-700 pcs/h(5L)
Theoretical output	__	600-700 pcs/h(5L)
MOULD	Max. Container Volume	5000ml(2 Cavities )
	cavities no.	1or2 cavities
	Max. Container Diameter	230MM
	Max. Container Height	430MM
	Mould plate dimension (L*H)	650510MM70MM
	Mould thickness	300MM
	Mould opening stroke	260MM
	Max. Stretching stroke	450MM
	Clamping force	280KN
ELECTRICAL	Power	220~380V , 3φ , 50~60Hz
	Heating Power	15KW
	Working Pressure	0.8Mpa
	Blowing Pressure	3.0Mpa
MACHINE	Machine Dimension (LWH)	19508101800MM
	Pre-heater Dimension (LWH)	23007001500MM
	Machine weight	850Kg
	pre-heater weight	350Kg
AUCHILIARY DEVICES	1 set High pressure air compressor	1.2M3/3.0Mpa/15Kw
	1 set Air dryer	1.0M3/3.0Mpa/3.75KW
	2 Pics Air filter	1.0m3/3.0Mpa
