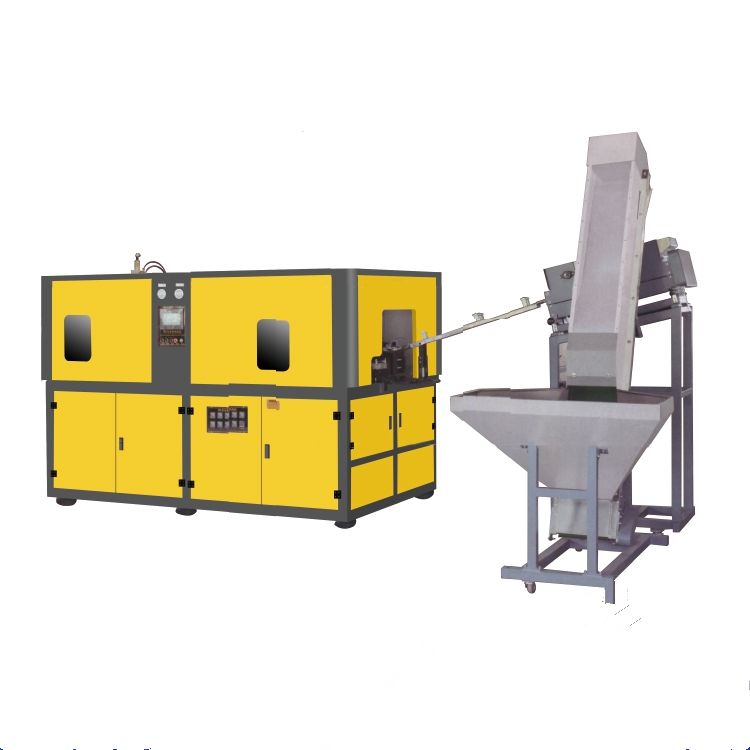

BY-2000 automatic blow machine

Release time：2020-10-07 11:17viewed：times

BY-2000 automatic blow machine

For all kinds of PET bottle, from 20 ml to 2000 ml , widely used for mineral water, soft drift and cosmetic containers.
Imported detecting components, high control precision and quick response.
Imported infrared heater of PET preform, strong penetrating power, heating of uniformity with rotation, reflex plate width, adjustable height , can be suitable for thick wall preform heating.
Adapted with new generation of servomotor system, low consumption of energy, fast speed, accurate and steady movement.
Improved mechanical design of stronger clamping force, digital control of clamping stroke to suit different mold thickness.
Independent pneumatic systems of bottle blowing and other machine actuation, which can meet the air supply demand of especial bottles.
Completely automatic production from preform feeding to product taking for bottle filling process, better output, easy operation and simple mantenance.

MODEL		BY-2000
CATEGORY	Machine Type	Fully-automatic Blow Moilding Machine
Theoretical output	__	2000 pcs/h
Theoretical output	__	2000 pcs/h
MOULD	Max. Container Volume	2000ml(2 Cavities)
	cavities no.	1or2 cavities
	Max. Container Diameter	150MM
	Max. Container Height	430MM
	Mould plate dimension (L*H)	490*420MM
	Mould thickness	300MM
	Mould opening stroke	170MM
	Max. Stretching stroke	450MM
	Clamping force	280KN
ELECTRICAL	Power	220~380V , 3φ , 50~60Hz
	Heating Power	11KW
	Working Pressure	0.8Mpa
	Blowing Pressure	3.0Mpa
MACHINE	Machine Dimension (LWH)	17006101800MM
	Pre-heater Dimension (LWH)	250011001500MM
	Machine weight	1500Kg
	pre-heater weight	300Kg
AUCHILIARY DEVICES	1 set High pressure air compressor	1。0M3/3.0Mpa/11.5Kw
	1 set Air dryer	1.0M3/3.0Mpa/3.75KW
	2 Pics Air filter	1.0m3/3.0Mpa
