PET dehumidifier three in one machine

Release time:2020-10-07 11:13viewed:times

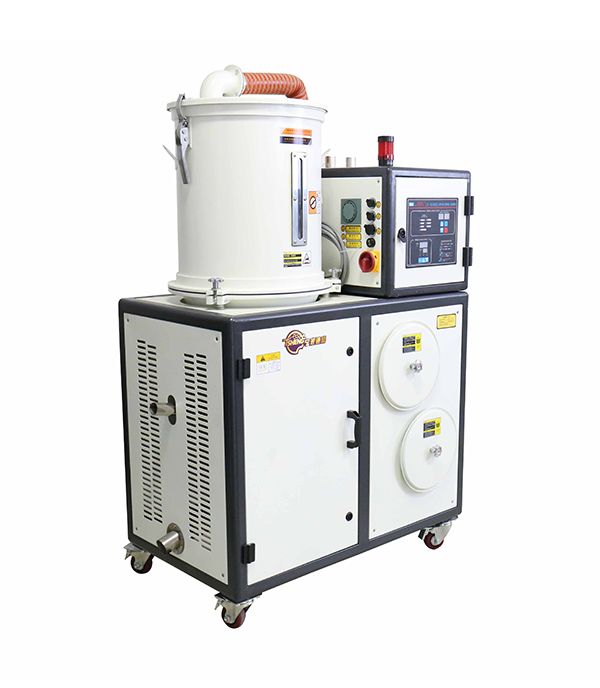

PET dehumidifier three in one machine


1. The dehumidifier has closed and semi-closed two types.
2. Our dehumidifier intergrates the three function of dehumidifier, dry and feeding.
3. The rotary wheel is durable.
4. SS material double layer hopper to improve the drying.
5. PLC with LCD controller.
6. Closed recycling feeding system.
7. Nice design, Polish appearance, easy to move



PET dehumidifier three in one machine

Technical Parameters
Model 80U/ 120U/ 160U/ 230U/ 300U/ 450U/ 600U/ 750U/ 900U/ 1200U/
90H 90H 120H 150H 200H 300H 400H 500H 700H 700H
Moisturizing bucket capacity(L) 80 120 160 230 300 450 600 750 900 1200
dryer heater power(kw) 3.9 6 6 7.2 12 15 18 21 24 24
drying blower power(kw) 0.4 0.75 1.5 1.9 1.9 2.6 3.4 5.5 5.5 5.5
Dehumidified air volume(㎡/hr) 90 90 120 150 200 300 400 500 700 700
regen heater power (kw) 2.8 3.5 3.5 4 5.4 7.2 7.2 10 10 10
regen blower power (kw) 0.2 0.2 0.2 0.4 0.4 0.75 0.75 1.9 1.9 1.9
blower power for feeding (kw) 0.75 0.75 0.75 1.9 1.9 1.9 1.9 1.9 2.2 2.2
suction pipe (inch) 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 2 2
electronic eyes Hopper volume 6L 6L 6L 6L 6L 6L 6L 6L 12L 12
standard hopper volume 6L 6L 6L 12L 12L 12L 12L 12L 12L 12
dimension(mm)       L 1200 1200 1300 1500 1600 1700 1700 2100 2100 2100
                                  W 1000 1000 1100 1360 1360 1400 1400 1500 1500 1500
                                  H 1870 1870 1900 2060 2060 2300 2300 2700 2700 3200
weight(kg) 280 320 330 380 520 550 630 700 780 900
