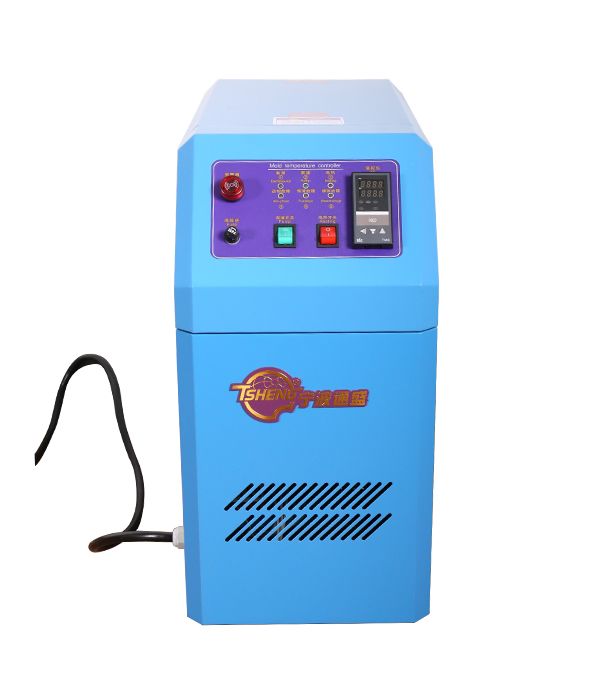

mold temperature controller
1. PID temperature control, high temperature control precision, tolerance within ±1 °C .
2. Using gear pumps, which are of high pressure, high flow rate, low noise and stability.
3. PC board with fault indication when a failure occurs, it can accurately detect the fault or abnormity.
4. Oil gauge designed to reduce leakage point, easy to operate.
5. No piping design to reduce leakage point and make the system more stable.
6. Using an independent over-temperature controller to prevent over-temperature danger.
7. Heating pipes are made of thick-walled seamless stainless steel pipe.
8. Electric tube designed with a large heat transfer area, which is durable.
9. Simple design, elegant appearance.
10. Two types available: water carrying type and oil carrying type.
MOLD TEMPERATURE CONTROLLER
|
Technical Parameters |
|
Model |
Max. temperature |
Cooling method |
Electric |
Pump power |
Max.flow |
Max.press |
Pump type |
Die joint |
External size |
Weight |
|
(℃) |
power(kw) |
(kw) |
(L/min) |
(Bar) |
(Inch) |
(mm) |
(kg) |
|
XCM-6-W |
Water 99℃ |
Direct cooling |
6 |
0.37 |
30 |
3.5 |
Horizontal |
3/8"2*2 |
840*310*680 |
62 |
|
XCM-9-W |
9 |
0.75 |
45 |
3.5 |
3/8"2*2 |
840*310*680 |
90 |
|
XCM-12-W |
6*2 |
0.75 |
45 |
3.5 |
3/8"4*2 |
900*350*820 |
110 |
|
XCM-18-W |
6*3 |
1.5 |
75 |
3.5 |
3/8"4*2 |
1050*450*900 |
125 |
|
XCM-24-W |
6*4 |
3 |
75*2 |
5.5 |
3/8"4*2 |
950*600*820 |
140 |
|
XCM-36-W |
6*6 |
3 |
75*2 |
5.5 |
3/8"6*2 |
1050*700*900 |
170
|
