vacuum loader

Release time:2020-10-07 11:13viewed:times

vacuum loader





1: separation of host and tank design, safety and convenience,
2: Independent filtration device to facilitate debris removal
3: Mute device, reducing the speed of noise
4: Stainless steel hopper, light and durable good clean material
5: Independent control box design, microcomputer control operation,
6: Motor automatic protection device
7: lack of material buzzer alarm automatically inform
8: Motor reversible dedust(requires installation)

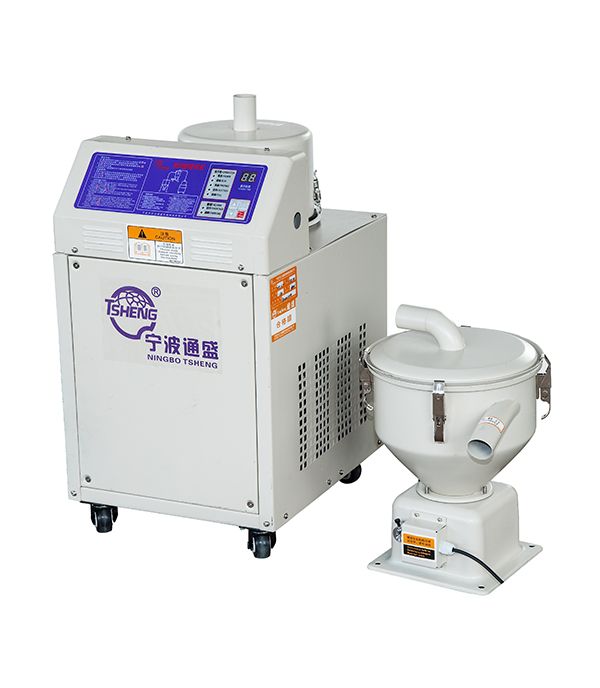

PLASTIC VACUUM AUTO LOADER

Technical Parameters
Model XTL-700GN XTL-800 XTL-800GE XTL-800GN
Motor type carbon brush induction induction induction
specification 1100w1Ø 1100w3Ø 1500w3Ø 2200w3Ø
conveying capacity(kg/hr) 400 450 550 650
static wind pressure(max) 1500mmAq 1450mmAq 2000mmAq 2200mmAq
filter Ø188*115H Ø188*115H Ø188*115H Ø188*115H
volume of material hopper 6.5L 6.5L 6.5L 6.5 L
Pipe diametar(mm) Ø38   Ø38   Ø38   Ø38
dimension main body 480*310*430 680*370*500 700*370*500 700*370*500
hopper 430*440*295 430*440*295 430*440*295 430*440*295
weight main body 15.5 35 45 45
hopper 5 6 6 6
Model XTL-7.5HP XTL-10HP XTL-900GN-2 XTL-800GN2-P
Motor type induction induction induction induction
specification 2200w3Ø 2200w3Ø 2200w3Ø 2200w3Ø
conveying capacity(kg/hr) 1100 1500 450+450 650
static wind pressure(max) 2500mmAq 2800mmAq 2000mmAq 1450mmAq
filter Ø188*260H Ø188*260H Ø188*115H Ø188*115H
volume of material hopper(L) 25L 25L 6.5+12 6.5 L
Pipe diametar(mm) Ø51 Ø63.5 Ø38   Ø38
dimension main body 700*600*850 750*650*850 850*480*740 680*370*500
hopper 430*440*500 430*440*500 430*440*295 430*440*700
weight main body 70 80 50 35
hopper 8 8 6+6 12
