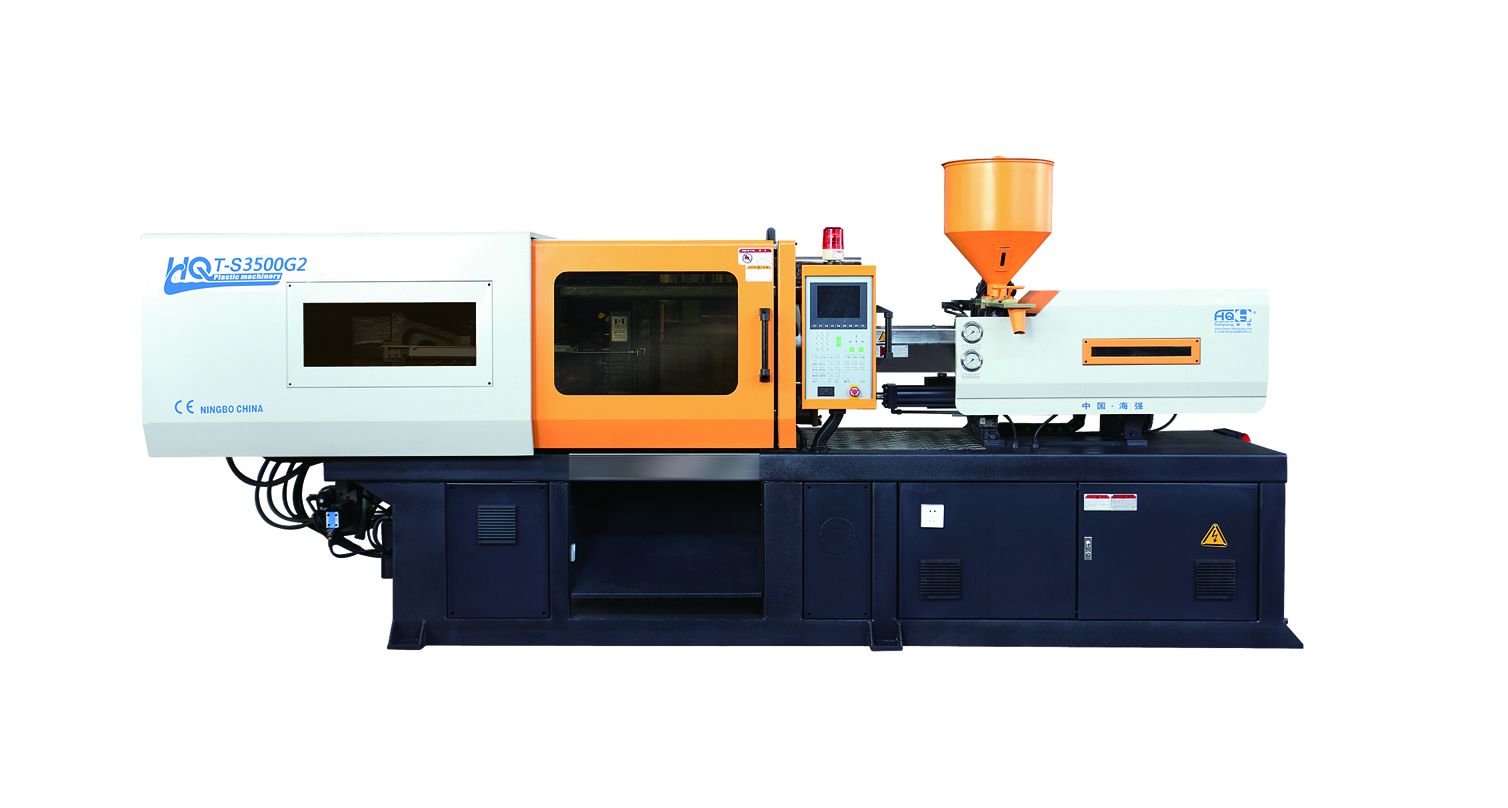

HQT 3500 G high speed thin wall injection machine

Release time：2020-10-07 11:11viewed：times

HQT 3500 G high speed thin wall injection machine

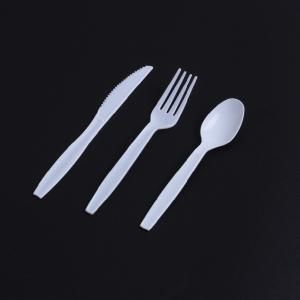

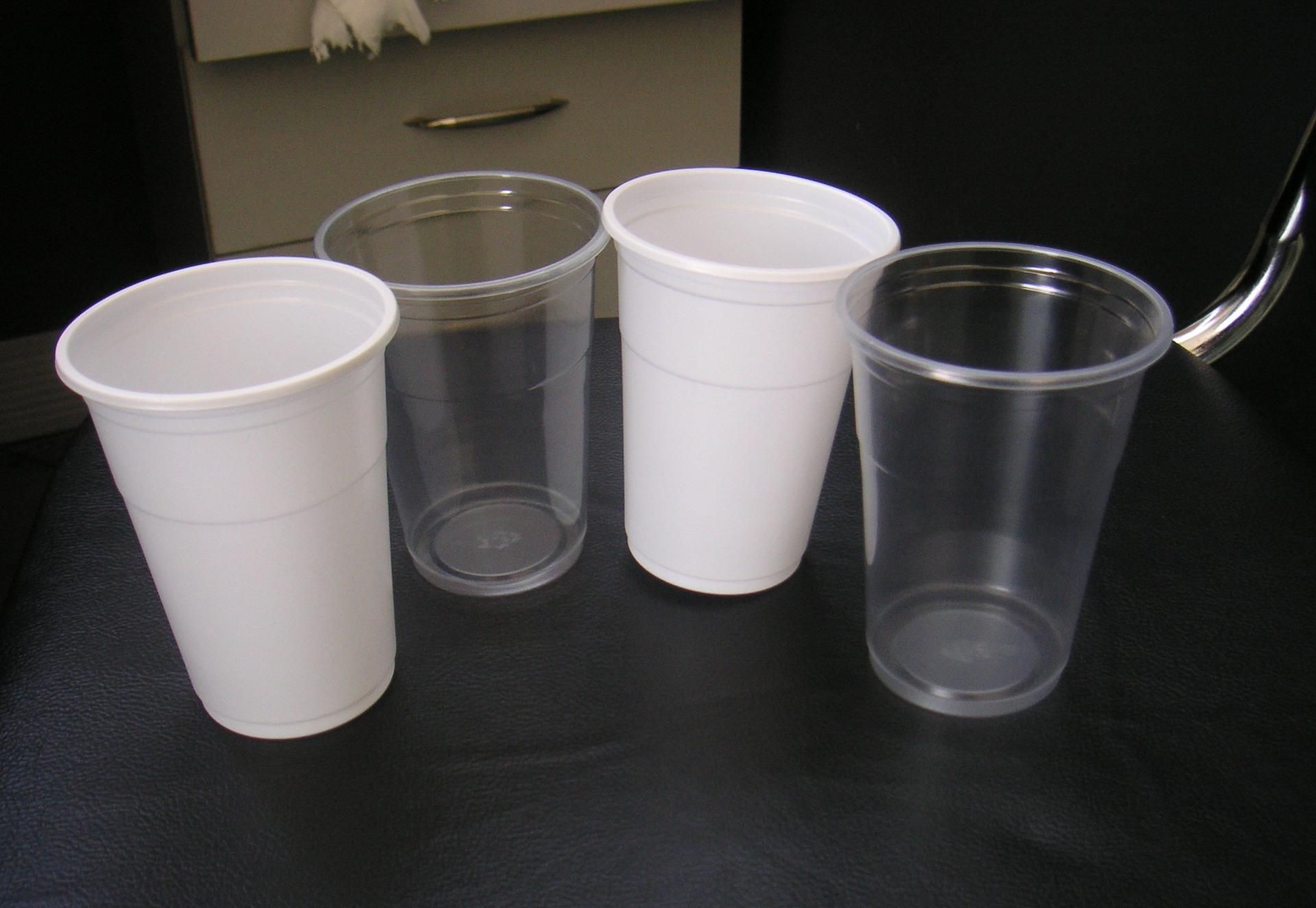

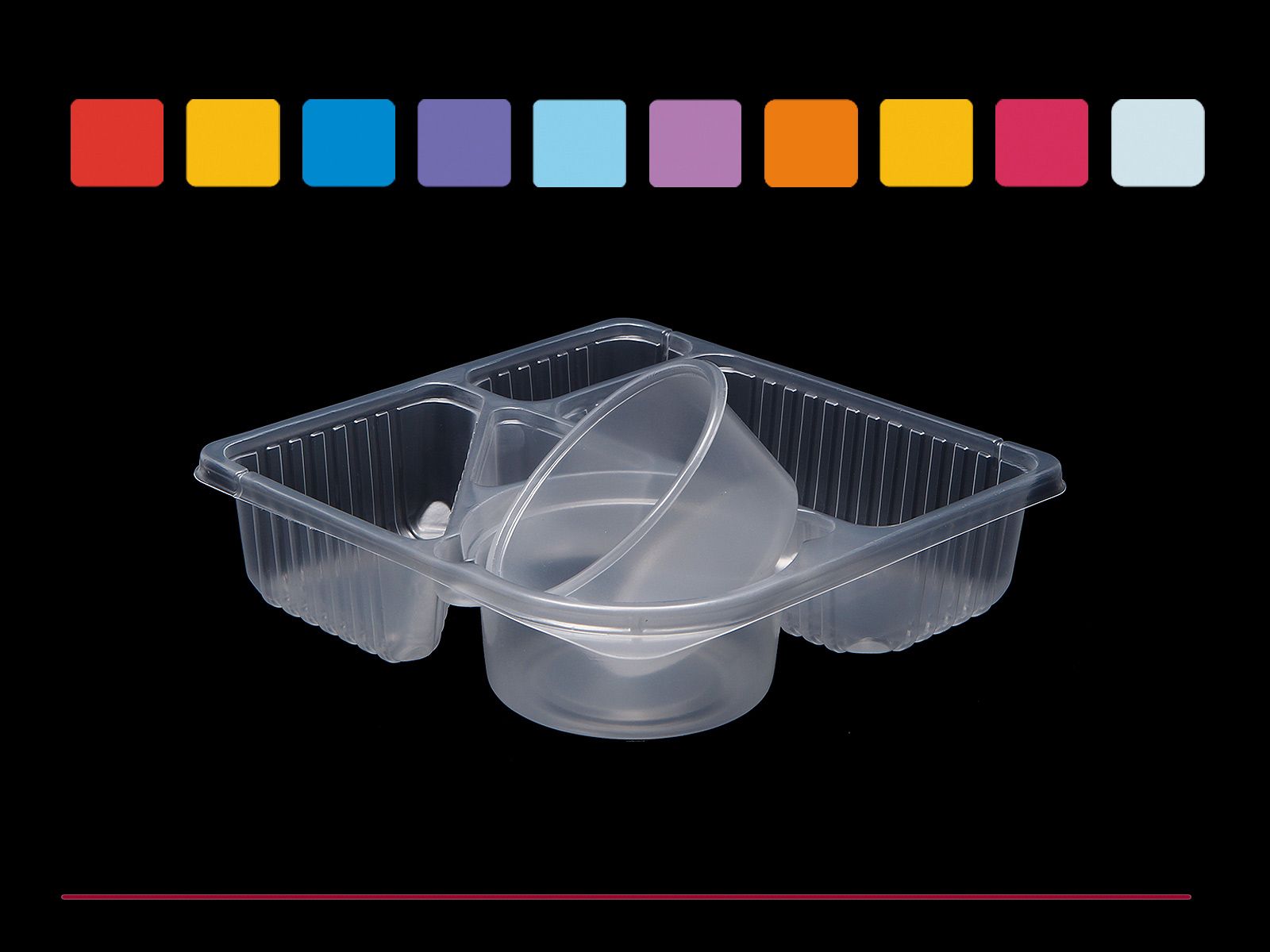

HQT-3500 G high speed machine in production with robot, suitable for thin wall and disposible plastic parts such as food container, cable ties, caps ect.

high speed thin wall injection machine

HQT-G serie

——Clamping unit with improved rigidity meets the requirement of high injection spped and pressure, and extends the service life of mould.

——Hydraulic accumulator alocated with high quality proportional valves accelerates the injection velocity significantly.

——Fast injection rates and response assured by optimized hydraulic system.

——High precision control system can enhance the accuracy of movement, and make machine work reliably.

Item	UNIT	HQT 350 G 2
INJECTION UNIT	UNIT
Screw Diameter	mm	60
Screw L/D Ratio	L/D	22
Shot Volume(Theoretical)	cm3	865
Injection Weight(PS)	g	812
Injection Rate	g/s	293
Injection Pressure	Mpa	192
Screw Speed	r/min	220
CLAMPING UNIT
Clamp Tonnage	KN	3500
Toggle Stroke	mm	660
Space Between Tie Bars	mm	680×680
Max.Mould Height	mm	820
Min.Mould Height	mm	250
Ejector Stroke	mm	160
Ejector Tonnage	KN	70
OTHERS
System Pressure	Mpa	16
Pump Motor Power	KW	37+29
Heater Power	KW	37
Machine Dimension(L×W×H)	m	7.0x2.0x2.4
Oil Tank Capacity	L	680
Machine Weight	T	13
