HQT 3100 G high speed thin wall injection machine

Release time：2020-10-07 11:10viewed：times

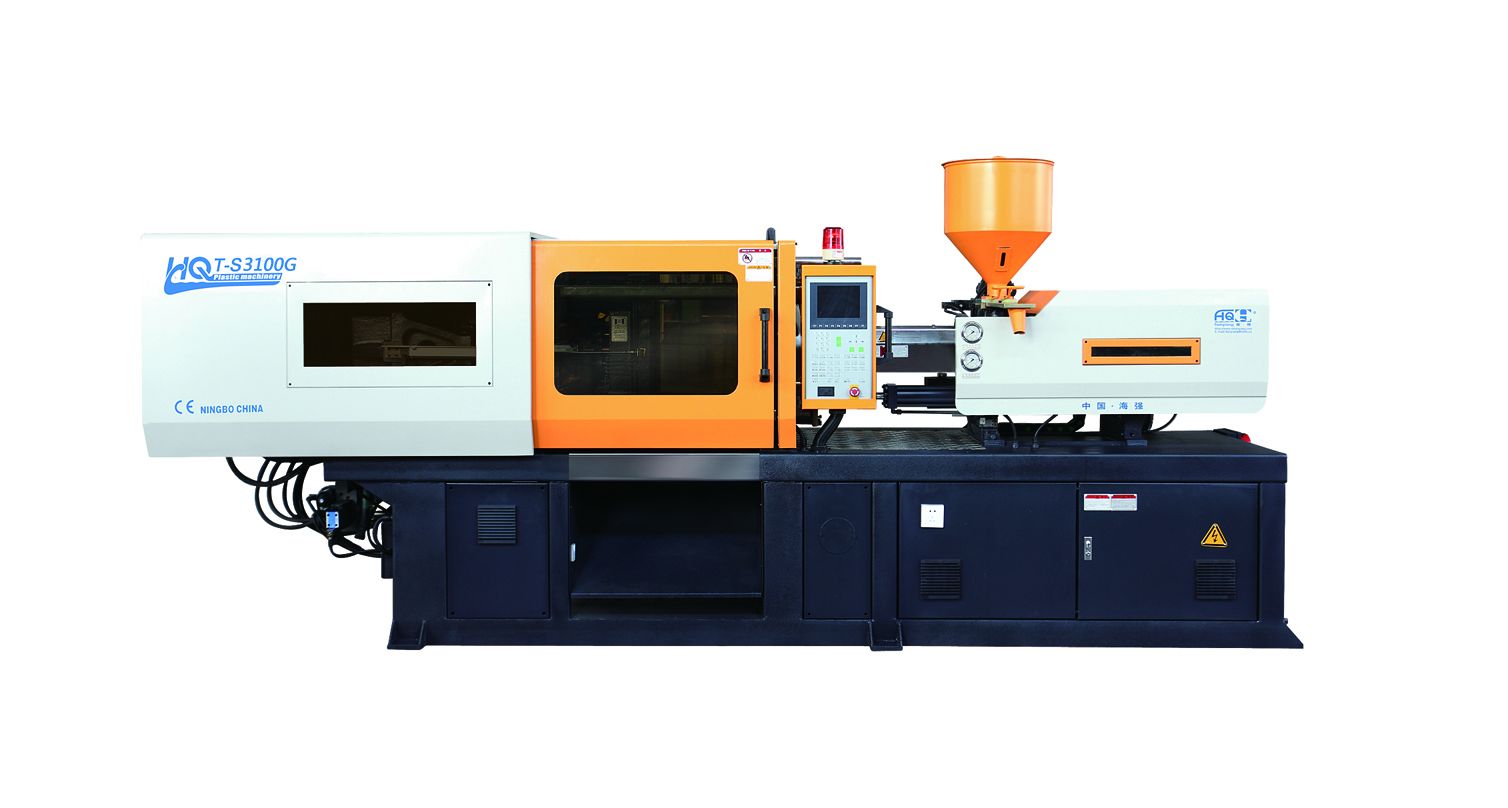

HQT 3100 G high speed thin wall injection machine

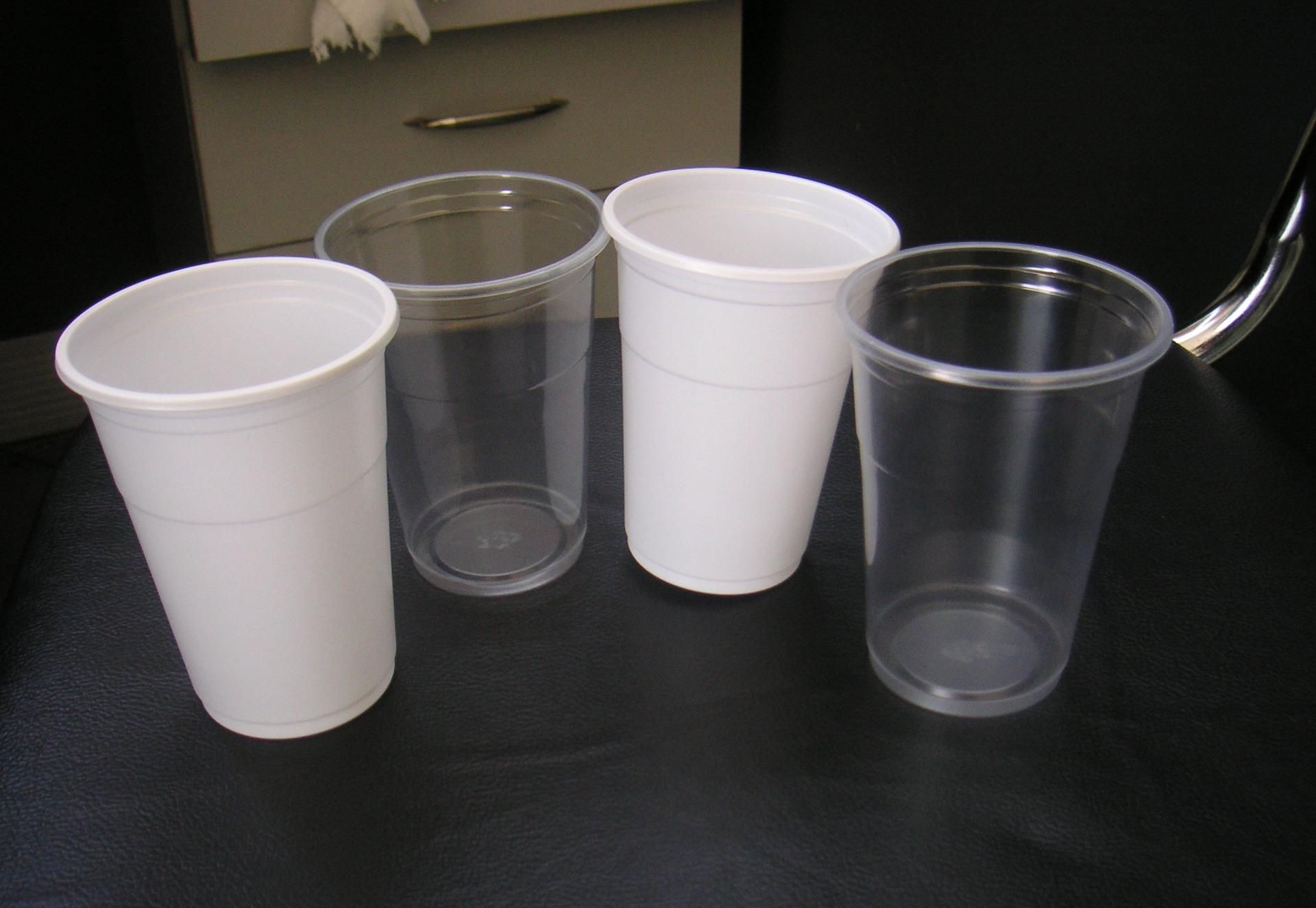

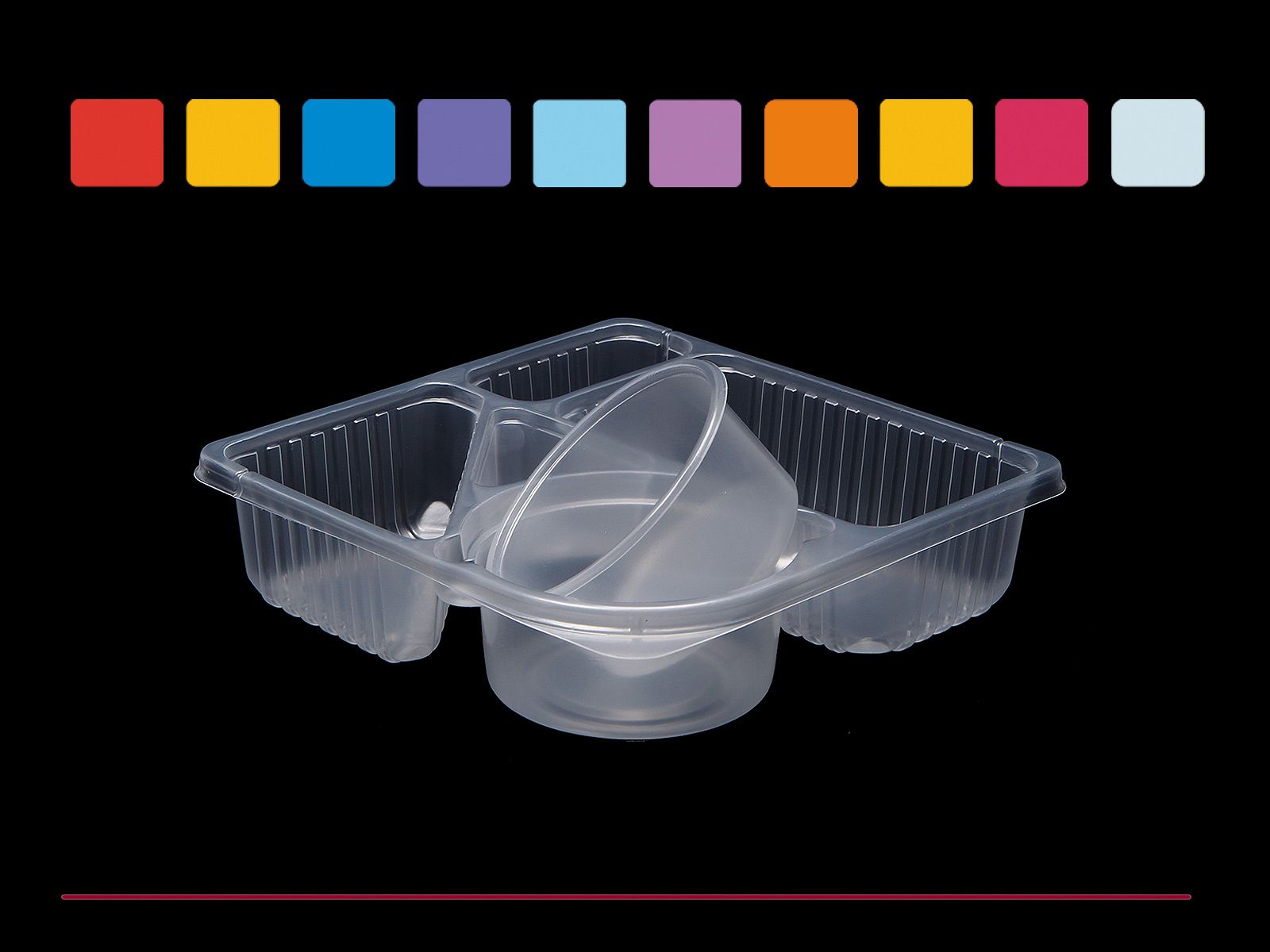

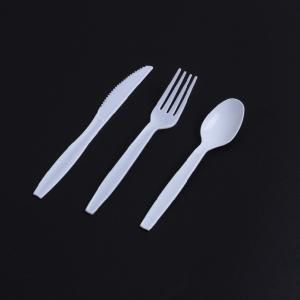

HQT-3500 G high speed machine in production with robot, suitable for thin wall and disposible plastic parts such as food container, cable ties, caps ect.

high speed thin wall injection machine

HQT-G serie

——Clamping unit with improved rigidity meets the requirement of high injection spped and pressure, and extends the service life of mould.

——Hydraulic accumulator alocated with high quality proportional valves accelerates the injection velocity significantly.

——Fast injection rates and response assured by optimized hydraulic system.

——High precision control system can enhance the accuracy of movement, and make machine work reliably.

Item	UNIT	HQT 310 G
INJECTION UNIT	UNIT
Screw Diameter	mm	55
Screw L/D Ratio	L/D	22
Shot Volume(Theoretical)	cm3	550
Injection Weight(PS)	g	503
Injection Rate	g/s	227
Injection Pressure	Mpa	169
Screw Speed	r/min	190
CLAMPING UNIT
Clamp Tonnage	KN	3100
Toggle Stroke	mm	590
Space Between Tie Bars	mm	630×630
Max.Mould Height	mm	830
Min.Mould Height	mm	250
Ejector Stroke	mm	150
Ejector Tonnage	KN	70
OTHERS
System Pressure	Mpa	16
Pump Motor Power	KW	49
Heater Power	KW	30
Machine Dimension(L×W×H)	m	6.9x1.5x2.4
Oil Tank Capacity	L	390
Machine Weight	T	9.5
