HQS-2200 rotative multi-component injection machine

Release time：2020-10-07 16:18viewed：times

HQS-2200 rotative multi-component injection machine

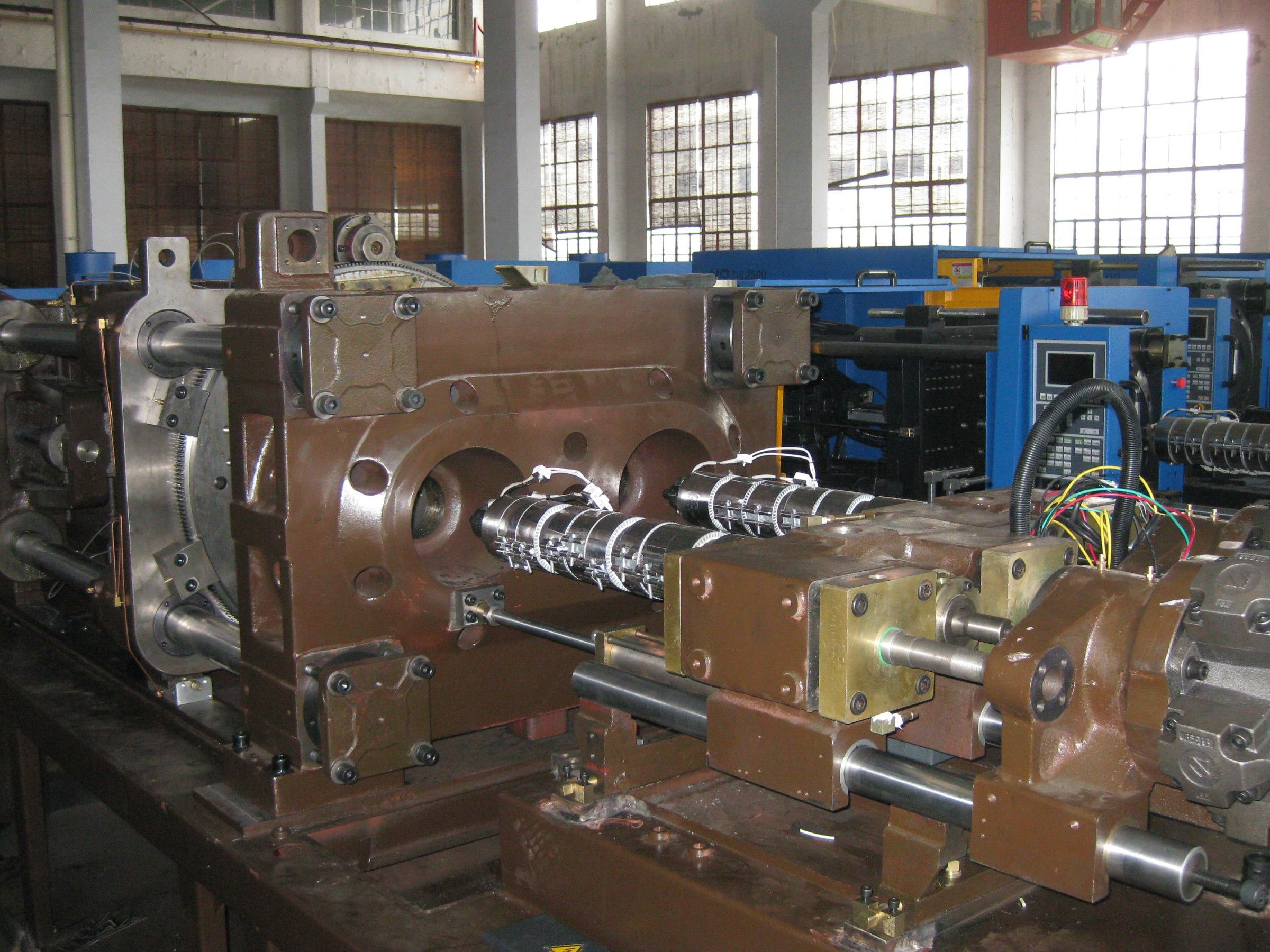

HQT-2200 S two color multi-injection molding machine at quality inspection testment before sent out to customer.

·Two sets of independent proportional pressure / flow control system respectively coordinate two sets of injection unit, which enhances repeatability, precision and greatly increases the product quality.
·Bi-directional 180°rotary platen can place two pairs of the molds. It can produce distinctively two-color products.
·In rotation, rotary plate does not touch the mold wall, which reduces the abrasion troubles. It detects accurate position of rotary table before clamping so as to extend mould life.
·Injection unit consists 2 sets of independent material feeding system, which works together to realize multi-injection molding.
·Rotary platen is supported by two bearings which helps to support mold weight and enhance accuracy of rotation.

Item	Unit	HQS-220 Multi-Color Injection
INJECTION UNIT		Unit A			Unit B
Screw Diameter	mm	32	35	40	26	30	34
Screw L/D Ratio	L/D	22.5	20.6	18	23	21	17.6
Shot Volume(Theoretical)	cm3	112	146	191	67	90	115
Injection Weight(PS)	G	111	133	174	61	82	105
Plasticizing Capacity(PS)	g/s	10.0	11.2	13.8	7.5	9.3	10.5
Injection Rate	g/s	78	93	121	58	77	99
Injection Pressure	Mpa	203	170	130	224	168	131
Screw Speed	r/min	200			250
CLAMPING UNIT
Clamp Tonnage	KN	2200
Toggle Stroke	mm	445
Space Between Tie Bars	mm	830×510
Min.Max. Mould Height	mm	180-480
Ejector Stroke	mm	160
Ejector Tonnage	KN	38×2
Turn Plate Diameter	mm	900
Ejector Number		5×2
OTHERS
System Pressure	（mpa）	16
Distance between mould positing center	mm	450
Pump Motor Power	（kw）	18.5
Heater Power	（kw）	5.7+5.15
Machine Dimension(L×W×H)	m	3.75×1.29×1.72
Oil Tank Capacity	L	305
Machine Weight	Ton	8.8
