HQT-1280 TPU injection molding machine

Release time：2020-10-07 16:18viewed：times

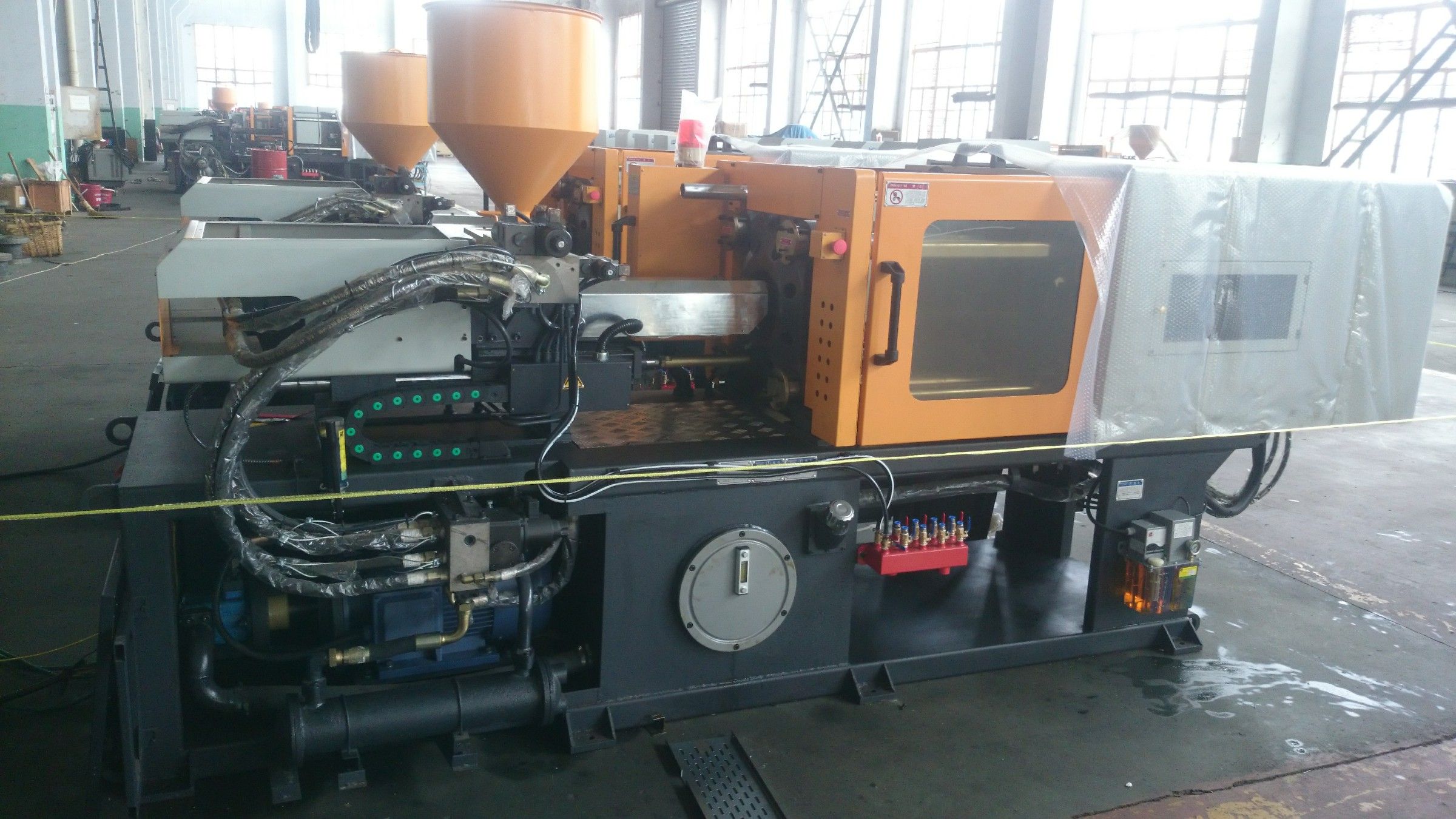

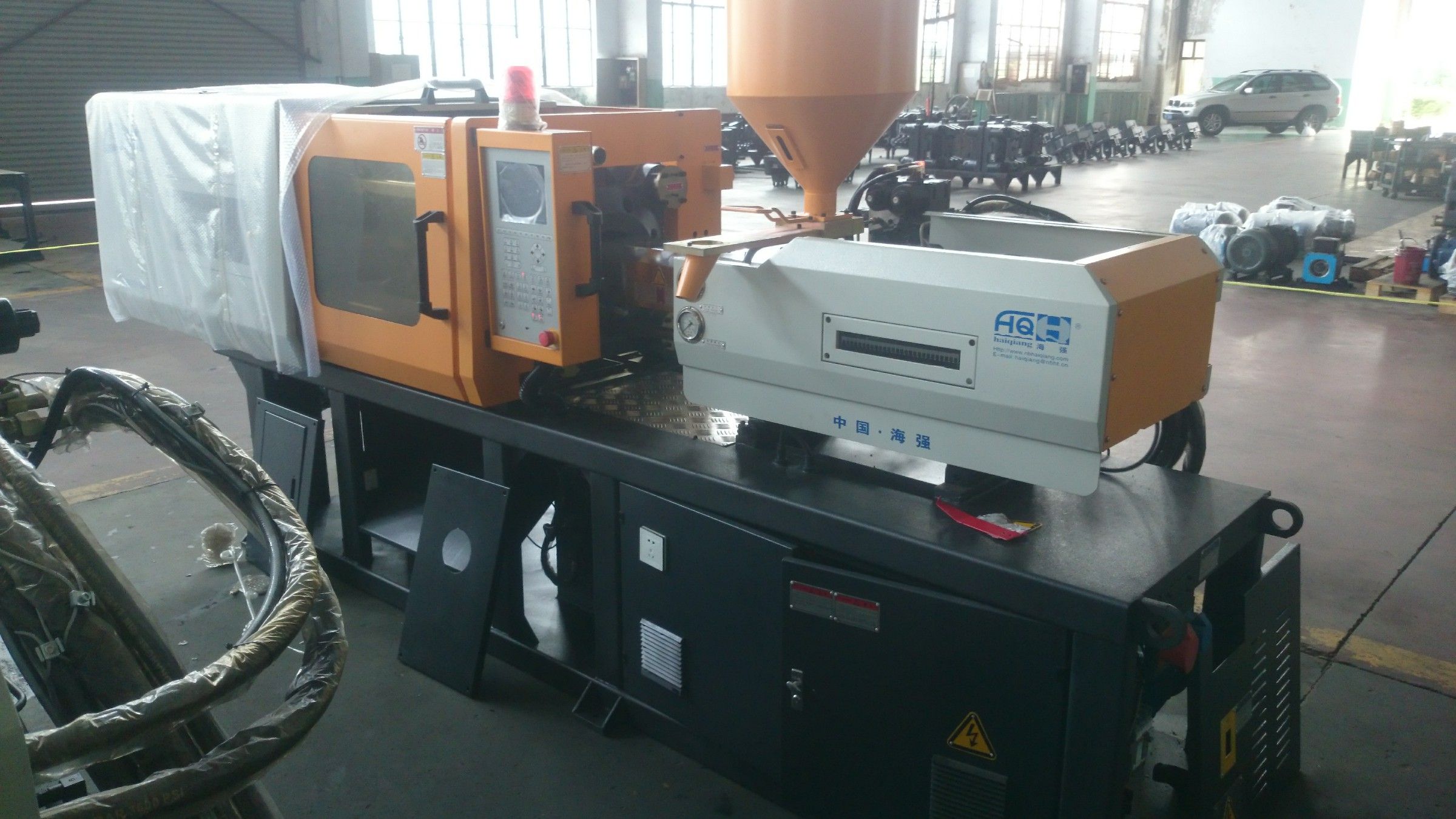

Three HQT-1280 servomotor injection machine in testment before deliver to Argentinean customer.

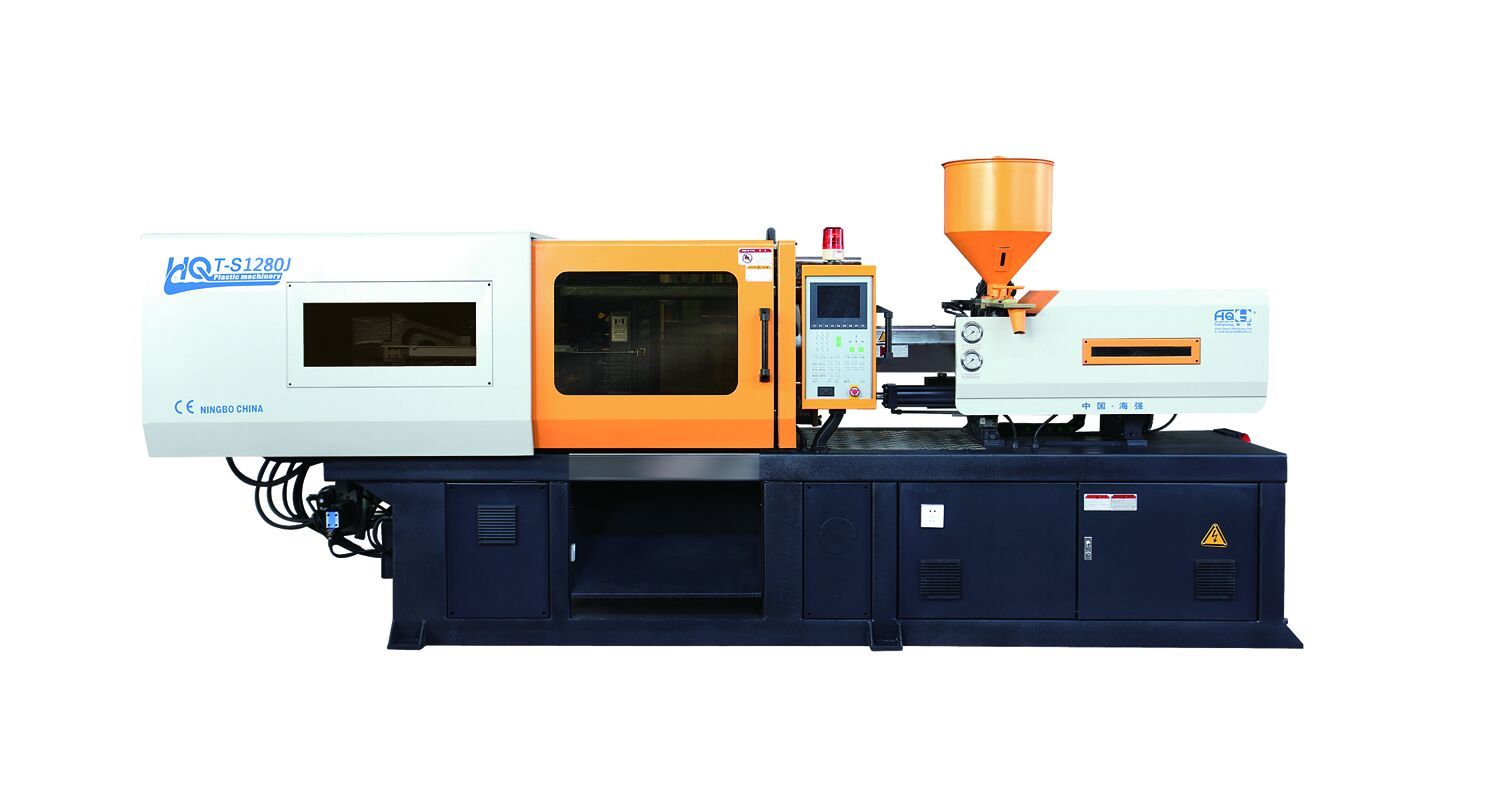

HQT-J serie High Precision Injection Machine

—— Adopt motor and pump of large power, increasing injection speed and precision.

—— Improved oil circuit , enables quick and accurate response of action

—— Special screw with excellent plasticizing capacity, guarantees the best moulding effect.

—— Various unique designs meet perfectly the requirements of fabrication such as high precision, short forming time, thin wall ect.

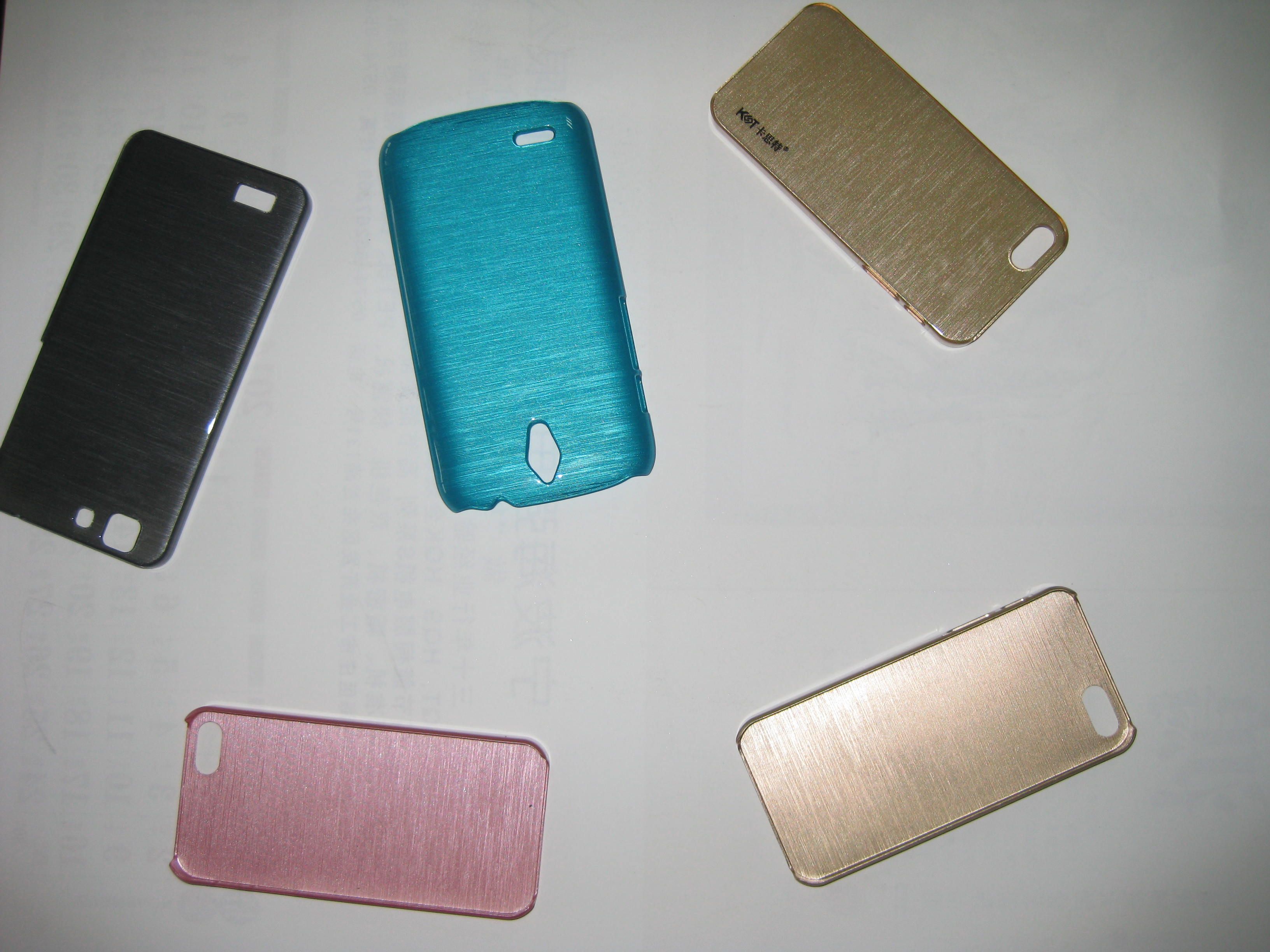

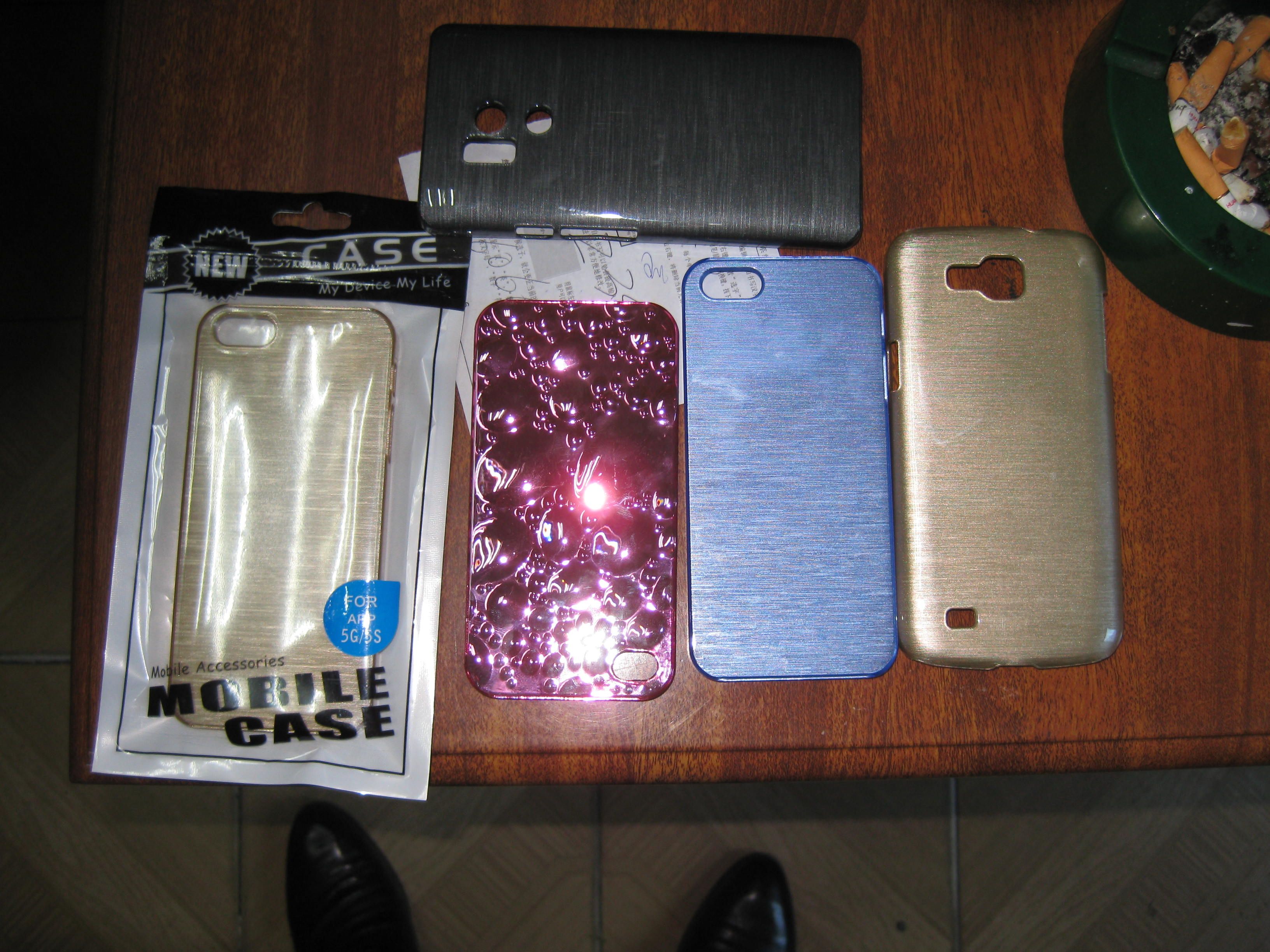

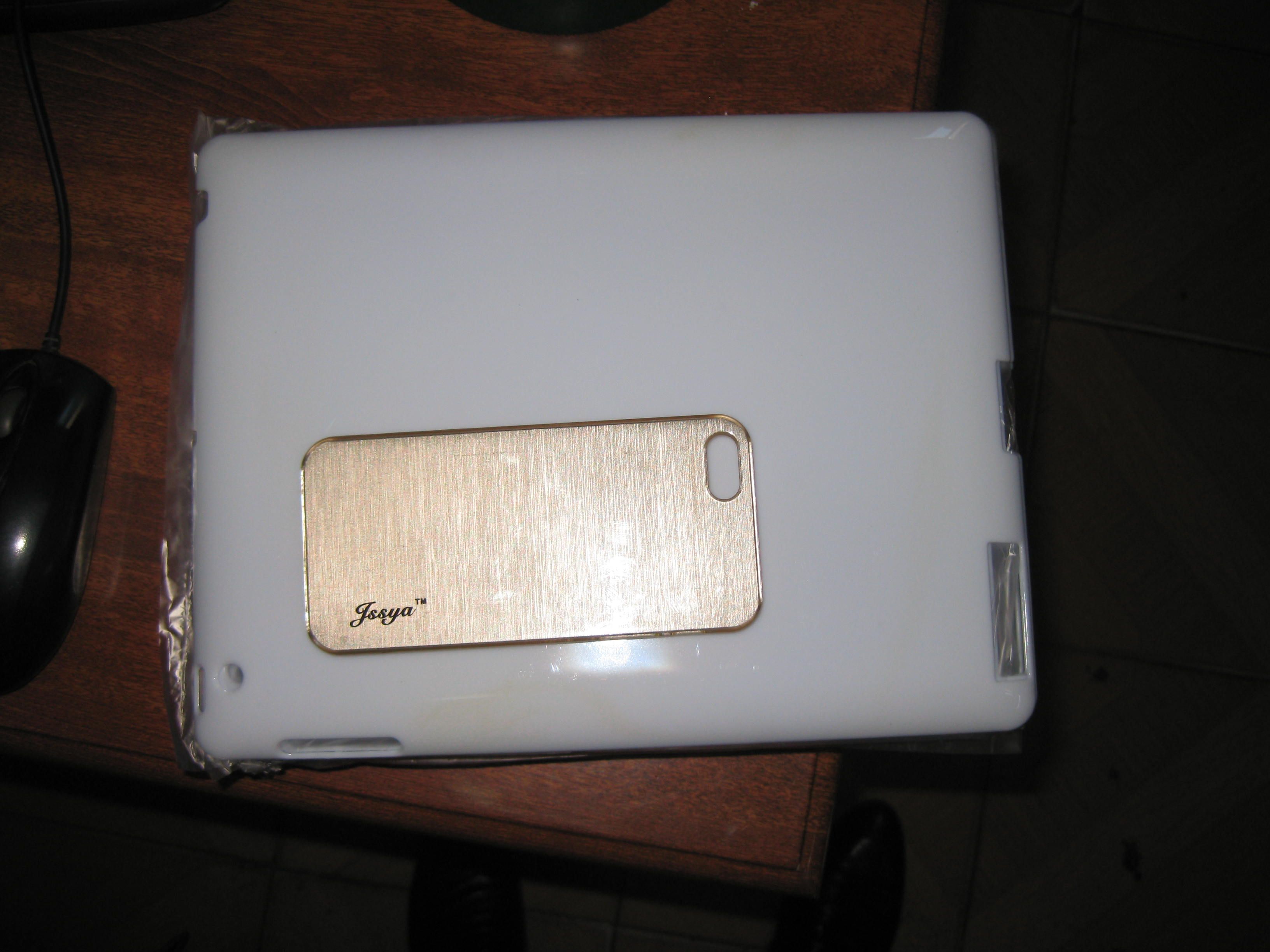

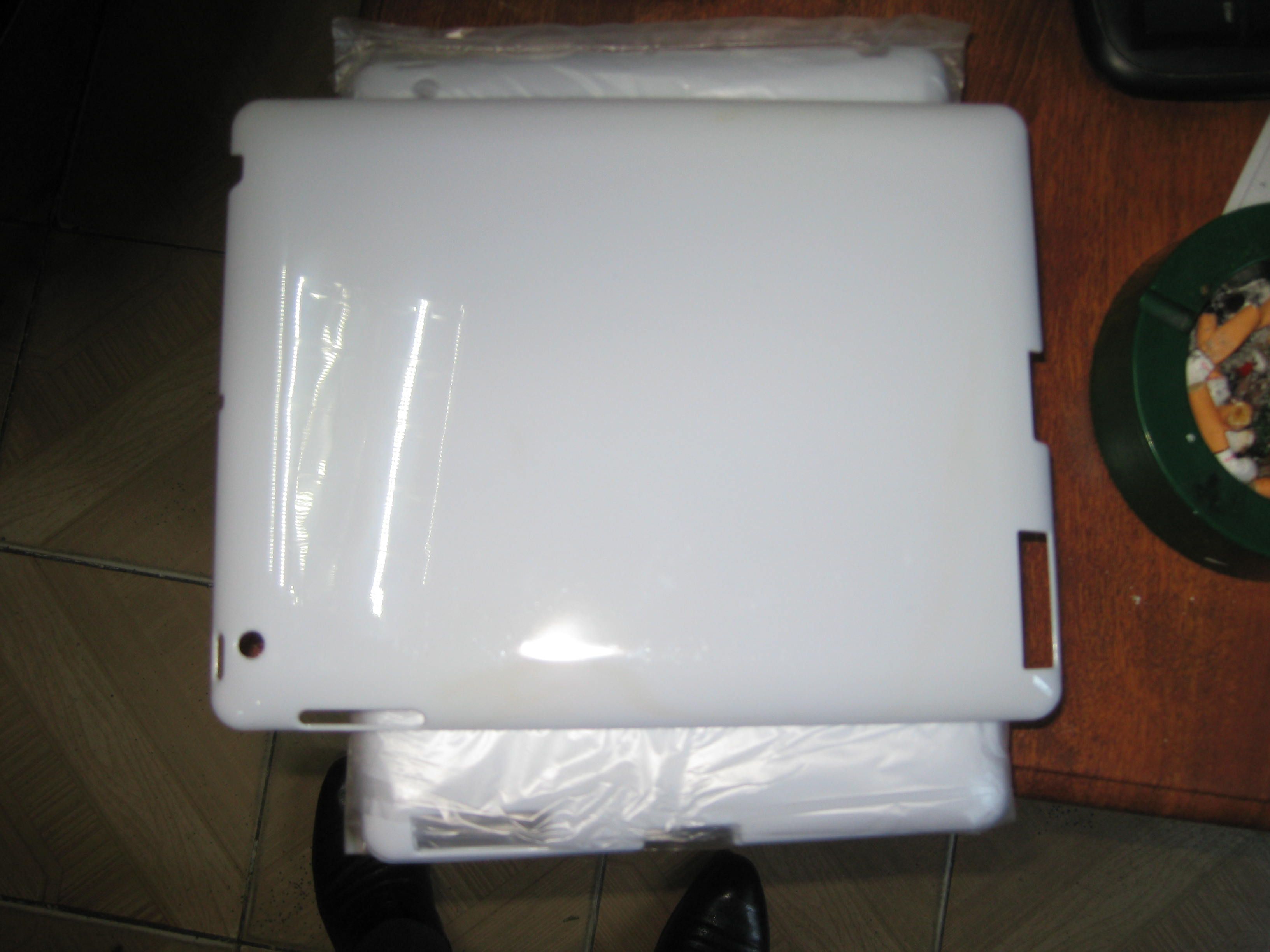

Product Show ( widely used in electric gadget industry such as cellphone cases ect. )

Item	UNIT	HQT1280J
INJECTION UNIT
Screw Diameter	mm	30
Screw L/D Ratio	L/D	22.7
Shot Volume(Theoretical)	cm3	127.9
Injection Weight(PS)	g	116
Plasticizing Capacity(PS)	g/s	10.6
Injection Speed	mm/s	93
Injection Rate	g/s	107.6
Injection Pressure	Mpa	320
Screw Speed	r/min	0-180
CLAMPING UNTI
Clamping Tonnage	KN	1280
Toggle Stroke	mm	350
Space Between Tie Bars	mm	410*410
Turn Plate Diameter	mm
Max.mould Height	mm	430
Min.mould Height	mm	150
Ejector Stroke	mm	120
Ejector Tonnage	KN	38
Ejector Number	PC	5
Distance Between Moulds Positing Centers	mm
OTHERS
System Pressure	Mpa	16
Pump Motor Power	KW	13
Heater Power	KW	7.2
Machine Dimension(LWH)	m	4.291.421.84
Oil Tank Capacity	L	223
Machine Weight	T	4.2
