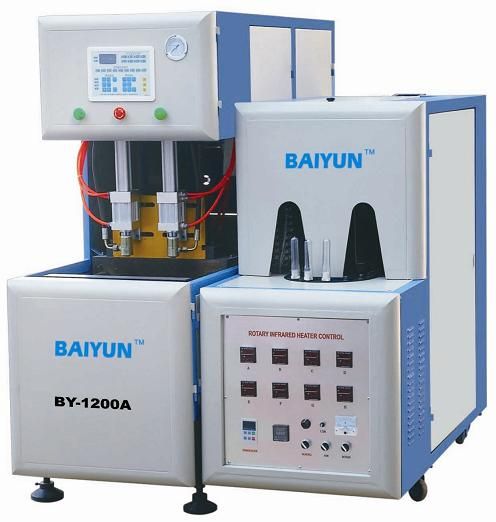

BY-1200 A sopladora semi automatica

Release time：2020-10-08 08:15viewed：times

Para todo tipo de botella de PET, de 20 ml a 2000 ml, ampliamente utilizado para agua mineral, bebida gaseosa, pesticida, envases cosméticos y uso medicina de materia prima tales como PET, PP, PMMA, PC, PS ect.
Equipada con Sistema de PLC de alta eficiencia. Calentadors infrarrojos y control PID de temperatura preciso de horno. tiene area de molde mas espaciosa para soplar envases de volume mayor. menos ruido en trabajo y facil de mantenimiento y operacion.

MODEL		BY-1200 A
CATEGORY	Machine Type	Semi-automatic Blow Molding Machine
Theoretical output	__	800-1000pcs/h(500ml)
Theoretical output	__	500-700pcs/h(1500ml)
MOULD	Max. Container Volume	1500ml (2 cavities)
	cavities no.	1or2 cavities
	Max. Container Diameter	150MM
	Max. Container Height	430MM
	Mould plate dimension (L*H)	490*420MM
	Mould thickness	300MM
	Mould opening stroke	170MM
	Max. Stretching stroke	450MM
	Clamping force	280KN
ELECTRICAL	Power	220~380V , 3φ , 50~60Hz
	Heating Power	7.6KW
	Working Pressure	0.8Mpa
	Blowing Pressure	3.0Mpa
MACHINE	Machine Dimension (LWH)	17006101800MM
	Pre-heater Dimension (LWH)	18007001500MM
	Machine weight	850Kg
	pre-heater weight	200Kg
AUCHILIARY DEVICES	1 set High pressure air compressor	1.2M3/3.0Mpa/15Kw
	1 set Air dryer	1.0M3/3.0Mpa/3.75KW
	2 Pics Air filter	1.0m3/3.0Mpa
