industrial chiller

Release time：2020-10-07 11:12viewed：times

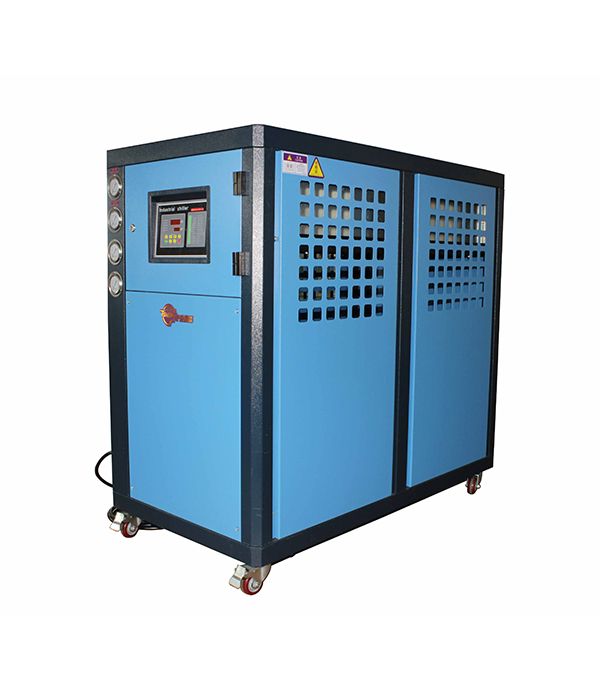

industrial chiller

Compressor is used "COPELAND" brand which made in the USA.The inside safety protection can guarantee the long lasting of the chiller well.The pump is used made in Taiwan and all parts of cooling system are imported from the USA.Mexico.Denmark and Japan.
·Equipped with shellpipe condenser and stainless steel cased evaporator,which are quite easy to be cleaned and maintained.Equipped with automatic water supply device in the water-tank.Air cooled cased chiller with board type evaporator is suitable for the district of lack of water resource and district of poor water quality.
·Larger than models are assembled 2 sets or 4 sets of compressors,so they are able to used as separate or together to reduce the resource waste.
·Complete with safety protection and error indication system,including compressor over load protection,pump over load protection,high pressure and low pressure protection and phase failure protection.
·Equipped with figure intellectualized temperature controls,which can accurately measure and control water temperatuer within the range of 5℃~35℃.

AIR COOLED INDUSTRIAL CHILLER

Technical Parameters
Specifications	FY-03AC	FY-05AC	FY-08AC	FY-10AC	FY-12AC	FY-15AC	FY-20AC	FY-25AC	FY-30AC	FY-40AC	FY-50AC
Cooking capacity(Kacl/h)	6800	12040	19000	25200	34400	37000	45000	54000	76600	92800	113000
Compressor	Hermetic scroll type						Hermetic scroll type
Compressor power	2.5	4.4	7	9	10.2	13.4	18	20.4	26.8	35	40
Refrigerant	R22(R407,R502Environmental protection type)						R22(R407,R502Environmental protection type)
Chilled water pump power(Kw)	0.75	0.75	0.75	0.75	1.5	1.5	2.2	2.2	4	7.5	7.5
Max flow of chilled water(L/min)	55	120	120	200	400	400	400	400	400	600	600
Max pressure(M)	9	9	9	16	20	20	30	30	50	55	55
Inlet and outlet pipe of	1"	1"	1"	1.5"	1.5"	1.5"	2"	2"	2"	3"	3"
chilled water(")	1"	1"	1"	1.5"	1.5"	1.5"	2"	2"	2"	3"	3"
Cooling fan power(Kw)	0.25	0.5	0.5	0.5	0.5	1	1	1.5	1.5	3.2	3.2
Size:length	850	850	1350	1350	1350	1450	1800	1950	1950	2000	2100
Size:width	650	600	850	850	850	1350	1400	1600	1600	1200	1300
Size:height	960	1000	1500	1500	1500	1200	1250	1570	1600	2100	2100
Water tank capa.(L)	53	88	120	200	200	4060	300	380	No water box(dry-type)
Weight(kg)	180	240	300	360	500	460	680	700	820	1100	1340
