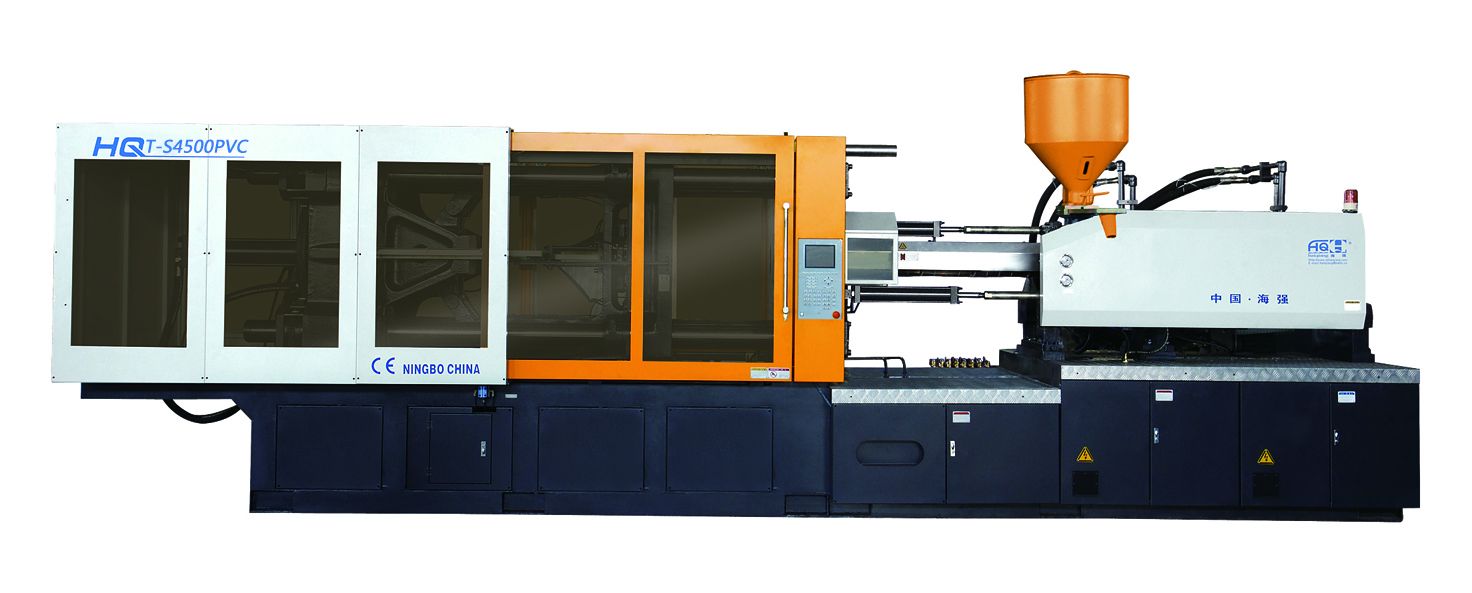

HQT-4500 PVC injection molding machine

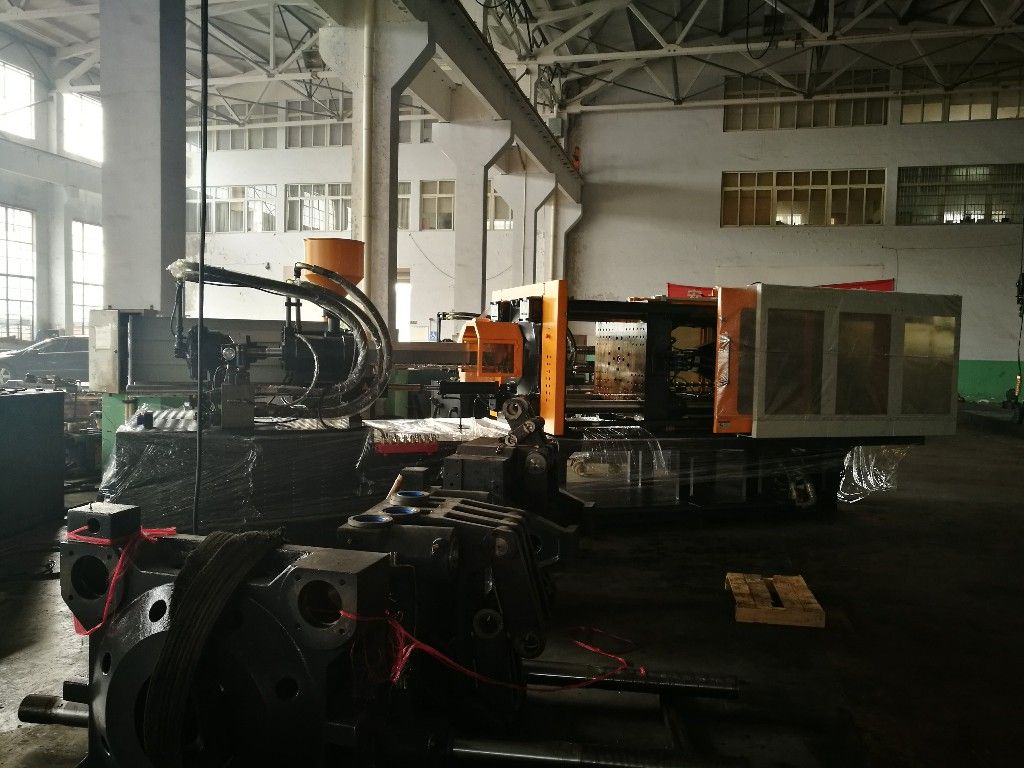

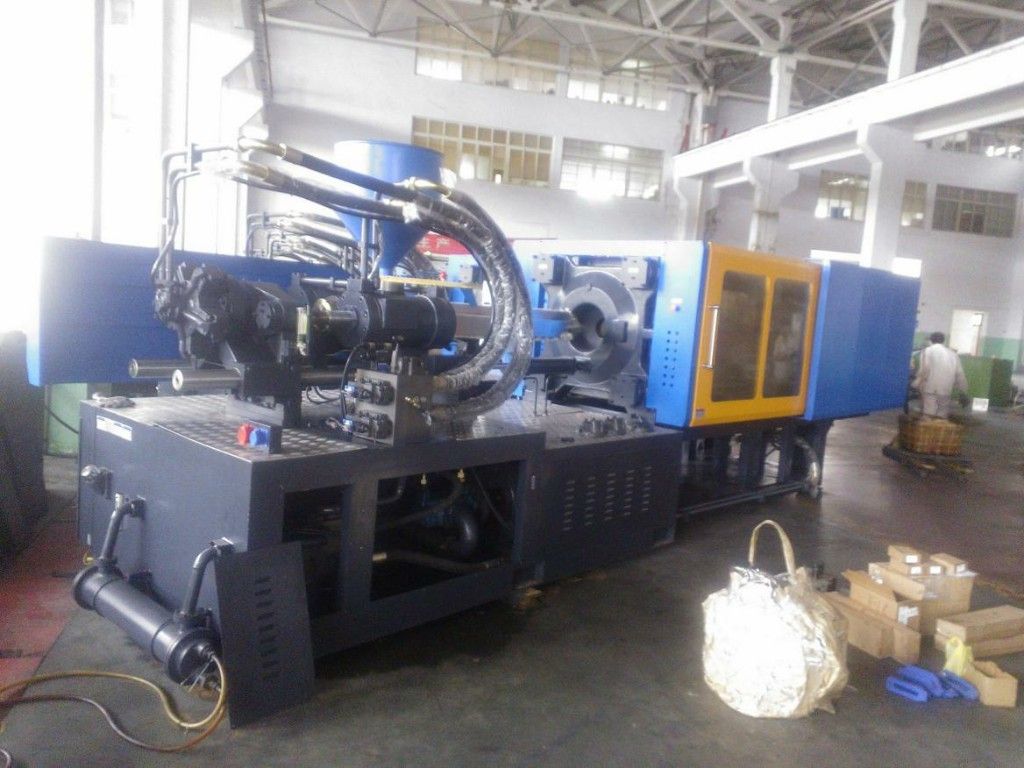

HQT-4000 injection molding machine sent to Philipean customer of home appliance manufacturer.

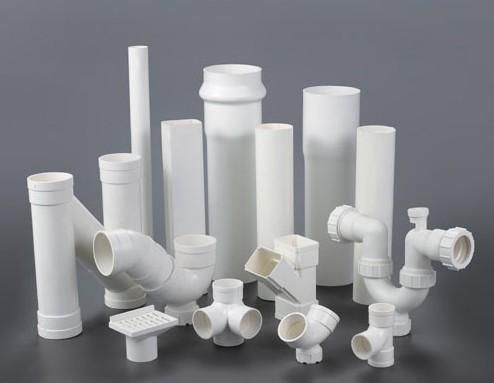

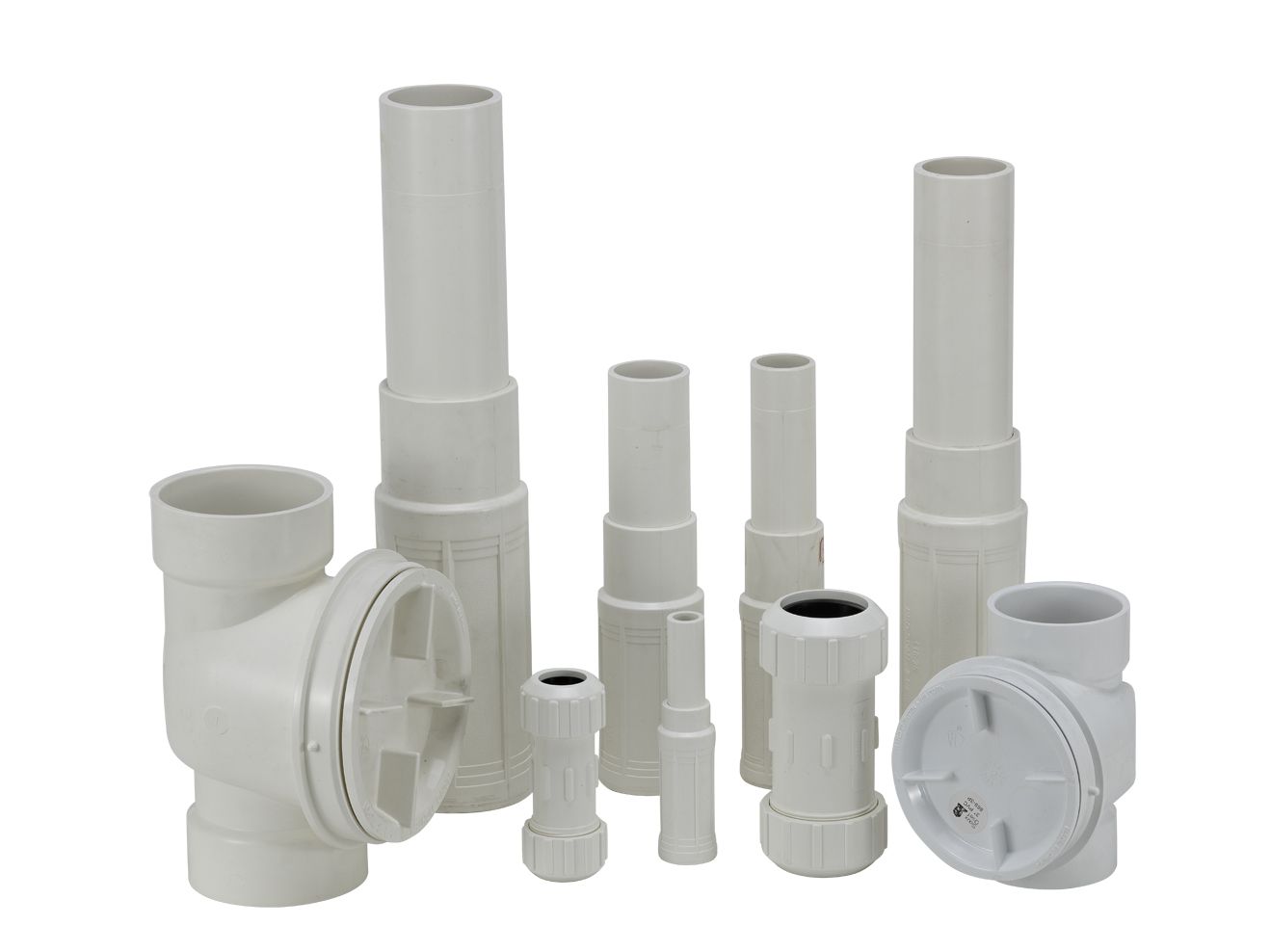

HQT-PVC Serie PVC Fitting Injection Machine
——Air cooling device with quick response and accurate temperature control, avoid degradation of PVC in barrel.
——Bimetal screw with high corrosion resistance and rigidity, ideal for PVC powder material.
——Extra spacious mould area, suitable for long core pulling and multi-core pulling
——Enlarged plasticizing motor and special injection system, make sure plasticization is complete and even.
|
Item |
Unit |
HQT-450 |
|
INJECTION UNIT |
|
A |
B |
C |
|
Screw Diameter |
mm |
75 |
80 |
85 |
|
Screw L/D Ratio |
L/D |
21.3 |
20 |
18.8 |
|
Shot Volume(Theoretical) |
cm3 |
1643 |
1870 |
2111 |
|
Injection Weight(PS) |
G |
1496 |
1702 |
1921 |
|
Plasticizing Capacity(PS) |
g/s |
45.0 |
56.2 |
62.3 |
|
Injection Rate |
g/s |
394 |
448 |
506 |
|
Injection Pressure |
Mpa |
173 |
152 |
135 |
|
Screw Speed |
r/min |
150 |
|
CLAMPING UNIT |
|
|
|
Clamp Tonnage |
KN |
4500 |
|
Toggle Stroke |
mm |
740 |
|
Space Between Tie Bars |
mm |
780×780 |
|
Min.Max. Mould Height |
mm |
300-780 |
|
Ejector Stroke |
mm |
200 |
|
Ejector Tonnage |
KN |
125 |
|
Ejector Number |
|
13 |
|
OTHERS |
|
|
|
System Pressure |
（mpa） |
16 |
|
Pump Motor Power |
（kw） |
45 |
|
Heater Power |
（kw） |
23.6 |
|
Machine Dimension(L×W×H) |
m |
7.79×2.2×2.75 |
|
Oil Tank Capacity |
L |
1217 |
|
Machine Weight |
Tonelada |
19
|
