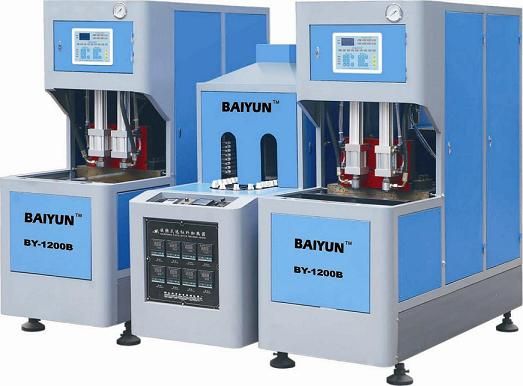

BY-1200 B semi auto blow machine

Release time：2020-10-07 11:16viewed：times

BY-1200 B semi auto blow machine

For all kinds of PET bottle, from 20 ml to 2000 ml , widely used for mineral water, soft drift and cosmetic containers.
It has PLC system with high efficiency. PID temperature precise control system and infraray heater
Improved mechanical structure with more spacious mold area and providing stronger clamping force, and design of high pressure protection of mold.
Fewer noise in operation and easy maintainence

MODEL		BY-1200 B
CATEGORY	Machine Type	Semi-automatic Blow Molding Machine
Theoretical output	__	1600-2000pcs/h(500ml)
Theoretical output	__	1600-2000pcs/h(500ml)
MOULD	Max. Container Volume	2000ml(4 cavities)
	cavities no.	1or2 cavities
	Max. Container Diameter	100MM
	Max. Container Height	330MM
	Mould plate dimension (L*H)	490400MM60MM
	Mould thickness	300MM
	Mould opening stroke	165MM
	Max. Stretching stroke	380MM
	Clamping force	150KN
ELECTRICAL	Power	220~380V，3φ50~60Hz
	Heating Power	10KW
	Working Pressure	0.8Mpa
	Blowing Pressure	3.0Mpa
MACHINE	Machine Dimension (LWH)	16006101600MM
	Pre-heater Dimension (LWH)	18005501500MM
	Machine weight	450Kg
	pre-heater weight	300Kg
AUCHILIARY DEVICES	1 set High pressure air compressor	1.2M3/3.0Mpa/15Kw
	1 set Air dryer	1.0M3/3.0Mpa/3.75KW
	2 Pics Air filter	1.0m3/3.0Mpa
